Connecting the DS500 to a Computer System

If the DS500 is the last SCSI device on the SCSI bus, it will require the appropriate termination

for the I/O connector. Refer to Figure 13 below for typical single and multiple host external

SCSI connections.

Follow the directions that came with your computer system for cabling an external SCSI device

to that system.

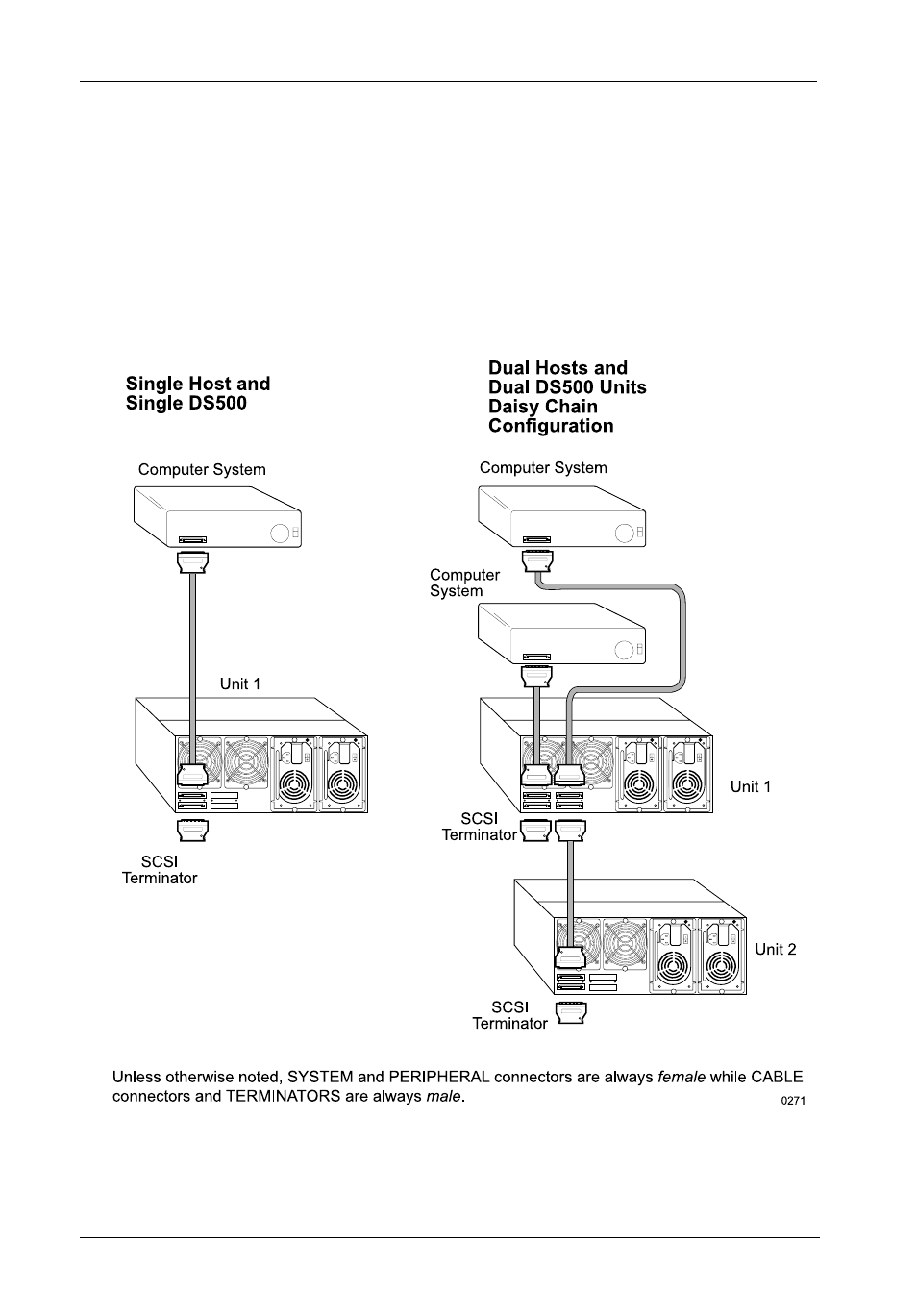

Figure 13: External SCSI Cable Connections
