Page 24
16
Installation
StorCase Technology, Inc.
DS500 User's Guide - Rev. E00

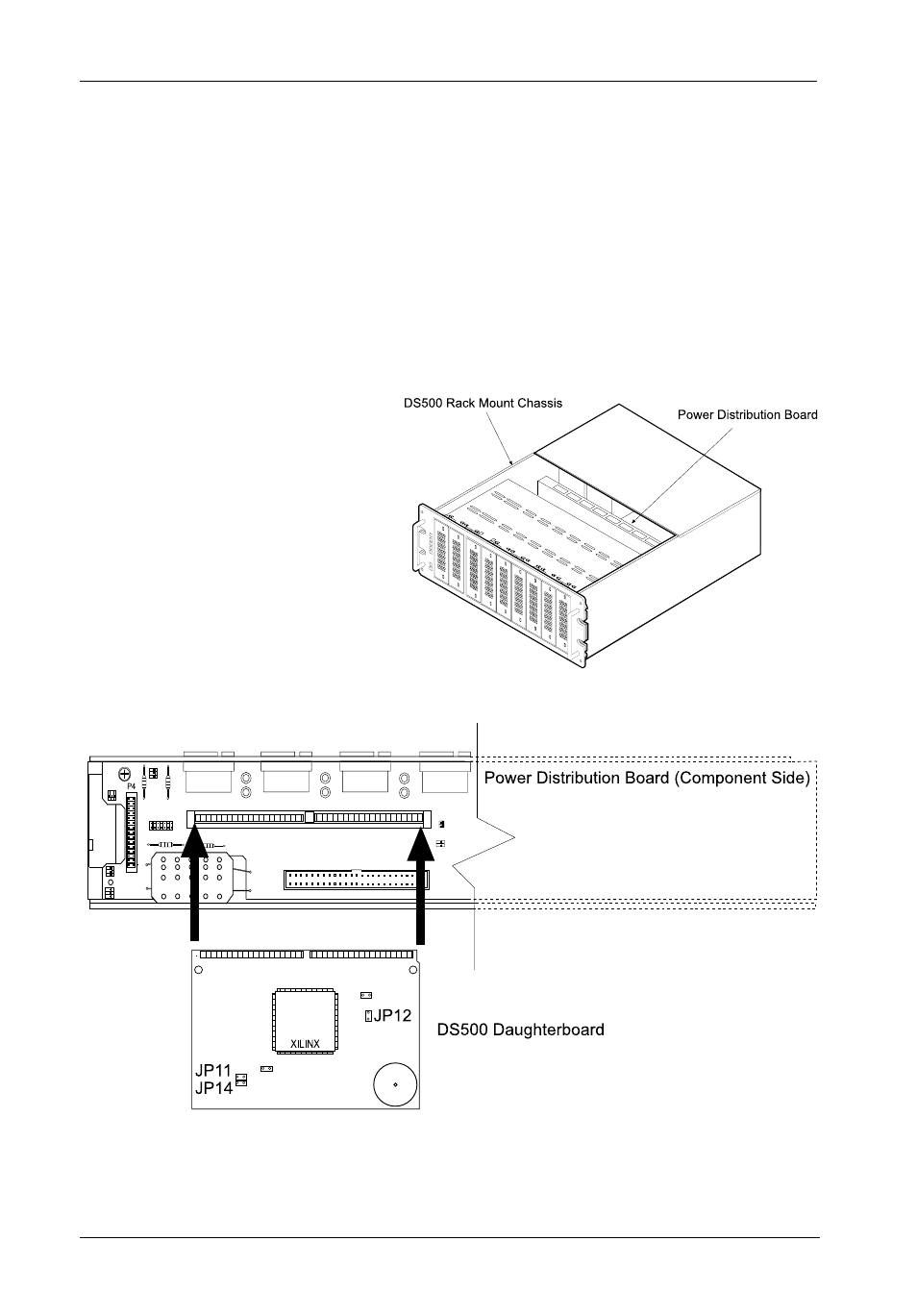

Figure 15: DS500 Daughterboard
DS500 Daughterboard Jumpers
Depending on which revision of the DS500 chassis was purchased (hardware revision
number can be found on the product identification label), either 0, 1, or 3 jumpers must be
installed on specific pins to provide appropriate cooling fan signal levels.
Hardware Revision Number:
G00 through H01 Jumpers required on JP11, JP12, and JP14
H02 Jumper required on JP12
H03 and higher No jumpers required
