Introduction
5
Rear Panel
(Figure 4)
Cooling Fans - Four (4) back panel cooling fans provide high power cooling and ample
chassis ventilation.
SCSI I/O Connectors - The Data Silo DS400 can be equipped with 50-pin MM (HD50),
68-pin HD, or 68-pin VHDCI connectors (used for SCSI Ultra2 and Ultra160). Up to eight
(8) SCSI channels are supported.
A/C Power In - Accepts U.S. and other available international standard power cables.
Power Supply LED Indicator- Illuminates while power supply is on and function-
ing normally.
Diagnostic Connector- Provides DS400 system status for diagnostic testing.
Provides signals for
Power Supply Status
Fan Failure
Over Temperature Condition
Molex 3.00mm (0.118") pitch Micro-Fit plug (P/N 43020) provided on DS400 back panel.
Molex 3.00mm (0.118") pitch Micro-Fit receptacle (P/N 42025) required for mating
connection. The above signals are active low and require a 10K pull-up resistor.

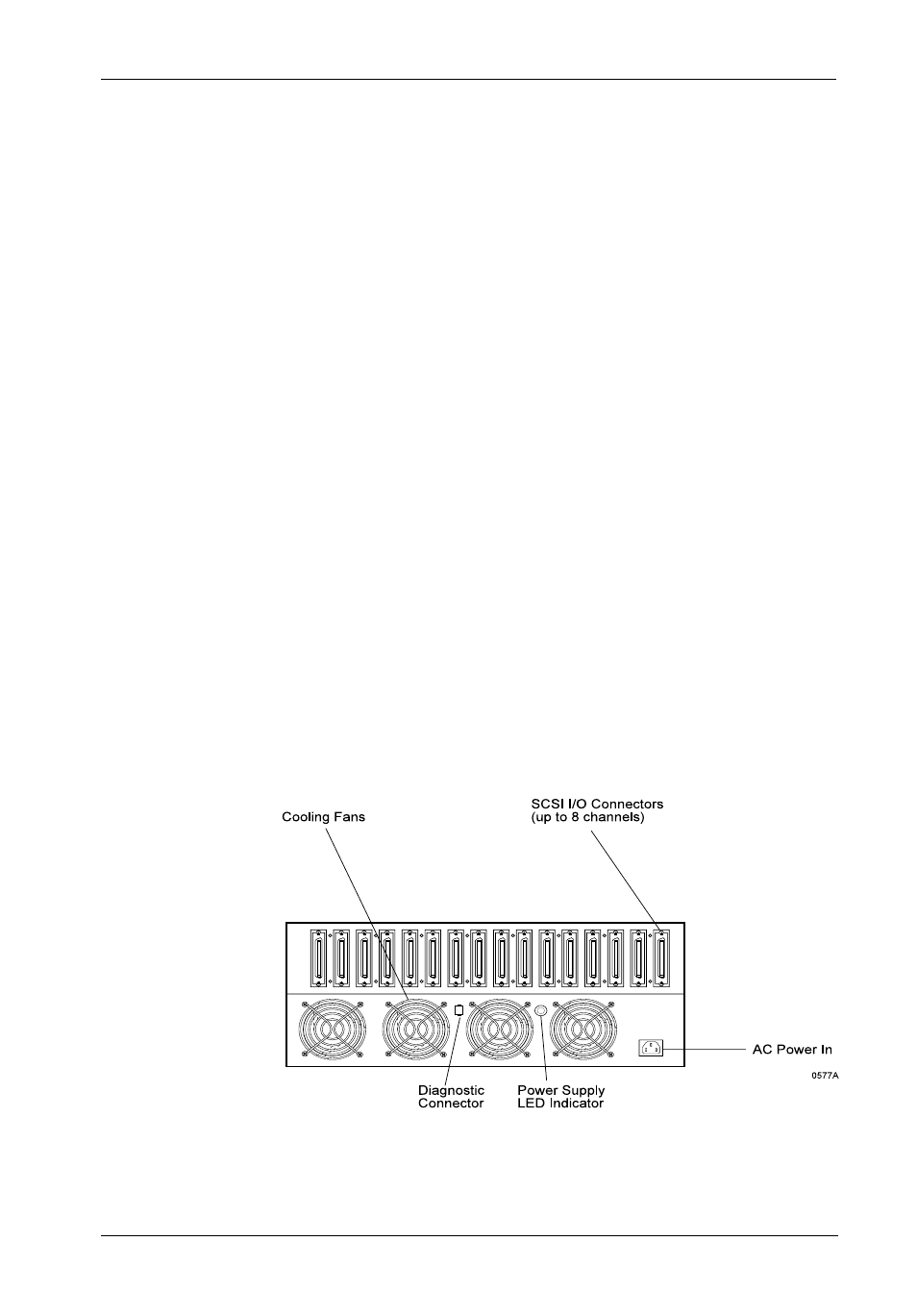

Figure 4: DS400 Rear Panel
