StorCase Technology DS100 User Manual
Page 22
DS100 User's Guide - Rev. F02
StorCase Technology, Inc.
Installation
13
0541
ID Select Cable
Power Connector
I/O Cable
5.25" Drive
Mounting Bracket
SCSI ID
FACT
OR
Y
NEW
WARNING

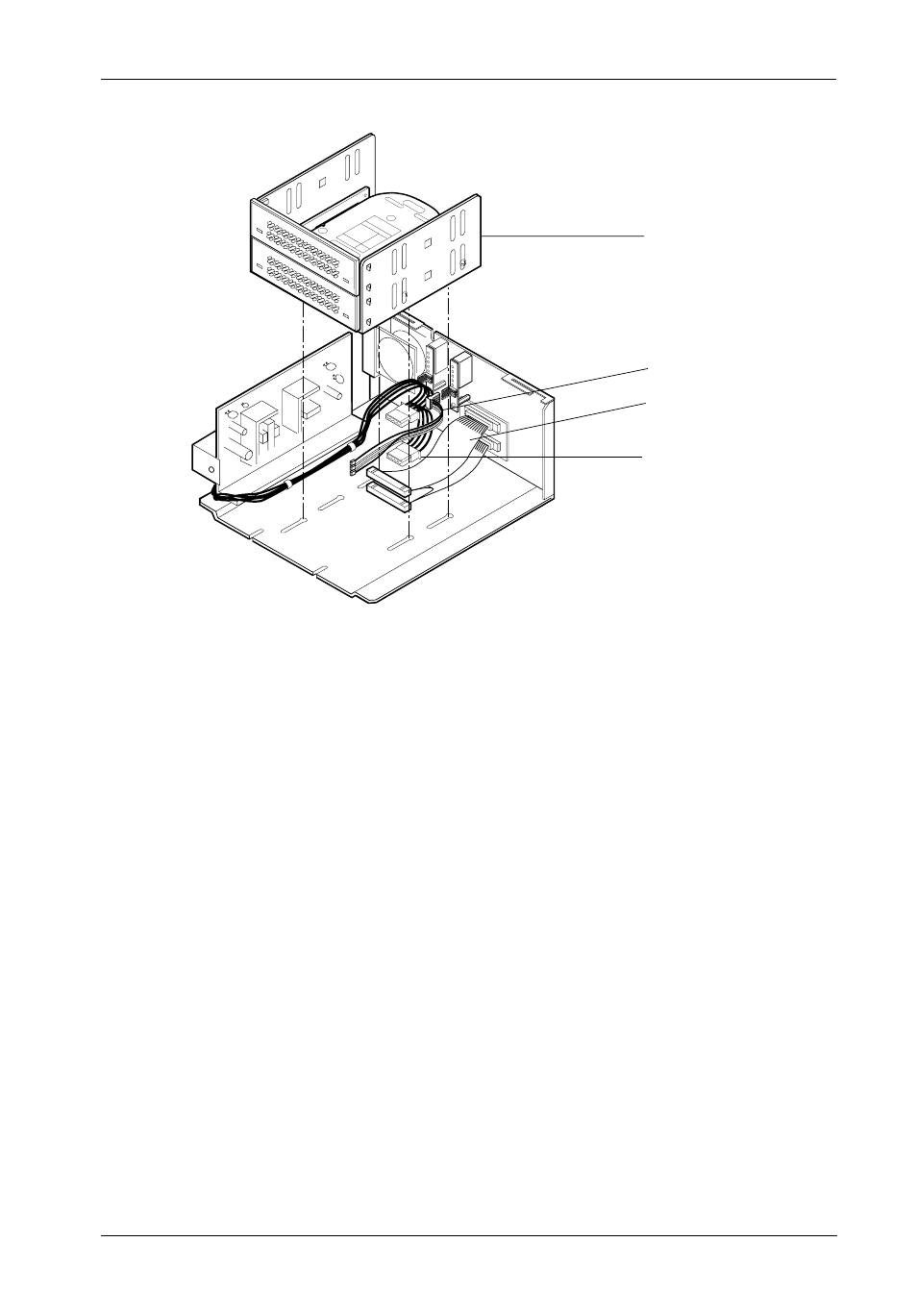

Figure 13: Installing the DS100 2-Bay Drive Mounting Bracket
11. Connect the 4-pin DC power cable(s) from the DS100 to the drive(s).
12. Connect the ID select cable to the ID select interface connector on the rear panel of
the DS100 (Figures 7 & 8).
NOTE: Use the provided tie wraps included in the installation kit to prevent the power and
ID select cables from possible contact.
13. If necessary, reinstall the DS100 cover to check for proper drive bezel/cover alignment
and make any necessary adjustments.
14. Tighten the screws that fasten any removable media device(s) into the mounting
bracket.
15. Tighten the screws that fasten the drive mounting bracket to the chassis.
16. Reinstall the DS100 cover and fasten all screws.
17. Connect the power cable to the DS100 and turn on the power switch. Should there
be any unusual sound, turn the DS100 off immediately, disconnect the power cable,
and remove the cover to locate the source of the problem. Verify that the power and
ID select cables are securely fastened with the provided tie wraps and are not
contacting the fan. Replace the cover.
