Installation 11
0540
1
2
S1
S2
Drive Mounting
Bracket Screws
(4 Plcs)
Drive Mounting
Bracket

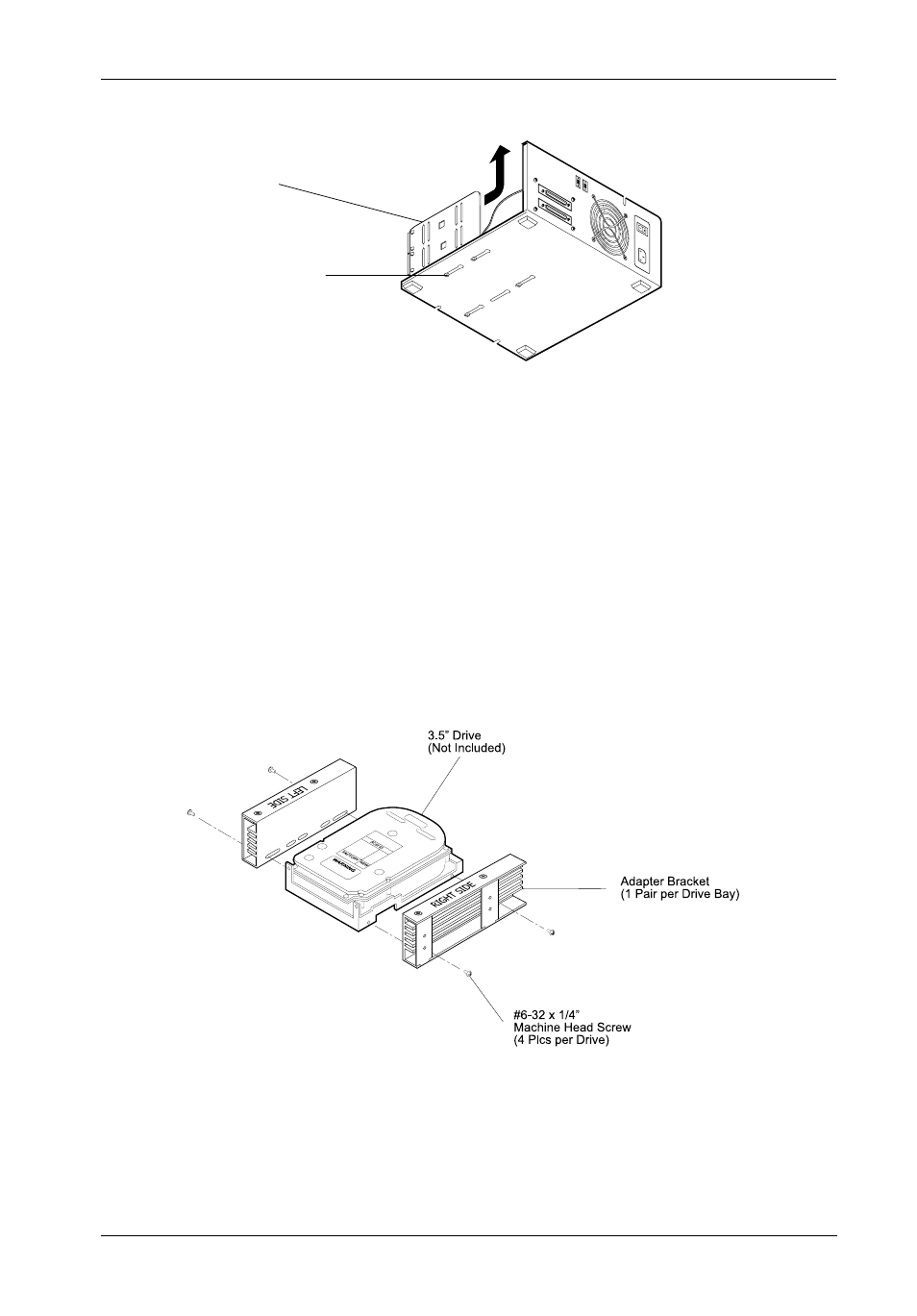

Figure 11: Attaching the 3.5" Adapter Brackets to the Drive
Figure 10: Removing the Drive Mounting Bracket
(DS100 2-Bay Shown)
5. If installing any 3.5 inch devices into the DS100, attach the 3.5" adapter brackets
(included) to the drives before installing them into the drive mounting bracket (Figure
11). The adapter brackets can be attached to the drive with four (4) #6-32 Phillips
screws.
6. Attach the drive activity and drive fault LED cables to the appropriate drive pins (refer
to the device manufacturer's documentation for the location of these pins).
