16 Installation
StorCase Technology, Inc. DE110 for Backup User's Guide - Rev. A04

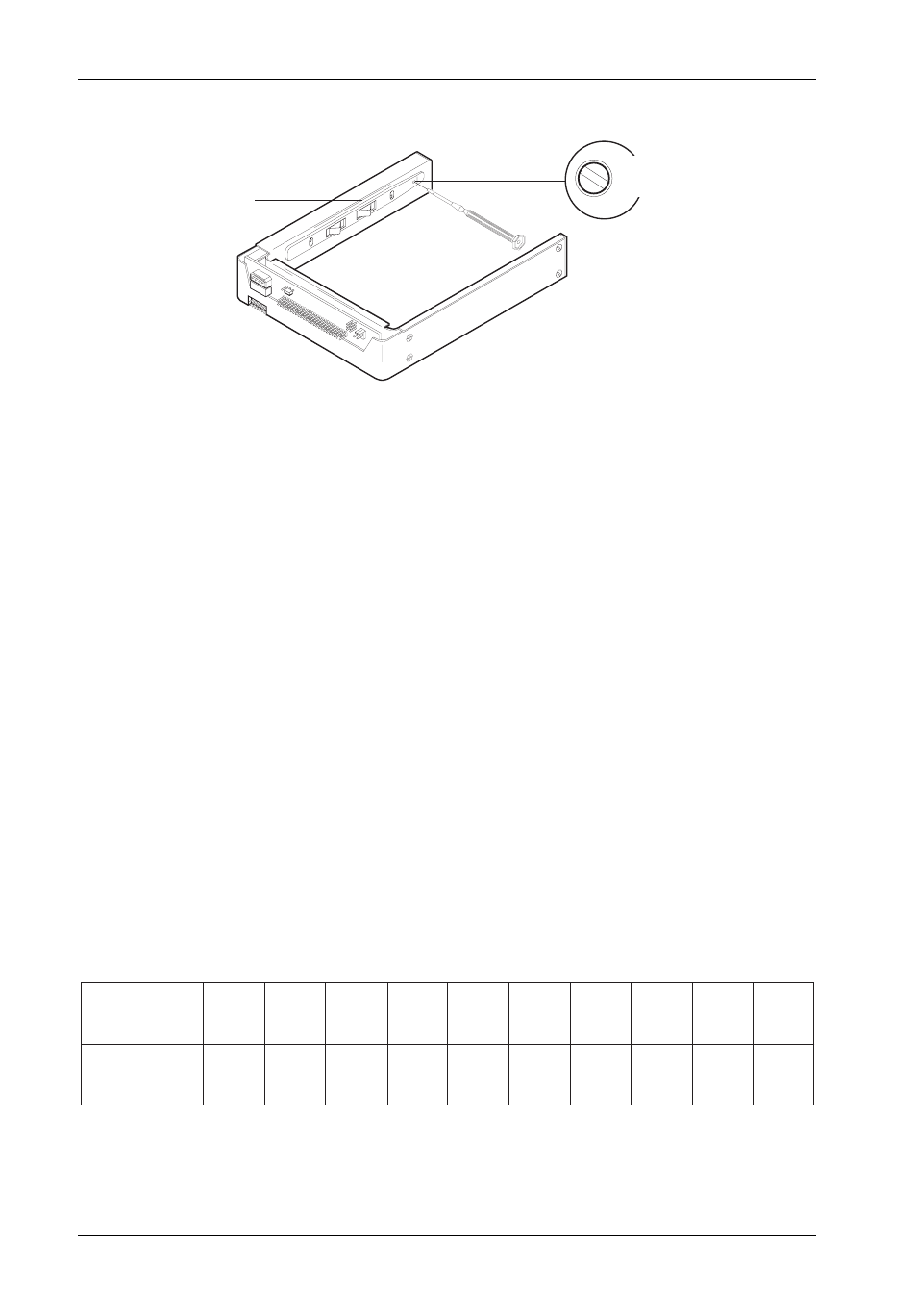

Figure 13: Unit ID Select Switch Location
Drive Carrier
Guide
Typical Data Express
Receiving Frame
0087a
Unit ID Select
Rotating Switch
Unit ID Select Switch Settings
NOTE: The unit ID number display is for ID display purposes only.
The following table lists the Unit ID Select Switch settings and the valid AT/IDE unit numbers.
Please note that all invalid switch settings will result in a blank display in the receiving frame
display window.
Table 1: Unit ID Select Switch Settings
Unit ID Select
Position
Unit ID Number
Display
0 5 4 3 2 1 8 7 6 9
0 Blank1 Blank Blank2 3 Blank Blank Blank
