4 Introduction
StorCase Technology, Inc. DE110 for Backup User's Guide - Rev. A04

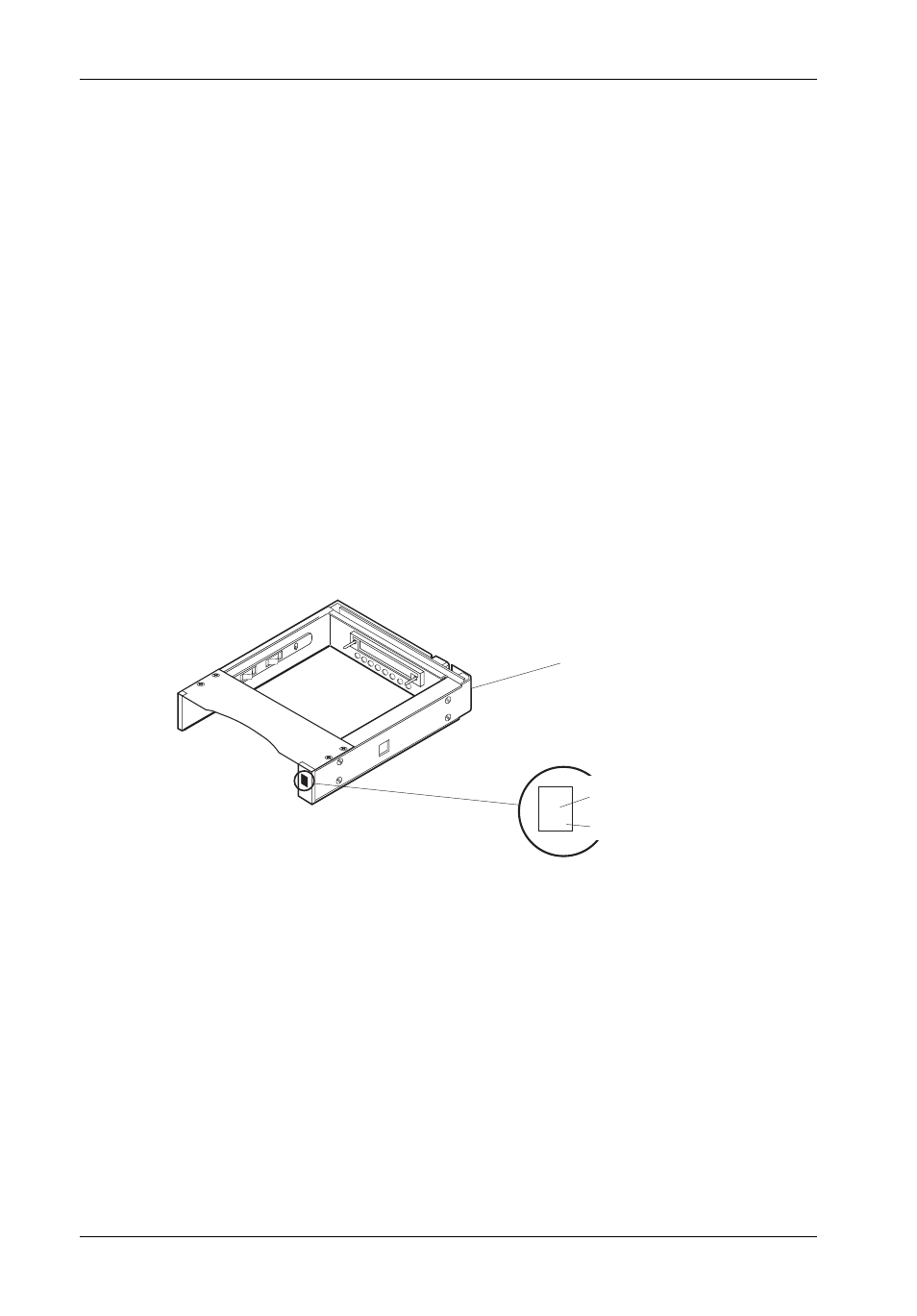

Figure 3A: Receiving Frame Front Panel
Receiving Frame Front Panel
(Figures 3A & 3B)
• Unit ID Number Indicator (Figures 3A & 3B) - This LED is for ID display purposes only.
The DE110 ID is shown if the carrier is Installed and Locked in the receiving frame or
if the carrier is removed from the receiving frame. If the carrier is Installed but not
Locked in the receiving frame, a "u" will be displayed to indicate an unlocked condition.
The unit ID number is selected by means of the unit ID select switch on the front of the
receiving frame using a special alignment tool supplied with the DE110 (Figure 13 & Table
1).
• The Activity Indicator (Figures 3A & 3B) - A small dot next to the unit ID number illumi-
nates to indicate when the host computer is accessing the data on the DE110 carrier.
This dot will flash during communication with the host computer.
2.
Unit ID Number
Indicator
Activity Indicator
0840
Receiving Frame
