2 Introduction
StorCase Technology, Inc. PATA DE50 User's Guide - Rev. E00
Package Contents
NOTES: Package contents may vary, depending on model.
Some DE50 models do not include a 5.25" adapter bracket.
The DE50 package contents include the following items. If any item is missing or damaged,
contact your StorCase dealer for a replacement.

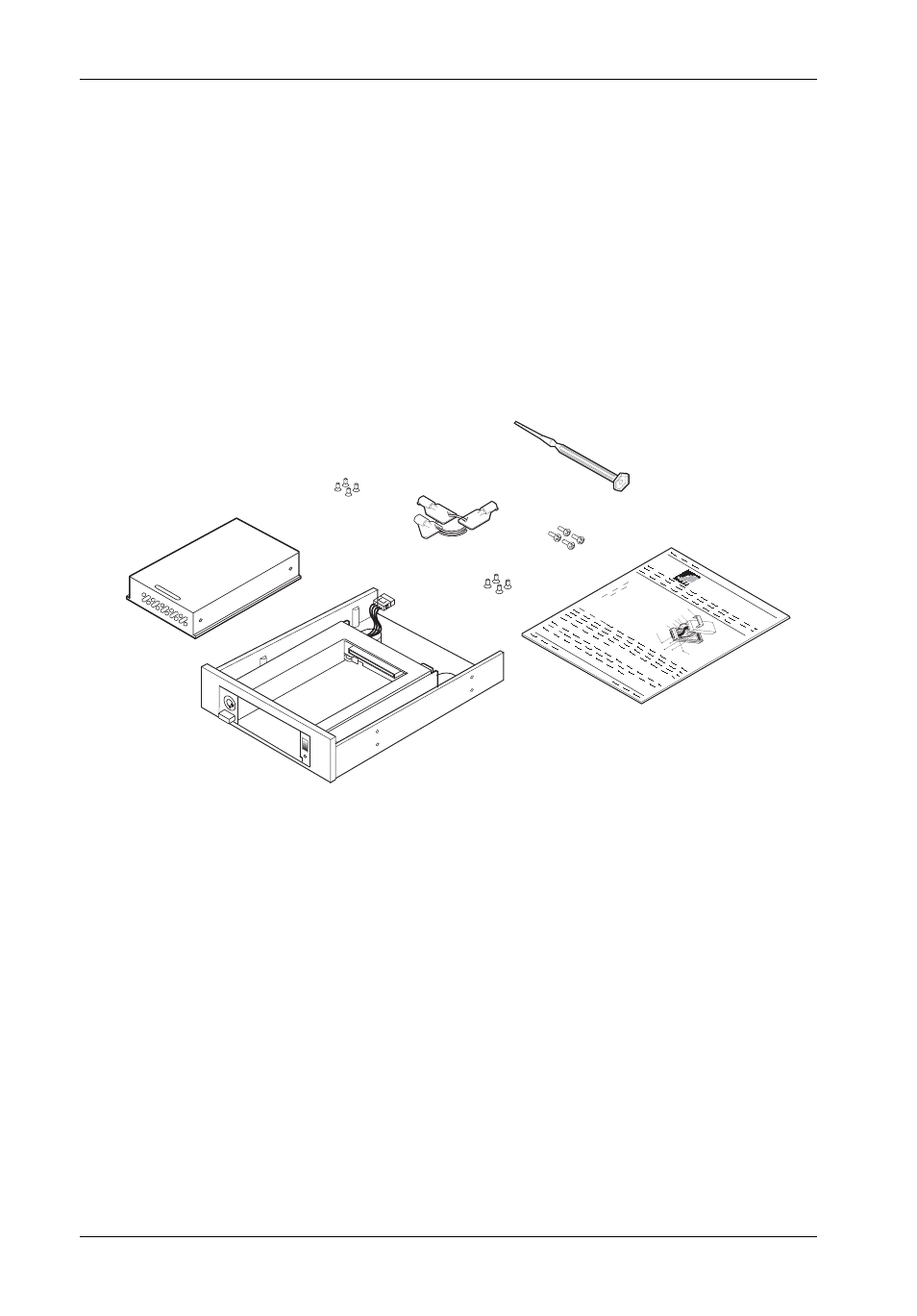

Figure 1: Package Contents
4. Drive Lock Keys
5. Self-Tapping Screws
6. M3 Phillips
Pan Hd. Screws
7. Alignment Tool
8. Insert Sheet
1. Drive Carrier
2. Receiving Frame
(shown with 5.25"
Adapter Bracket installed)
3. M3 Phillips
Flat Hd. Screws
Data E
xpres
s
Drive C arrier
Disk D rive (Not In cluded ) Power Cable I/O Ca ble
Drive M ountin g Hardw are (4 ea) Phillip s # 6-3 2 x
3/16 F lat HD
ID Sele ct Cab le
0151
Cable Cover (Provid ed)
Cable Cove r Screw s (2 plc s) # 6-32 x 3/16 Flat H D
0848
1
2
3
4
5
7
8
6
