12 Installation
StorCase Technology, Inc. PATA DE50 User's Guide - Rev. E00
Installing the Receiving Frame
NOTES: Use a #2 Phillips screwdriver for this procedure.
Some DE50 models do not include a 5.25" adapter bracket.
The drive should be installed into the carrier before installing the receiving frame into the
mounting bay of a computer or expansion chassis.
1. Turn OFF power to the computer.
2. Open the computer system according to the manufacturer’s instructions. If neces-
sary, temporarily remove any expansion boards that may make installation difficult.
3. For 5.25" peripheral slots, the 5.25” adapter bracket must be installed. The receiving
frame is side-mounted into the adapter bracket using four (4) M3 Phillips Pan Head
screws (provided), as shown in Figure 11.
With the drive carrier locked in place inside the receiving frame, install the DE50 into
the 5.25” drive opening in the computer or expansion chassis. Use the appropriate
guides to position the Data Express, and fasten it into place with four (4) self-tapping
screws provided. Mounting holes are provided on each side and the bottom of the
adapter bracket to accomodate a variety of mounting configurations. Use the
mounting holes which best suit the computer or expansion chassis configuration
(Figure 12).
4. Adjust the front of the receiving frame so the carrier slides freely in and out on the
receiving frame guides. The position of adjoining peripheral units may require ad-
justment.

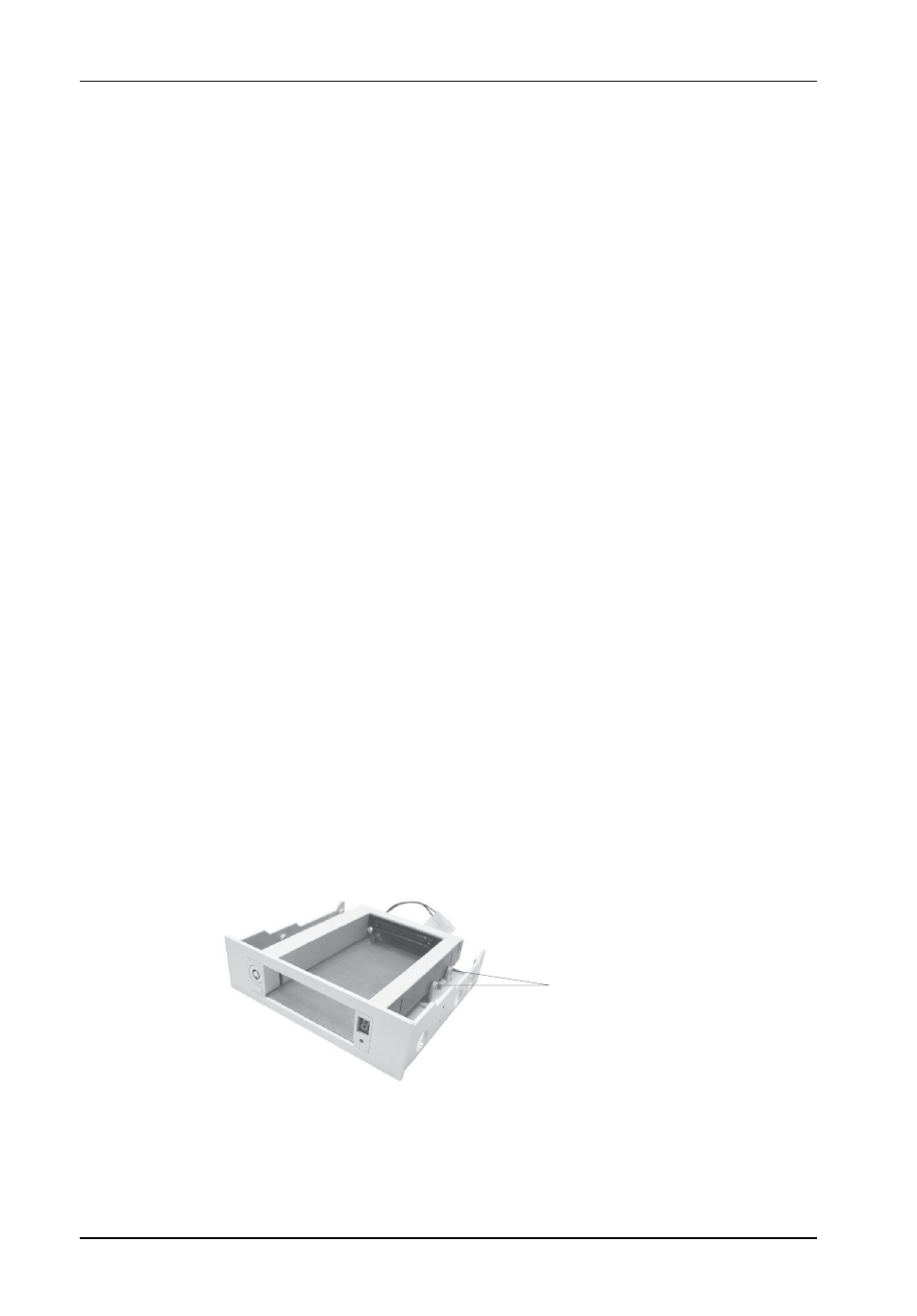

Figure 11: Installing the 5.25" Adapter Bracket
Secure with M3 Phillips
Pan Hd. Screws
(2 per Side)
0863a
