8 Installation
StorCase Technology, Inc. PATA DE50 User's Guide - Rev. E00

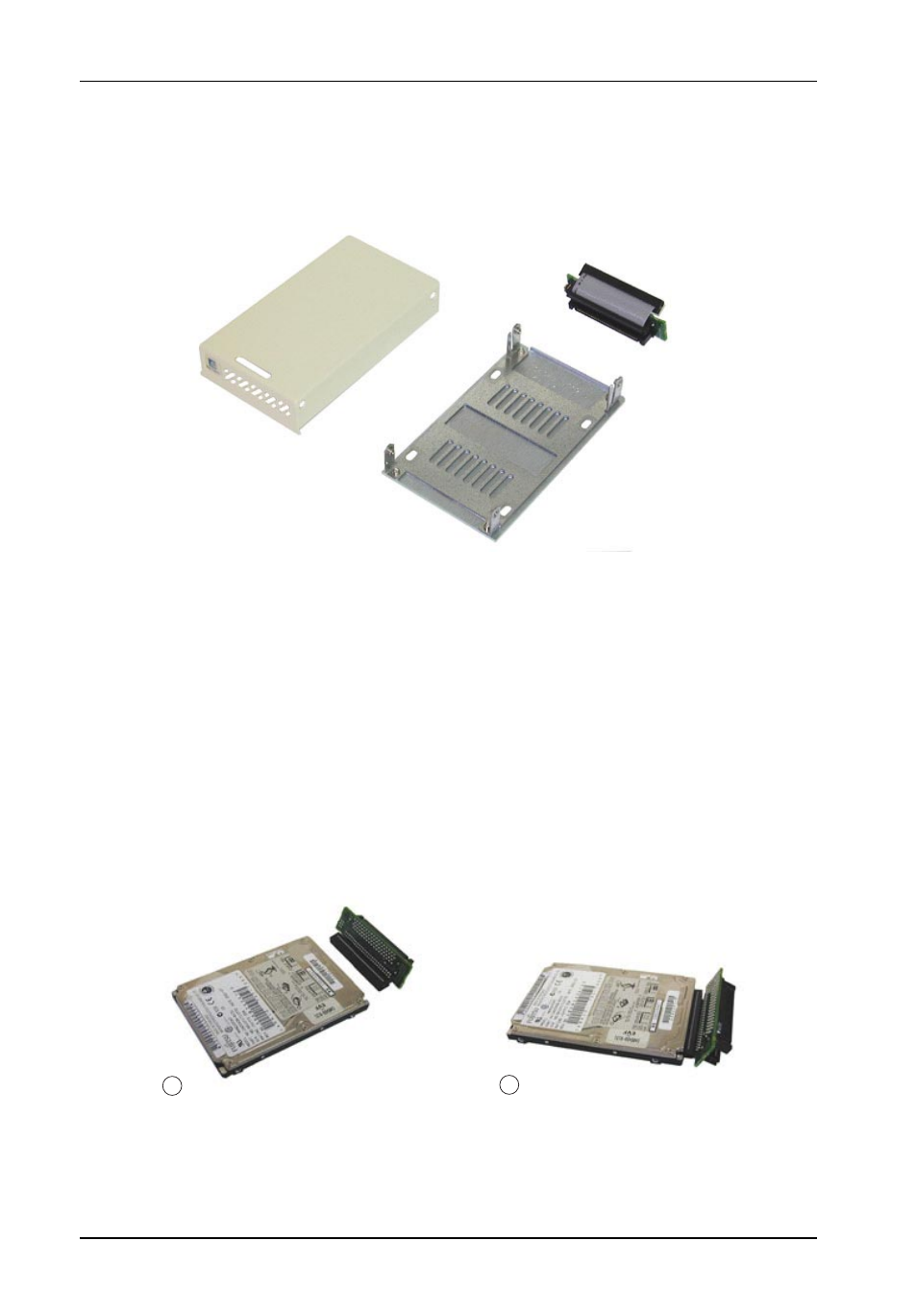

2. Disassemble the drive carrier unit into its three (3) main components as shown in
Figure 7 (the drive carrier unit is shipped pre-assembled).
Figure 7: Drive Carrier Components
3. Install the Drive Carrier Circuit Board (cable-side down) onto the drive by attaching
the I/O cable on the board to the drive (Figure 8).
Figure 8: Drive Carrier Circuit Board Installation
2.5” Drive
(Not Included)
Drive Carrier
Circuit Board
(Cable-side Down)
Drive with Circuit
Board Installed
1 2
Top
Cover
Drive Mounting
Bracket/Bottom Plate
Assembly
Drive Carrier
Circuit Board
