-8-

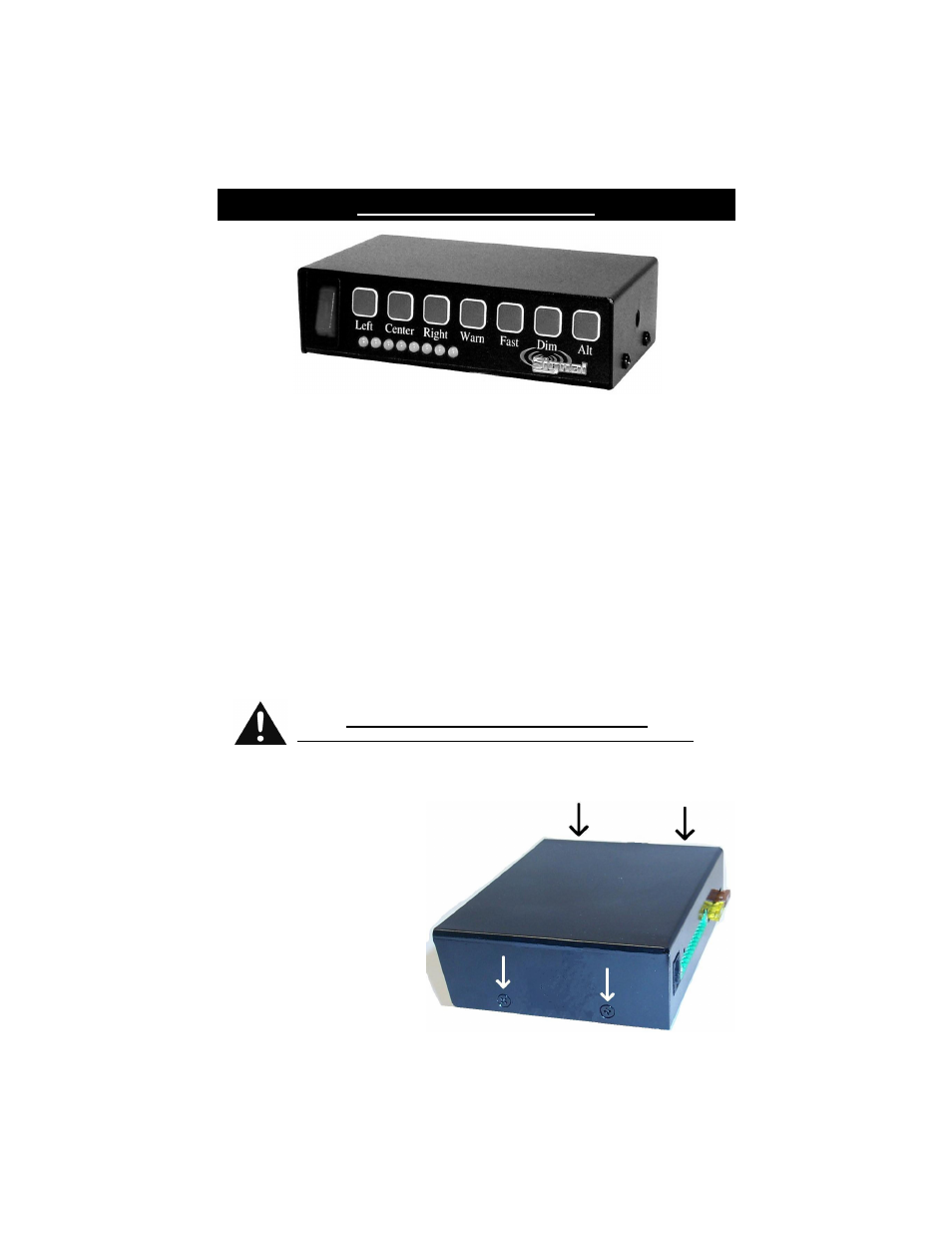

Optional TD77-2 Controller
TD77-2
(Optional Controller w/LED Display)
You may choose to control your DL15-30W with the optional TD77-2 controller (ordered
separately). This controller has a number of benefits over the SP1515-TDC or any other
standard switches:
• The TD77-2 provides an LED display that shows which mode
the light stick is operating in (Off, Left, Center, Right, or Warn).
• The TD77-2 allows you to change your Warning Pattern and
the style of your Traffic Directing Patterns. (Please note that
this feature must be disabled if you need to meet
California Title 13 specifications.)
• The Pattern Control Switches on the TD77-2 are all backlit
anytime the unit is powered on.
Prior to connecting the TD77-2 to your DL15-30W, you must set an internal
jumper. YOUR TD77-2 WILL NOT CONTROL THE DL15-30W
LIGHTSTICK PROPERLY WITHOUT FIRST SETTING THIS JUMPER.
TD77-2 Control Box Cover Removal
1. Remove the four recessed
Philip head screws (two on
each side of the control box).
2. Remove the top cover by
sliding it towards the back of
the unit.
