Status led – Star Headlight & Lantern STAR-PA RSK966P User Manual
Page 12
-9-
(Electrical Connections CONT’D)

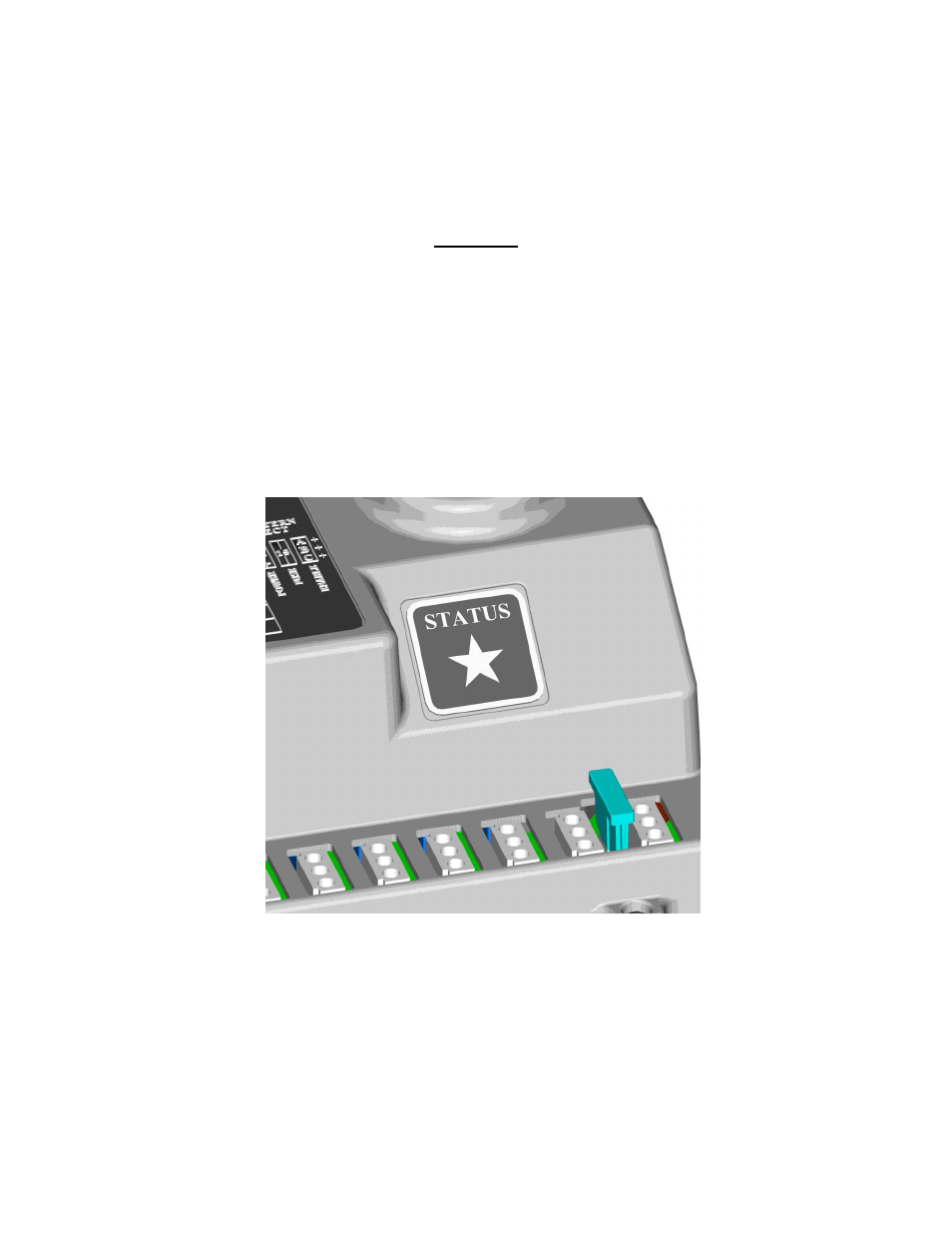

Status LED
1.
The RP966 and RP996 power packs come with a built-in “star-shaped” status LED.
2.
When operating properly, the LED will blink in conjunction with each of the strobe
heads.
3.
If none of the heads are flashing and the Star LED is a dim steady burn, proper
voltage is reaching the POWER cable, but is not reaching the ENABLE cable.
Check that your switches are on and that +12VDC is reaching the ENABLE wires.
4.
The Star LED is also designed to flicker when there are no active strobe heads
flashing during a particular flash cycle. If none of the heads are flashing and the
LED is flickering, all of the heads are bad or they are all wired incorrectly.
5.
If none of the heads are flashing and the Star LED single flashes every 1-3 seconds
then the pack is receiving insufficient voltage (below 11.0 volts).
