Temp. Sensor
Battery Socket
Balance Socket
Port Pitch=2.54mm
Compact and Unique Design
The size of RacingStar RS16 is 92*111.4*50mm which is super-compact
portable charging system. The joystick gives the user best operational
experience and also makes the charger smart and unique.
Optimized Operating Software
RacingStar RS16 Charger features the so-called AUTO function that set the
feeding current during the process of charging or discharging. Especially for
lithium batteries, it can prevent the overcharging which may lead to an
explosion due to the user's fault. It can disconnect the circuit automatically
and alarm once detecting any malfunction. All the programs of this product
were controlled through two way linkage and communication, to achieve the
maximum safety and minimize the trouble. All the settings can be
configured by users!
Internal Independent Lithium Battery Balancer
RacingStar RS16 Charger employs an individual-cell-voltage balancer. It
isn't necessary to connect an external balancer for balance charging.
Balancing Individual Cells Battery Discharging
During the process of discharging, RacingStar RS16 Charger can monitor
and balance each cell of the battery individually. Error message will be
indicated and the process will be ended automatically if the voltage of any
single one cell is abnormal.
Adaptable to Various Type of Lithium Battery
RacingStar RS16 charger is adaptable to various types of lithium batteries,
such as LiPo, LiIon and the new LiFe series of batteries.
Two DC inputs
There are two DC inputs, one is located in the right side of the charger and
the other is located in the bottom for docking into the eFule 230W 13.8V
Switch DC Power Supply(Part No. SK-200017).

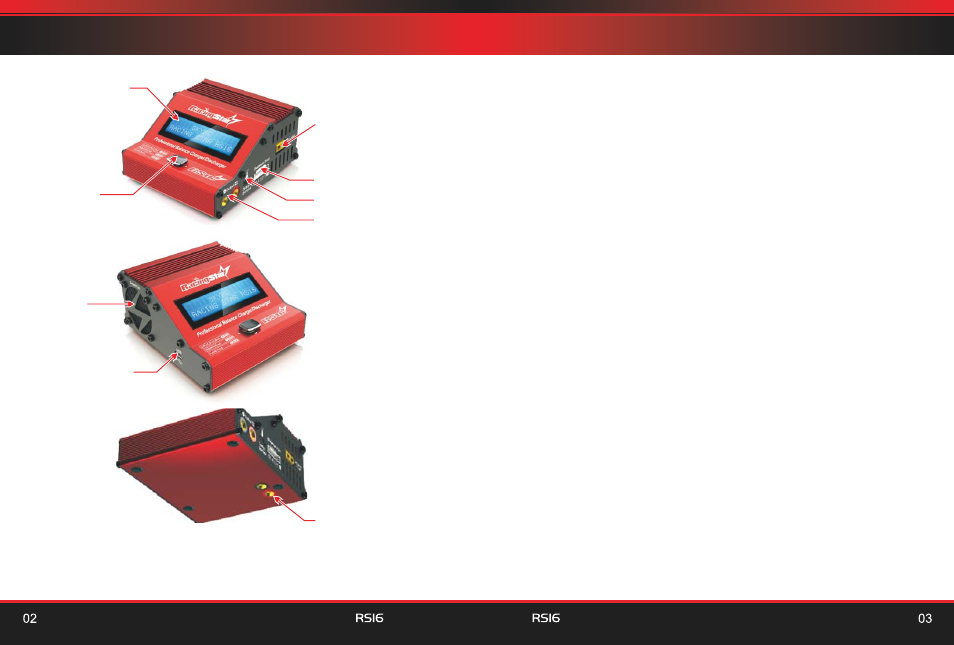

LCD Screen
Joystick
Smart
Cooling Fan
Micro USB Port
for PC Control &
Firmware Upgrade
DC Input Socket
(XT60 Type)
11-18V DC
DC Input Socket
11-18V DC
