Charged
capacity
Number
of
cells Charging
time
Charging
current
Battery
voltage
S is the number of cells set by you at the
previous screen. If both numbers are
identical you can start charging process. If
not, move the joystick left to go back to
previous screen to recheck the number of
cells of the battery pack before going ahead.

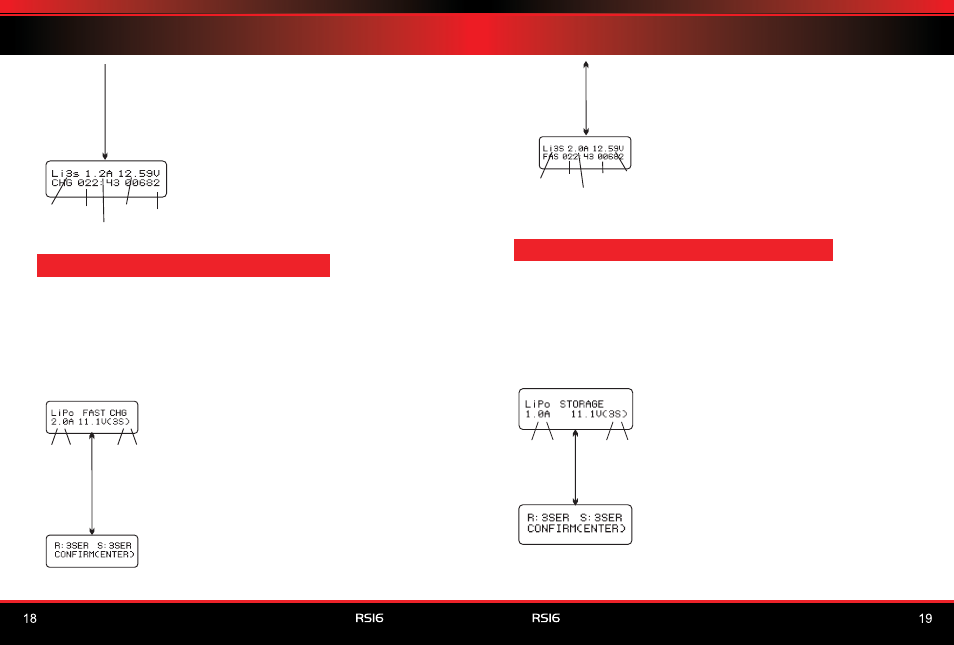

This screen shows the real-time status
during charge process. Move the joystick left
to stop the charge process.
‘FAST' CHARGING OF LITHIUM BATTERY
The charging current is getting smaller as the process goes to the near
end term of Lithium battery charging. To finish charging process earlier,
this program eliminate certain period of CV process. Actually, the
charging current will goes to 1/5 from the initial value to end the
process while the normal charging goes to 1/10 during CV period. The
charging capacity may be a bit smaller than normal charging but the
process time will be reduced.
The value on the left side of the second lines
shows the charge current. The value on the
right side of the second lines shows the
battery pack's voltage. After setting current
and voltage, move the joystick right and hold
it for 3 seconds to start the process.
This displays the number of cells you set up
and the processor detects. R shows the
number of cells detected by the charger and
S is the number of cells set by you at the
previous screen. If both numbers are
RIGHT
> 3 seconds
UP DOWN
- +
UP DOWN
- +
LEFT RIGHT
Current
voltage
battery Supplied
capacity
Charge
current
Charging
time
Number
of
cells
identical you can start charging process. If
not, move the joystick left to go back to
previous screen to recheck the number of
cells of the battery pack before going ahead.
This screen shows the real-time status
during charge process. Move the joystick left
to stop the charge process.
'STORAGE' CONTROL OF LITHIUM BATTERY
This program is for charging or discharging Lithium battery which will
not be used for long time. The program will determine to charge or
discharge the battery to certain voltage depending on the voltage of the
battery at its initial stage. They are different from the type of the battery,
3.75V for LiIo, 3.85V for LiPo and 3.3V for LiFe per cell. If the voltage
of battery at its initial stage is over the voltage level to storage, the
program will start to discharge.
At this screen, you can set up the current
and voltage of the battery pack. Charging
and discharging will make the batteries
come to the voltage level of storage state.
This screen displays the number of cells you
set up and the processor detects. R shows
the number of cells detected by the charger
and S is the number of cells set by you at
the previous screen. If both numbers are
identical you can move the joystick right to
start charging process. If not, move the
RIGHT
> 3 seconds
UP DOWN
- +
UP DOWN
- +
LEFT RIGHT
LITHIUM BATTERY(LiPo/LiFe/LiIon)PROGRAM LITHIUM BATTERY(LiPo/LiFe/LiIon)PROGRAM
