Page 3
3

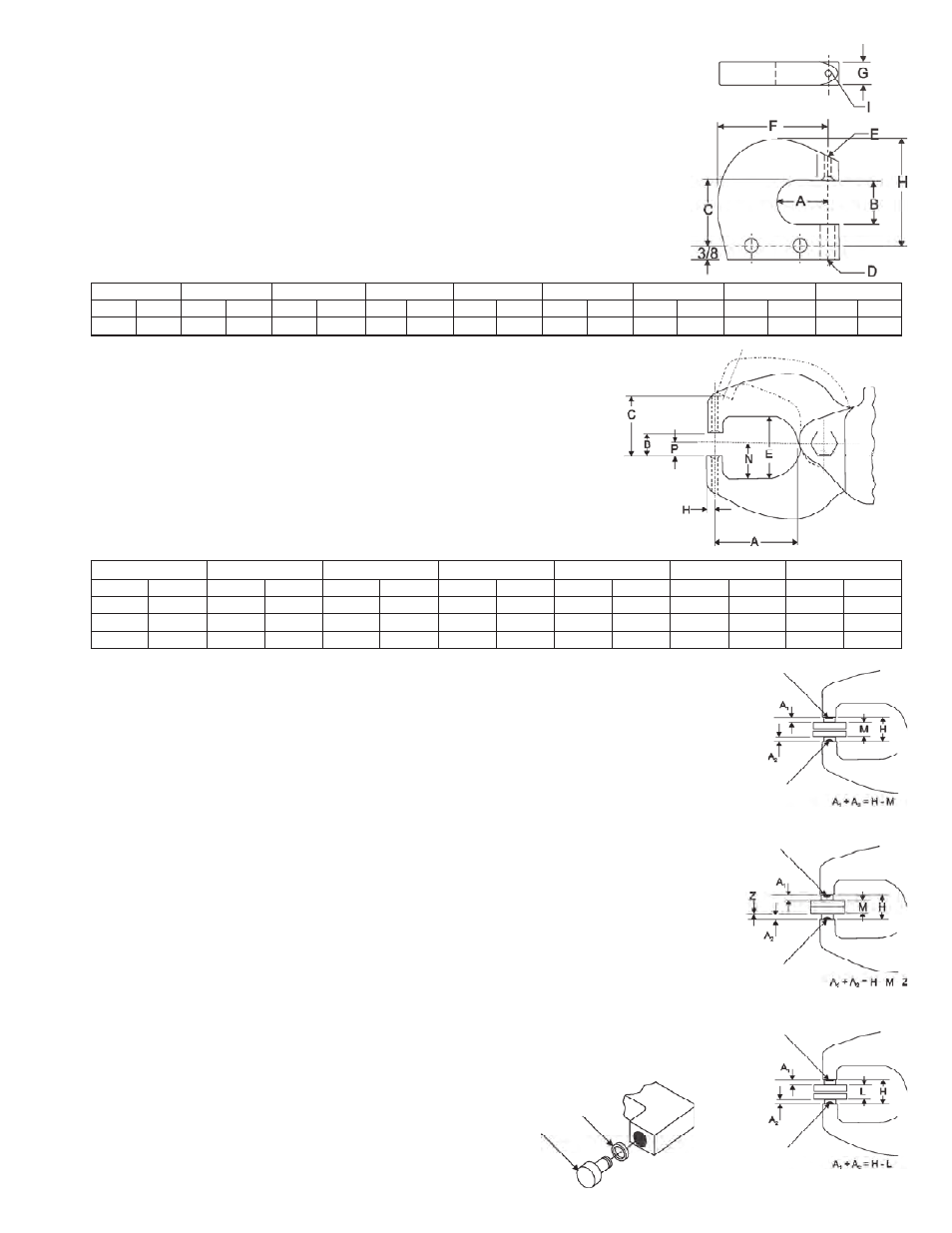

SZEA3000/SZEA6000 Series Compression Riveter –
“C” Yoke Style
C-YOKE NOMENCLATURE
A Reach
B Gap
C Height from yoke hole center to top of yoke gap
D Bottom set hole diameter CR-1 or CR-2
E Top set hole diameter CR-1 or CR-2
F Width of yoke set hole center to end of yoke
G Thickness of yoke
H Height of yoke from bolt hole center to top of yoke
I Radius from set hole center
A
B
C
D
E
F
G
H
I
in. mm in. mm in. mm in. mm in. mm in. mm in. mm in. mm in.
mm
1-1/2 38 1-1/4 32 1-7/8 48 3/8 10 3/16 5 2-7/8 73 9/16 14 3.0 76 1/4 6
SZEA5000/SZEA7000 Series Compression Riveter –
Alligator Jaw Style
ALLIGATOR YOKE NOMENCLATURE
A Reach
B Closed
Height
C Total
E Gap
H Lower
Offset
N Depth from centerline to Stationary Jaw Gap
P Depth from centerline to Stationary Jaw set hole surface
A
B
C
E
H
N
P
in. mm in. mm in. mm in. mm in. mm in. mm in.
mm
1-1/2
38
7/8
22
1-1/2
38
1-5/8
41
7/32
6
1.0
1
5/8
16
2-1/4
57
7/8
22
1-7/8
48
2-1/8
54
7/32
6
1-1/4
32
5/8
16
3.0 76 7/8 22 2-1/8 54 2-1/8 54 7/32 6 1-1/4 32 5/8 16
COMPRESSION RIVETERS
For maximum power the combined length of the two rivet sets must be of the correct length.
Determine the correct lengths as follows:
Figure 1: When two cupped rivet sets are used:
The length of the body dimensions of the two rivet sets (A1, A2) should equal the closed height
dimension of the yoke (H) minus the total thickness of material being riveted together.
Figure 2: When one cupped set and one fl ush set are used:
The length of the body dimensions of the two rivet sets (A1, A2) should equal the closed height
dimension of the yoke H minus the total thickness of material being riveted (M) and the height of the
fi nished rivet head (Z) compressed by the fl ush set (A).
Figure 3: When two fl ush sets are used:
The length of the body dimensions of the two rivet sets (A1, A2) should equal the closed height
dimension of the yoke (H) minus the overall length of the rivet (L) after it is compressed.
If necessary, select rivet sets a little short and shim to the correct
length using spacer shims.
cupped rivet set
cupped rivet set
Figure 1
cupped rivet set
fl ush rivet set
Figure 2
fl ush rivet set
fl ush rivet set
Figure 3
shim
rivet set
