24

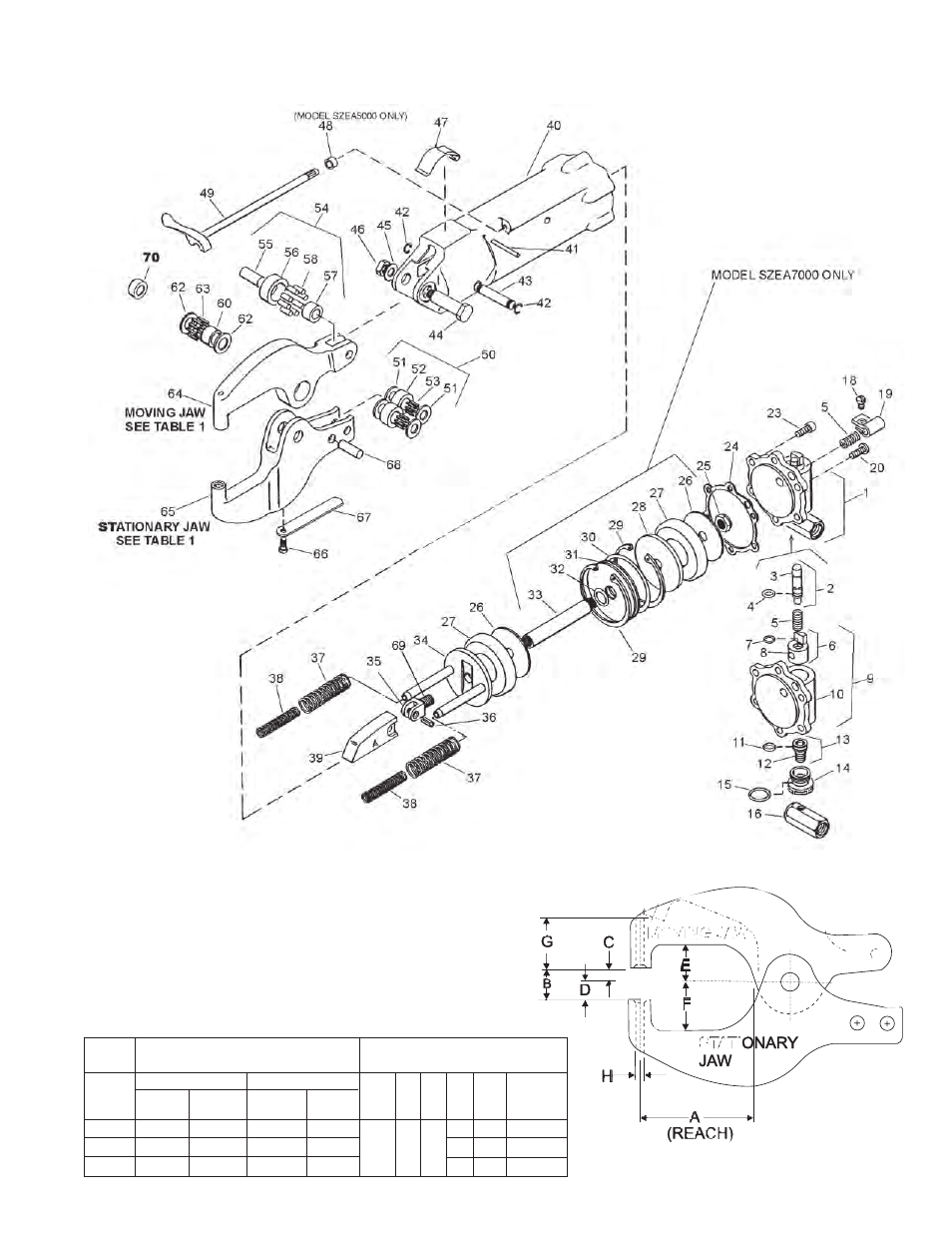

PARTS LIST FOR SZEA5000 AND SZEA7000 SERIES COMPRESSION RIVETER –
ALLIGATOR JAW STYLE
SERIAL “A”
DIM Moving Stat. Moving Stat. B C D E F G
(Reach) Jaw Jaw Jaw Jaw (Gap) Max Travel
1 1/2” SZE1061 SZE1060 SZE1082 SZE1081 5/8” 1” 5/8”
2 1/4” SZE1073 SZE1072 SZE1084 SZE1083 7/8” 1/4” 5/8” 7/8” 1 1/4” 7/8”
3” SZE1050 SZE1049 SZE1086 SZE1085 7/8” 1 1/4” 1 1/4”
TABLE 1—JAW PART NUMBER AND DIMENSIONS
A PART NUMBER
‘H’ SET HOLE DIA DIMENSIONS
3/16” Dia 1/4” Dia
