12
ENGLISH

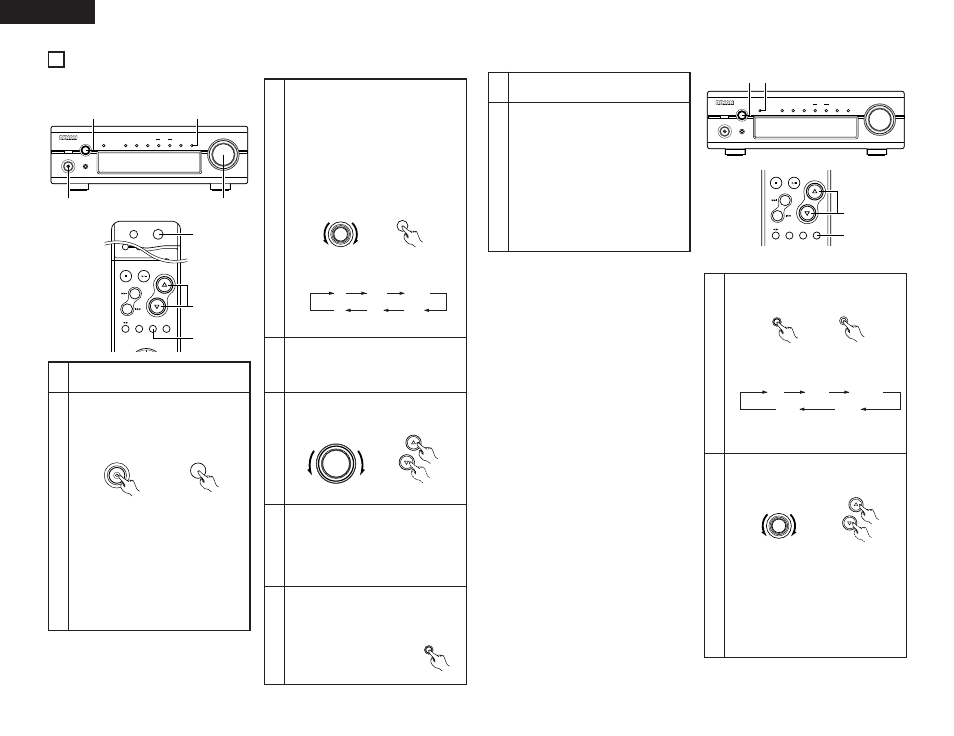

7 OPERATION
(1) Playback
PHONES
SYSTEM
VOLUME
ON / STANDBY
AM-FM STEREO RECEIVER DRA-F101
SOURCE DIRECT BAND UP DOWN TUNING MEMORY / SET FUNCTION TIMER TONE DISPLAY
3 7
2 5
PROG / DIRECT
SYSTEM POWER
OFF ON
2
STOP PLAY VOLUME /SELECT
SLEEP MODE TAPE FUNCTION
PRESET
+
-
TUNER
CD
MD
3
5
3
Either turn the FUNCTION dial on the main unit
or press the remote control unit’s FUNCTION
button to select the function source to be
played.
• The function switches in the order shown
below.
✽ The function switches in the opposite order
when the dial is turned counterclockwise (.).
CD
MD TAPE PHONO
TUNER DVD/AUX
FUNCTION FUNCTION
(Main unit) (Remote control unit)
4
Start playback of the selected function source.
• For instructions on operation, refer to the
component’s operating instructions.
5
Adjust the volume.
6
Adjust the BALANCE, BASS, and TREBLE
controls and set the LOUDNESS position to the
desired position.
✽ For instructions on adjusting, see “(3) Setting
the various modes” on page 12, 13.
7
To use the source direct function:
Press the SOURCE DIRECT button to display
“SD ON” .
VOLUME
VOLUME
/SELECT
(Main unit) (Remote control unit)
(Main unit)
1 Check that all connections are correct.
2
Turn on the power.
• The indicator first flashes green, then after
about 6 seconds stops flashing, remaining lit,
indicating that the unit is set to the power on
mode.
(Main unit)
SYSTEM
ON / STANDBY
SYSTEM POWER
ON
(Remote control unit)
2 Power on/standby mode and function
memory
B When the remote control unit is used to
turn the DRA-F101’s power on from the
standby mode, the function is set to the
function that was selected when the
power was last set to the standby mode.
(Last memory function)
B If the function has been cleared from the
memory, the function is set to “CD” when
the DRA-F101’s power is turned on.
(3) Setting the various modes
[1] Adjusting the bass and treble
PHONES
SYSTEM
VOLUME
ON / STANDBY
AM-FM STEREO RECEIVER DRA-F101
SOURCE DIRECT BAND UP DOWN TUNING MEMORY / SET FUNCTION TIMER TONE DISPLAY
2 1
STOP PLAY VOLUME /SELECT
SLEEP MODE TAPE FUNCTION
PRESET
+
-
1
2
1
2
Press the TONE or MODE button to display the
mode to be adjusted (“BASS” or “TREBLE”).
Either turn the FUNCTION dial on the main unit
or use the remote control unit’s SELECT
buttons.
BASS
Playback
function source
BALANCE
TREBLE LOUDNESS
TONE
(Main unit)
MODE
(Remote control unit)
FUNCTION
VOLUME
/SELECT
(Main unit) (Remote control unit)
• To increase the bass or treble:
Turn the dial clockwise (,) or press the D
button.
To decrease the bass or treble:
Turn the dial counterclockwise (.) or press
the
H button.
• The bass and treble can be adjusted within
the range of –8 to 0 to +8 in steps of 2. The
response is flat at 0.
• The mode switches as follows each time the
button is pressed:
✽ This cannot be selected when the source
direct mode is set to “ON”.
(decrease) (increase)
(decrease)
(increase)
SOURCE
DIRECT
(2) Recording
1 Follow step 1 to 4 under “(1) Playback”.
2
Start recording on the cassette deck or MD
recorder.
For instructions, refer to the component’s
operating instructions.
• Operating the VOLUME, BALANCE, BASS,
TREBLE and the LOUDNESS controls will not
affect the sound being recorded.
• When the function source is set to “MD”,
recording is performed from the MD recorder
onto the cassette deck. When the function
source is set to “TAPE”, recording is
performed from the cassette deck onto the
MD recorder.
