350P Preamplifier
____________________________________________________________________________________
10
When you select one of the digital inputs as
described in the aforementioned section, the display
window will show which of the four digital inputs is
selected. At the same time, the right side of the
display window will initially show four dashes as
follows “----” which indicate that the 350P is in the
process of locking onto the external digital signal –
this may take several seconds. When the 350P
successfully locks onto the digital signal, the four
dashes will be replaced by the sampling rate of this
digital signal. When the signal cannot be locked
onto, “----” remains in the display window. The
optional digital-to-analog circuit option inside the
Nēo 350P is capable of processing the following
sampling rates: 32.0kHz, 44.1kHz, 48.0 kHz,
88.2kHz, 96 kHz, 176.4kHz and 192kHz.
Optional Phono Section
The Nēo 350P Preamplifier features an optional
MC/MM phono section that may be installed only by
your MOON Authorized Dealer or at the Simaudio
factory. This phono card is a very high quality
design, providing adjustments for both capacitance
and resisitance loading, as well as gain level. This
flexibility allows you to optimize the 350P for a wide
variety of MC and MM cartridges.

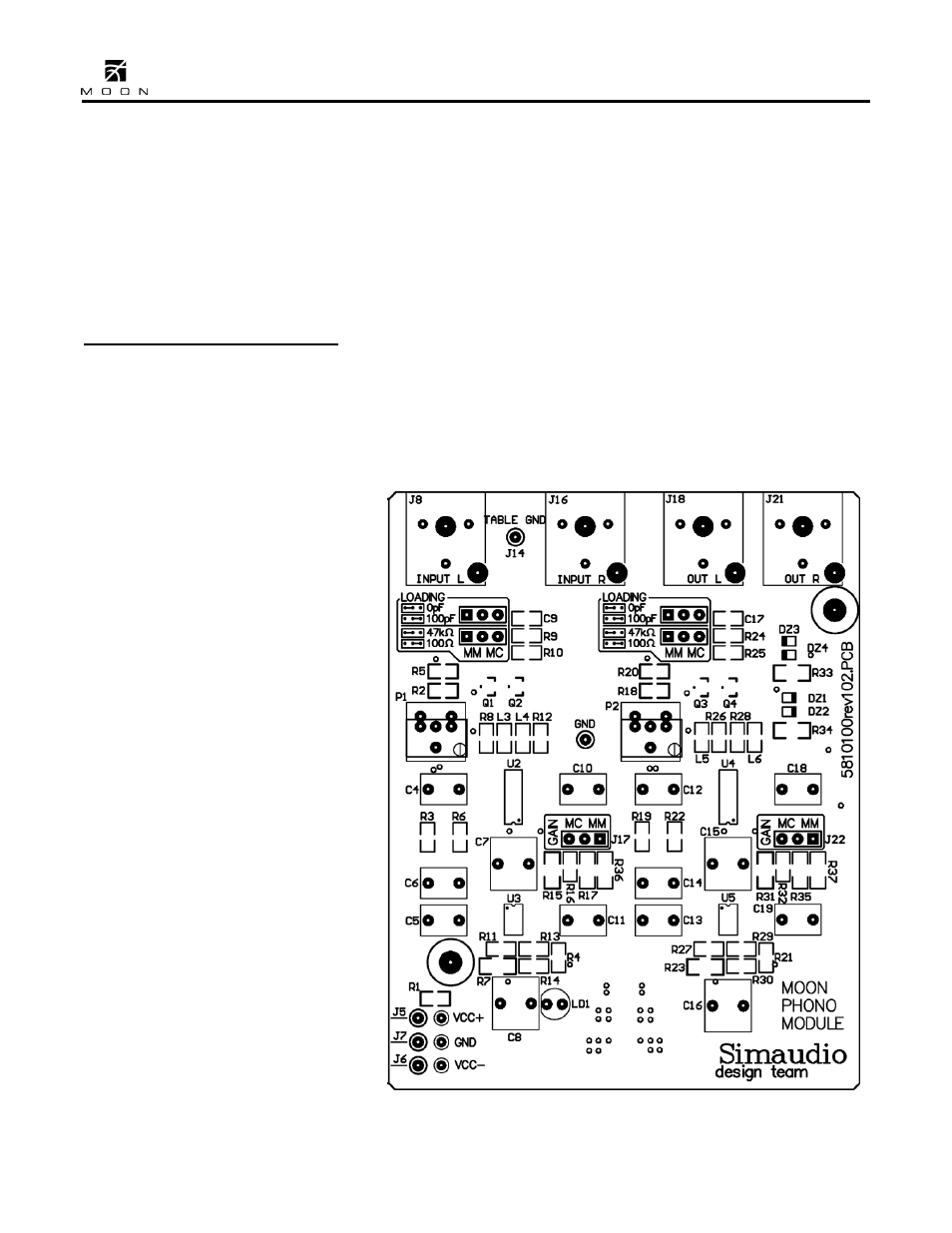

Circuit Board Layout:
Figure 3: Nēo 350P Optional Phono Section Circuit Board Layout
