Setup your PatchMate LOOP 8 Floor:
SETUP MODE:
To enter setup mode once you turn the power on you have 3 seconds to press the Store button once.
After the 3 second time out it will enter the SETUP MODE...... and the STORE LED will blink. You are
now in the MIDI CONFIGURATION PROGRAMMING MODE.
Note: If you do not press the store button within the first 3 seconds proceeding the initial power up, the
Patchmate Loop 8 will automatically enter normal mode and recall preset number 1.
1. The LEDs above the switches on the top panel will be displaying the current MIDI CHANNEL con-
figuration information. To modify the MIDI CHANNEL information press the desired button combina-
tion as shown on the MIDI CHANNEL SELECT diagram on the following page.
2. If you would like the PatchMate LOOP 8 Floor to respond to these program changes, press and re-
lease swtich 8. When the LED is "OFF" the PatchMate LOOP 8 Floor will respond to controller chang-
es.
Once you have made your selections PRESS and RELEASE the STORE Switch. All relays and LEDs
will blink twice indicating store success. (Now proceed to step 3 under MIDI CONTROLLER SETUP)
*You may PRESS CANCEL (Switch 6 ) on the top panel then press the STORE switch and release if no
changes are needed.

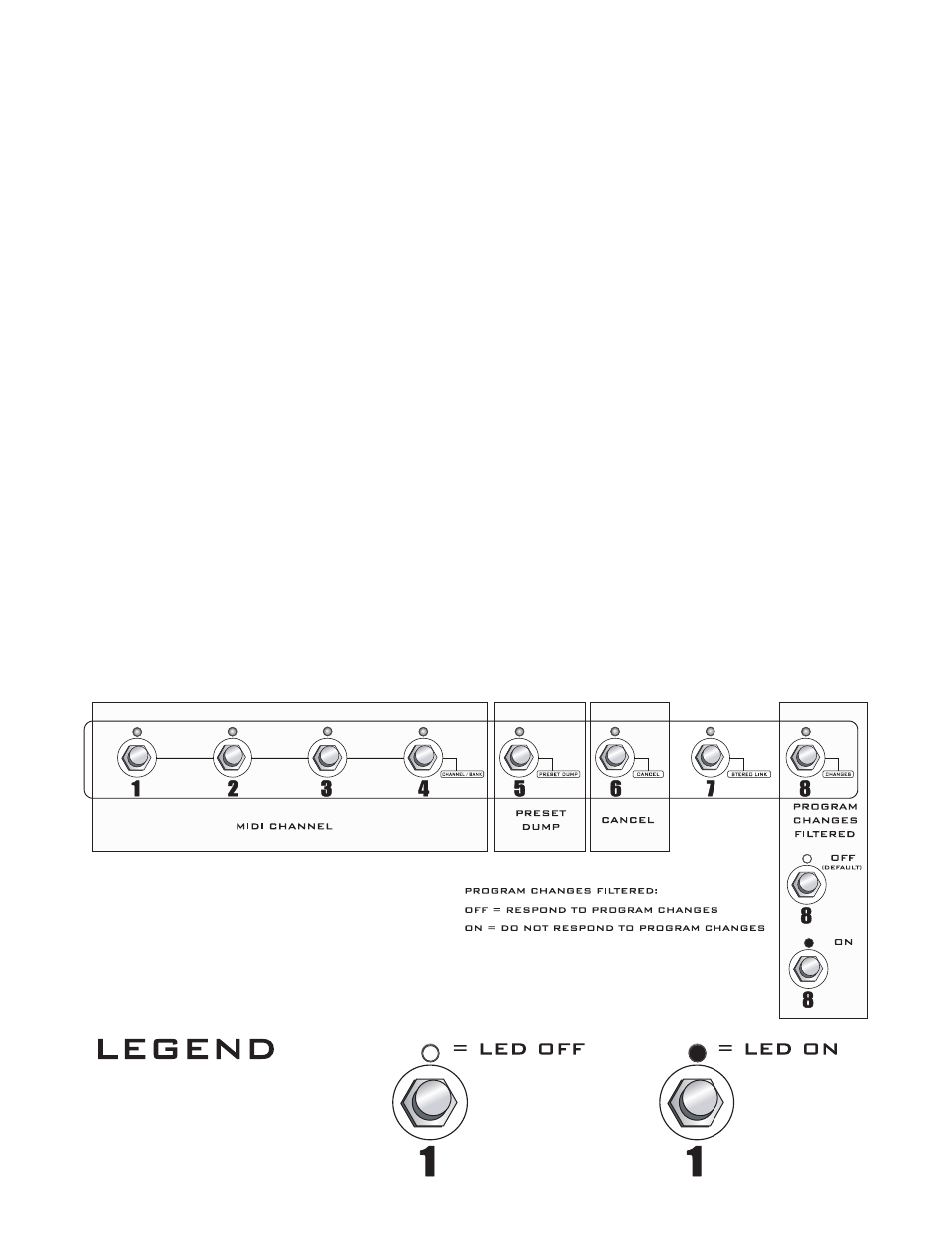

MIDI CONFIGURATION PROGRAMMING (DEFAULT)
