11
Connections

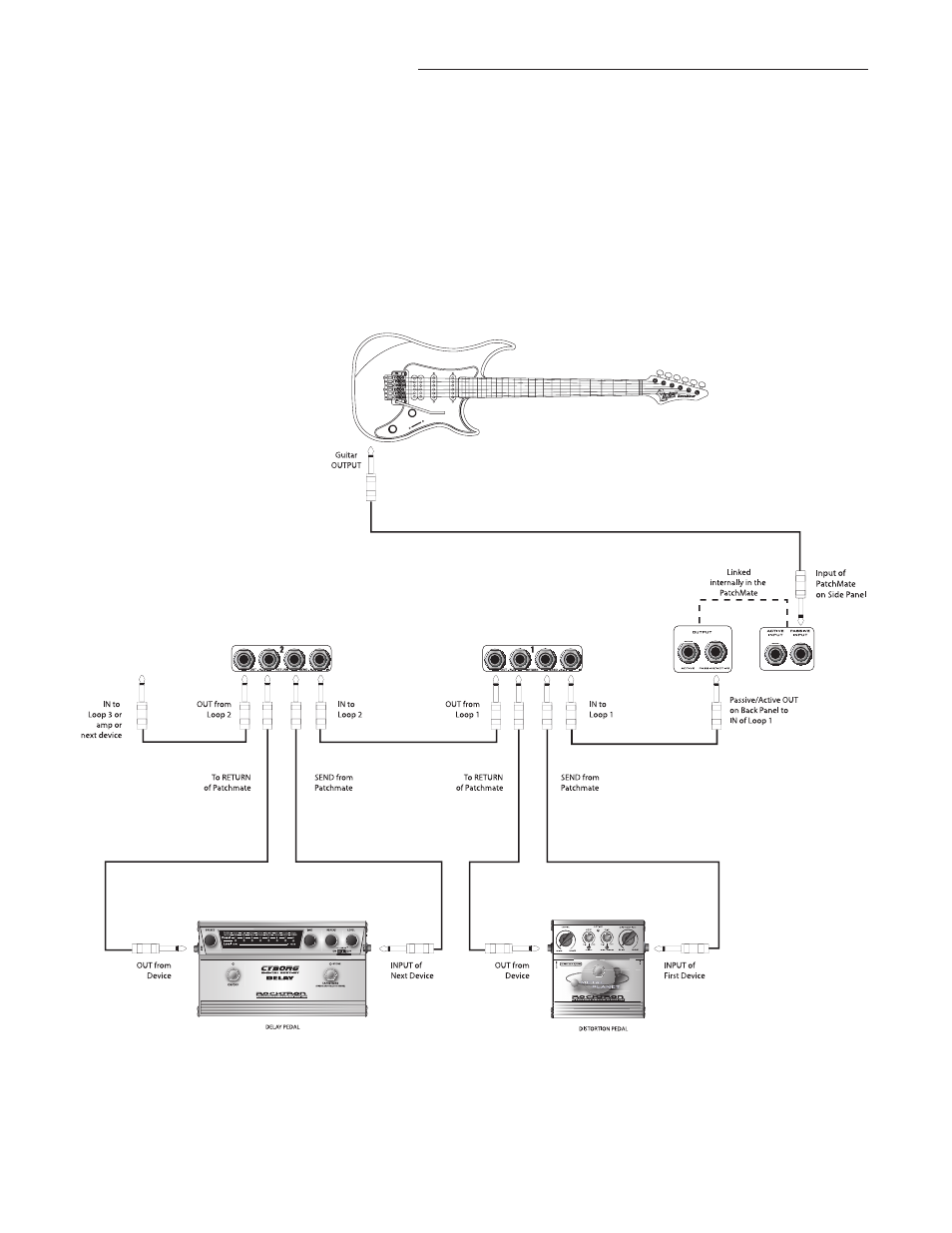

This connection diagram shows one way to use the LOOPs in the PatchMate LOOP 8 Floor to connect
stompboxes (pedals). Although only two connections are shown here, you can follow a similar progres-
sion of connections using LOOPs 3-8.
Note: to simplify the connection diagrams, all of the jacks may not be shown in similar locations as on
unit, but the jack descriptions will show the correct connections
