Motor Controller
P a r r I n s t r u m e n t C o m p a n y 8

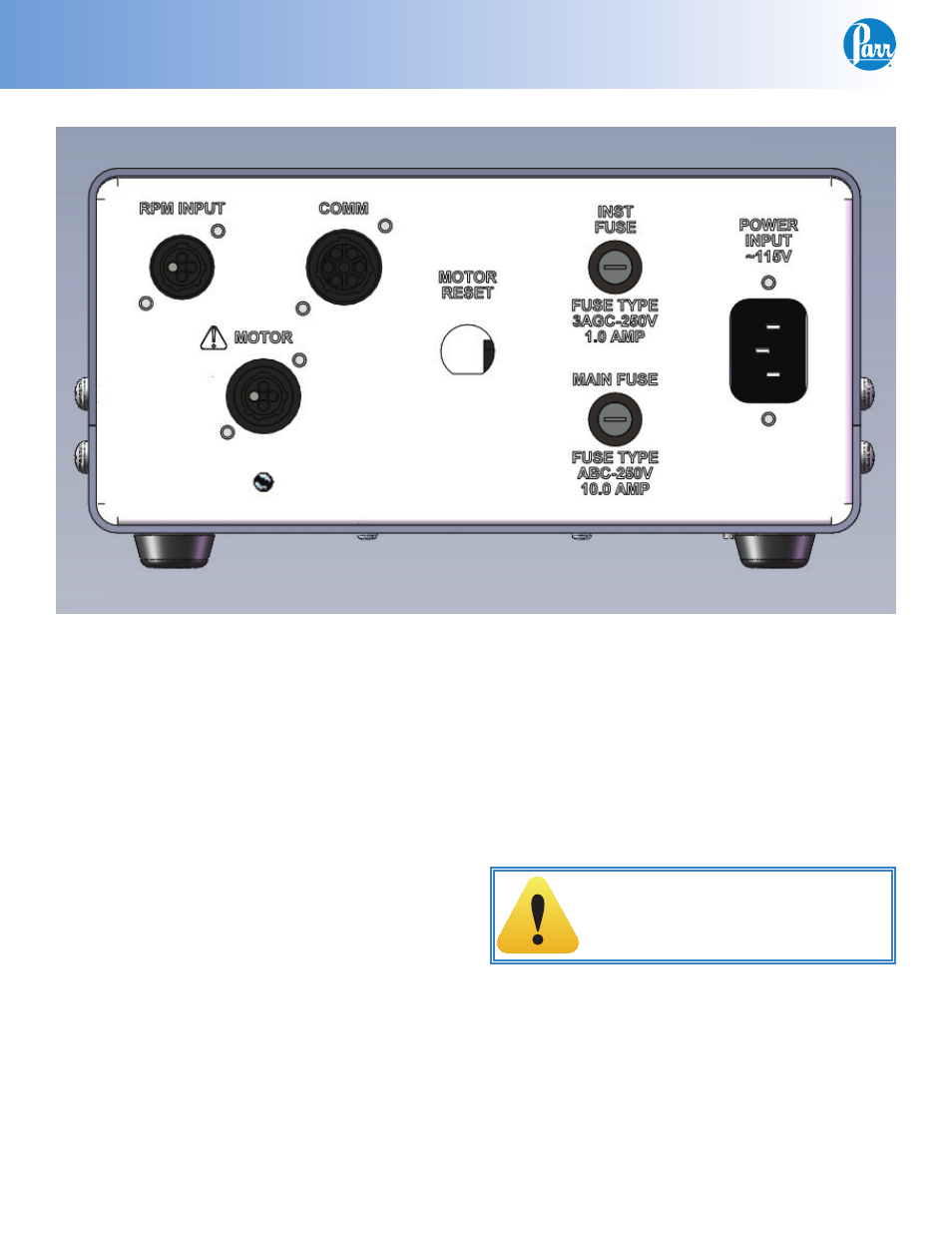

Rear View A2110E Motor Controller (115V shown)
A main fuse is mounted on the back panel on 115V
systems. This fast-acting, 250VAC, 10 amp fuse is
intended to protect the controller and prevent an
electric shock hazard from occurring.
Two main fuses are mounted on the back panel
on 230V systems. These are fast-acting, 10 Amp,
250VAC and are intended to protect the controller
and to prevent an electric shock hazard from occur-
ring.
Caution!
Unplug unit before servicing. For
continued protection against possible
hazard, replace fuses with same type
and rating of fuse.
Protective Fuses and Relays
An instrument fuse is mounted on the back panel.
This is intended to protect the display module and
internal hardware. A hole plug is provided for units
that do not have a display module.
The motor reset fuse provides overload protection
for 0-90VDC motors. This is a re-settable breaker
designed to protect the motor if it becomes over-
loaded. The breaker will have a rating selected to
match the motor on the apparatus.
A lighted fuse holder provides protection for 0-180
VDC motors. A light will come on if the motor be-
comes overloaded and the fuse burns out. The fuse
rating will be selected to match the motor on the
apparatus.
