5400 Tubular Reactor System
P a r r I n s t r u m e n t C o m p a n y 12
HEAD
3489HC
DROP BAND ASS'Y
2X A3511HC
REF
COMPRESSION RING
SECTION A-A
CYLINDER
3510HC / HC2 / HC3
EACH WITH 6X
(GRAPHITE)
429HC2KF
HEAD
3491HC
2X 430HC
PTFE GASKET
2X 429HC2
33HDF3 BOLTS
2X A3487HC2
SPLIT RING ASS'Y
1/4NPT
1/8NPT REF
2X 2.975
20.38 (3510HC)
44.38 (3510HC3)
(3510HC2) 32.38
.987
1.50
36.30 (W/ 3510HC2)
48.30 (W/ 3510HC3)
24.30 (W/ 3510HC)
18.16 (3510HC)
30.16 (3510HC2)
42.16 (3510HC3)

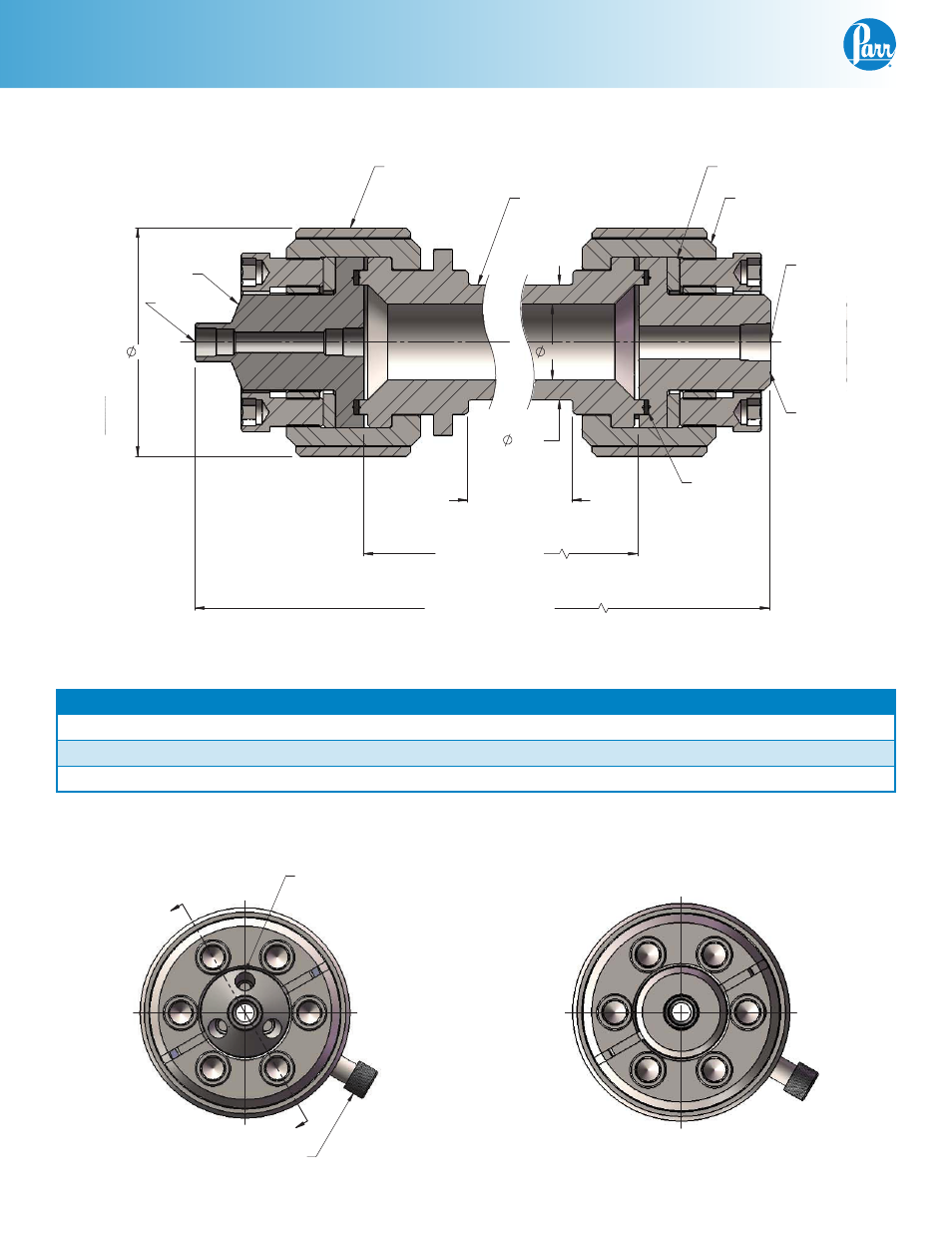

5403 Tubular Reactor Assembly
Internal View
3X 1/16NPT REF
456HCF2 BOLT REF
(DROP BAND)
A
A
3491HC Head
Top View
3489HC Head
Bottom View
5403 Cylinder Guide
Cylinder Part No. Total Volume Heated Length Heated Volume
3510HC 250 mL 12 in 150 mL
3510HC2 400 mL 24 in 300 mL
3510HC3 550 mL 36 in 450 mL
