5400 Tubular Reactor System
w w w . p a r r i n s t . c o m 11

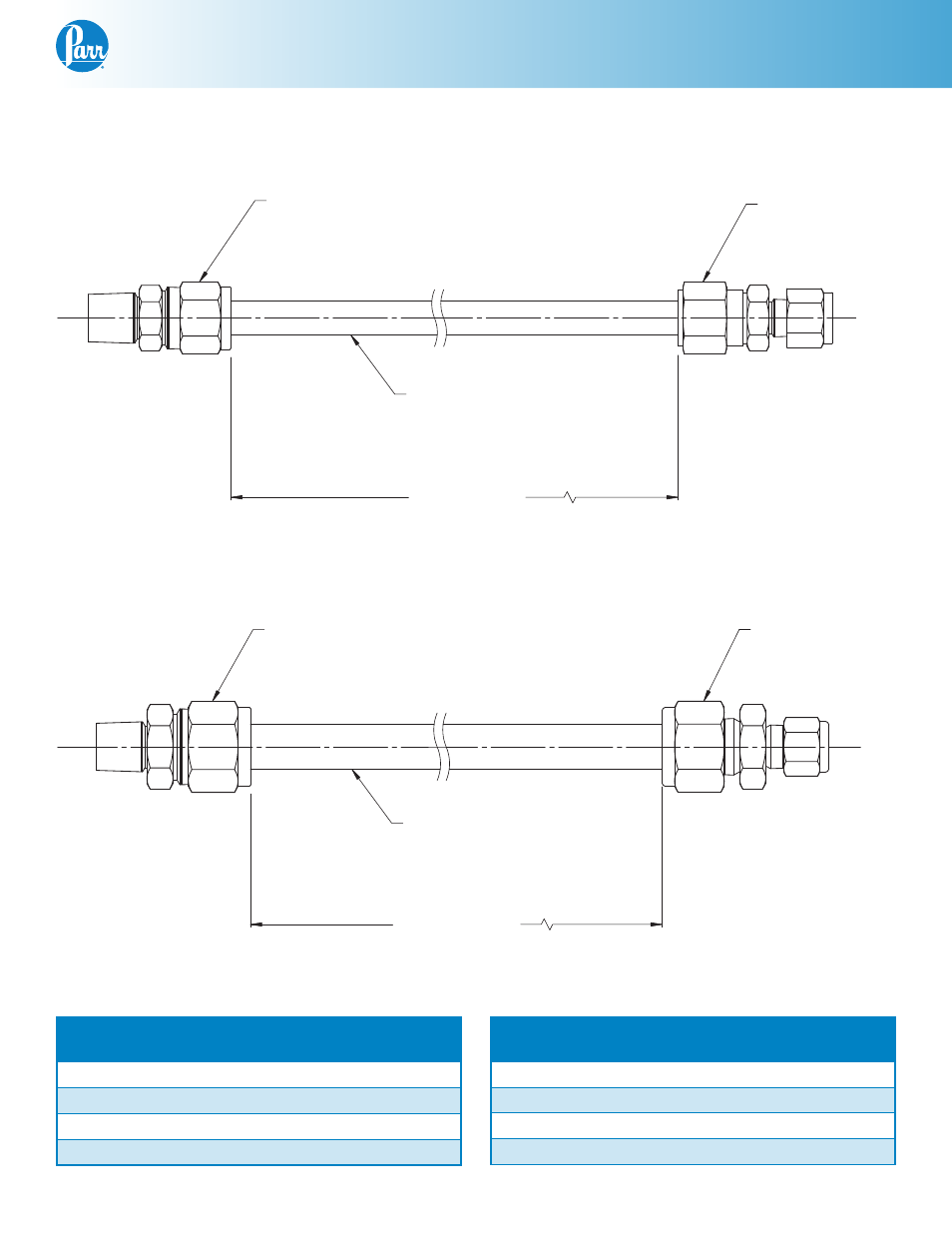

Drawings and Parts
5401 Tubular Reactor Assembly
3/8T X 1/4T
REDUCING UNION
542VBAD
288VBAD
MALE CONNECTOR
3/8T X 1/4 NPT
3616HC / HC2 / HC3 / HC4
TUBE CYLINDER
3/8 OD X .277 ID
19.68 [3616HC]
31.68 [3616HC2]
43.68 [3616HC3]
13.68 [3616HC4]
5402 Tubular Reactor Assembly
579VBAD
MALE CONNECTOR
1/2T X 1/4 NPT
640VBAD
1REDUCING UNION
1/2T X 1/4T
19.20 (3525HC)
31.20 (3525HC2)
43.20 (3525HC3)
13.20 (3525HC4)
3525HC / HC2 / HC3 / HC4
TUBE CYLINDER
1/2 OD X 3/8 ID
5401 Cylinder Guide
Cylinder
Part No.
Total
Volume
Heated
Length
Heated
Volume
3616HC 20 mL 12 in 10 mL
3616HC2 35 mL 24 in 20 mL
3616HC3 45 mL 36 in 30 mL
3616HC4 15 mL 6 in 5 mL
5402 Cylinder Guide
Cylinder
Part No.
Total
Volume
Heated
Length
Heated
Volume
3525HC 40 mL 12 in 20 mL
3525HC2 60 mL 24 in 40 mL
3525HC3 80 mL 36 in 60 mL
3525HC4 25 mL 6 in 10 mL
