Parr Instrument 4700 - Manual (Page 35)

General Purpose Pressure Vessels
w w w . p a r r i n s t . c o m 35

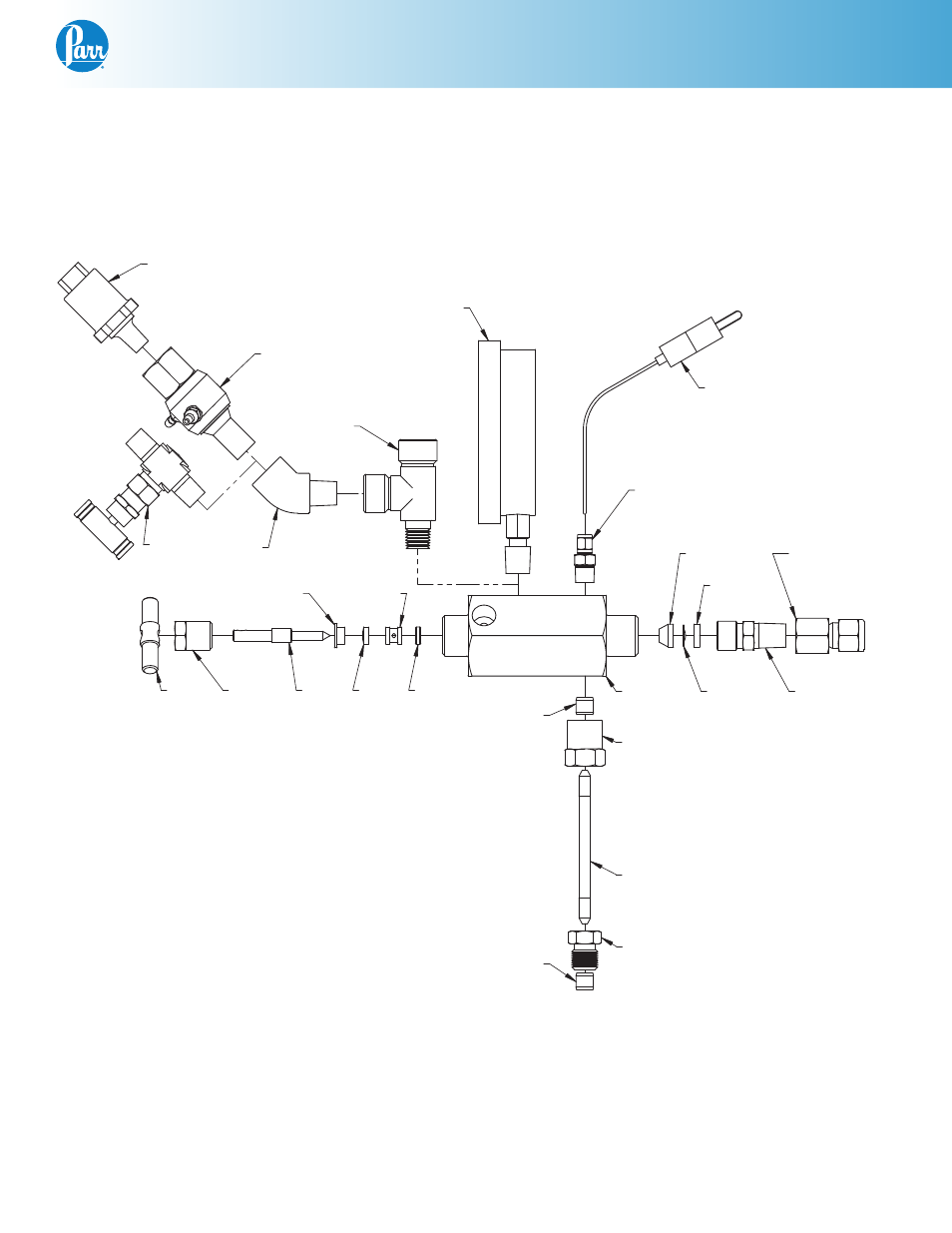

PRESSURE
TRANSDUCER
(OPTIONAL)
A1906EP_
SERIES
155VB
STREET TEE
(OPTIONAL)
COVER
VALVE SEAT
FEMALE CONNECTOR
3/8T - 1/4 NPTF
A411VB2AD
MALE CONNECTOR
1/16T/1/8NPT BT
49HC2
ORIFICE CONE
RUPTURE DISC
526HC SERIES
SAFETY HEAD
433HC4
THERMOCOUPLE
OUTLET 1/4 NPTM
A1357E SERIES
593HC SERIES
PRESSURE GAGE
302VBAD
HANDLE
VALVE PACKING
8VB2 123VB2
NUT NEEDLE
20VBHB 112VB4AK
VALVE
ORIFICE RING
527HC
126VB 6VBAA
PACKING LANTERN RING
BLOCK
GAGE
BUSHING
40HC
COMPRESSION
325HC
427HC2
SEE NOTE 1
NUT
COMPRESSION
35HC
SEE NOTE 2
51HC49
(OPTIONAL)
BODY ASSEMBLY
NUT
TUBE
BUSHING
154VB2
A2599HC2
40HC
TRANSDUCER COOLING
(OPTIONAL)
ELBOW
(OPTIONAL)
VALVE
GASKET
4VB4KL
STRAIGHT
A147VB
NOTES:
1) APPLY ANTI-SEIZE COMPOUND SPARINGLY TO THREADS AND TORQUE TO 20 LBS/FT.
2) APPLY ANTI-SEIZE COMPOUND SPARINGLY TO THREADS AND TORQUE TO 15 LBS/FT.
