General Purpose Pressure Vessels
P a r r I n s t r u m e n t C o m p a n y 22

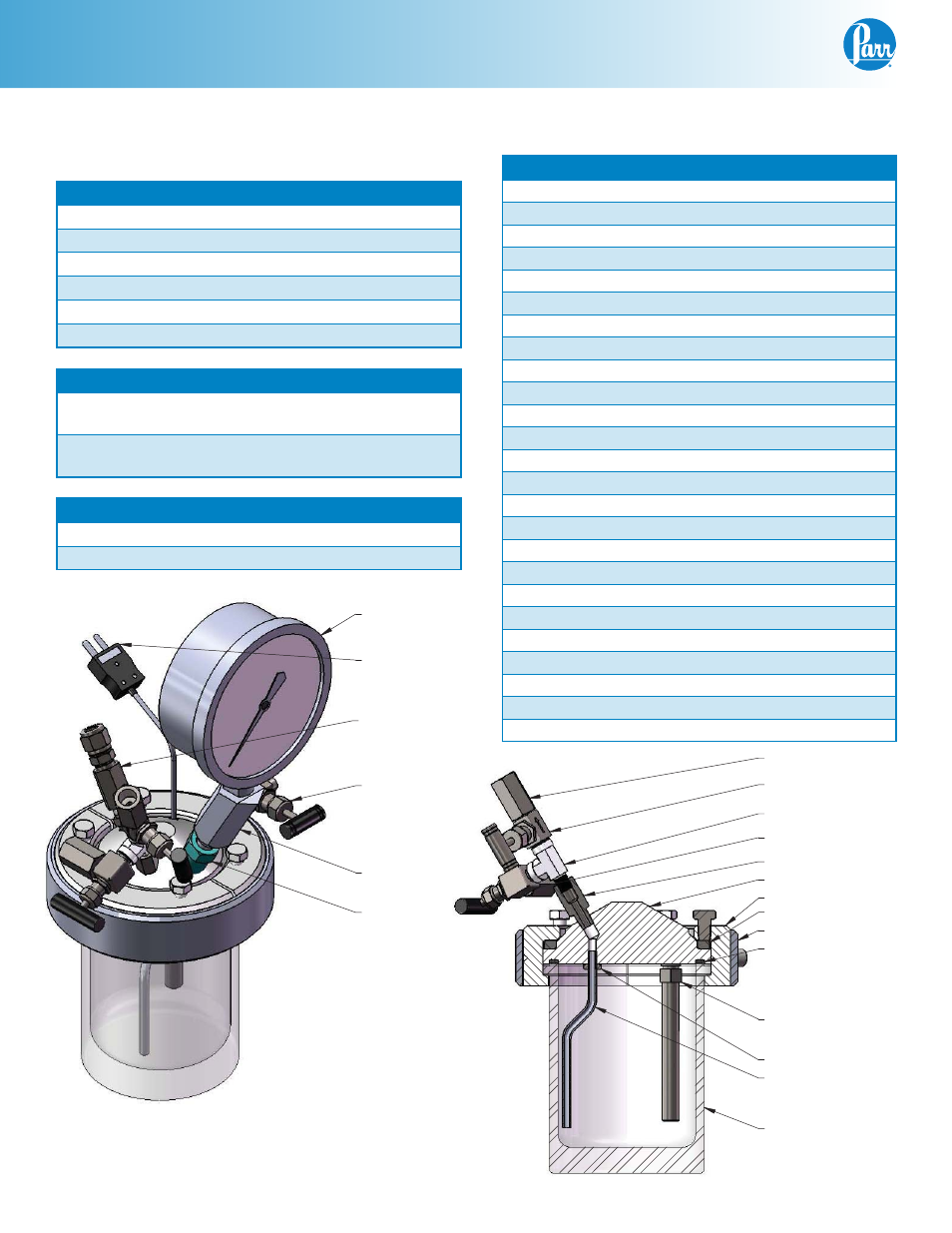

SERIES 4600 WORKING LIMITS AND PARTS LISTS
208HC20
GAGE ADAPTER
288VBAD MALE CONNECTOR
A472E6
THERMOCOUPLE, 2L
A122VB
STRAIGHT VALVE
56HC SERIES
PRESSURE GAGE
A472E2
THERMOCOUPLE, 1L
A888HC2 R/D HOLDER ASSY
526HC /581HC STYLE R/D
366VBAA HEX COUPLING
209HC4
ADAPTER BUSHING
A146VB ANGLE VALVE
179VBAD STREET TEE
236HC20 CYLINDER, 2L
260HC2 EXTENSION
257HC27 DIP TUBE, 2L
A232HC SPLIT RING ASSY
315HC2 SERIES GASKET
(OPTIONAL)
A233HC DROP BAND ASSY
265HC7 THERMOWELL, 1L
48HC GASKET
A122VB STRAIGHT VALVE
1370HC30 HEAD
265HC12 THERMOWELL, 2L
914HC LOCK NUT
257HC26 DIP TUBE, 1L
(OPTIONAL)
236HC10 CYLINDER, 1L
2X 420HC ADAPTER
234HC COMPRESSION RING
Series 4600-4620
Model Size Head Style
4601 1000 mL One opening, TBD
4602 2000 mL One opening, TBD
4611 1000 mL “B” Socket
4612 2000 mL “B” Socket
4621 1000 mL VGR, thermowell
4622 2000 mL VGR, thermowell
Working Limits
Maximum Working Pressure
(T316SS) 1900 psi (131 bar)
Maximum Working Temperature
with PTFE confined flat gasket 350 °C
Recommended Bolt Torque:
PTFE Gasket 25 ft - lbs
Flexible Graphite 35 ft - lbs
*For special material vessels add material code
for head, cylinder or internal fittings per page 12.
Part No. Description Flat Gasket Seal
229HC3 Head, "B" Socket
229HC6 Head, "B" Socket, thermowell
942HC59 Head, one Rupture Disc Opening
1370HC30 Head, VGR, thermowell
236HC10 Cylinder, 1000 mL, 5.32" deep
236HC20 Cylinder, 2000 mL, 10.44" deep
315HC2 Gasket, PTFE
315HC4KL Gasket, Flexible Graphite
A232HC Split Ring pair, with cap screws
232HCFDE Cap Screw for above (6 required)
A233HC Drop Band with Screw
233HCF Drop Band Screw
234HC Compression Ring
A256HC Thermowell, 2000 mL w/ nut & gasket
A256HC2 Thermowell, 1000 mL w/ nut & gasket
SN4320HX Thermowell Nut
319HCFH Thermowell Gasket, Silver
319HCFG Thermowell Gasket, Gold
A472E2 Thermocouple, 9-1/2”, 1000mL
A472E6 Thermocouple, 15-1/2”, 2000mL
2584HC Head/Cylinder Service Fixture
398HC Pyrex Liner, 1000 mL
398HCHA PTFE Liner, 1000 mL
399HC PTFE liner, 2000 mL
399HCHA Pyrex Liner, 2000 mL
