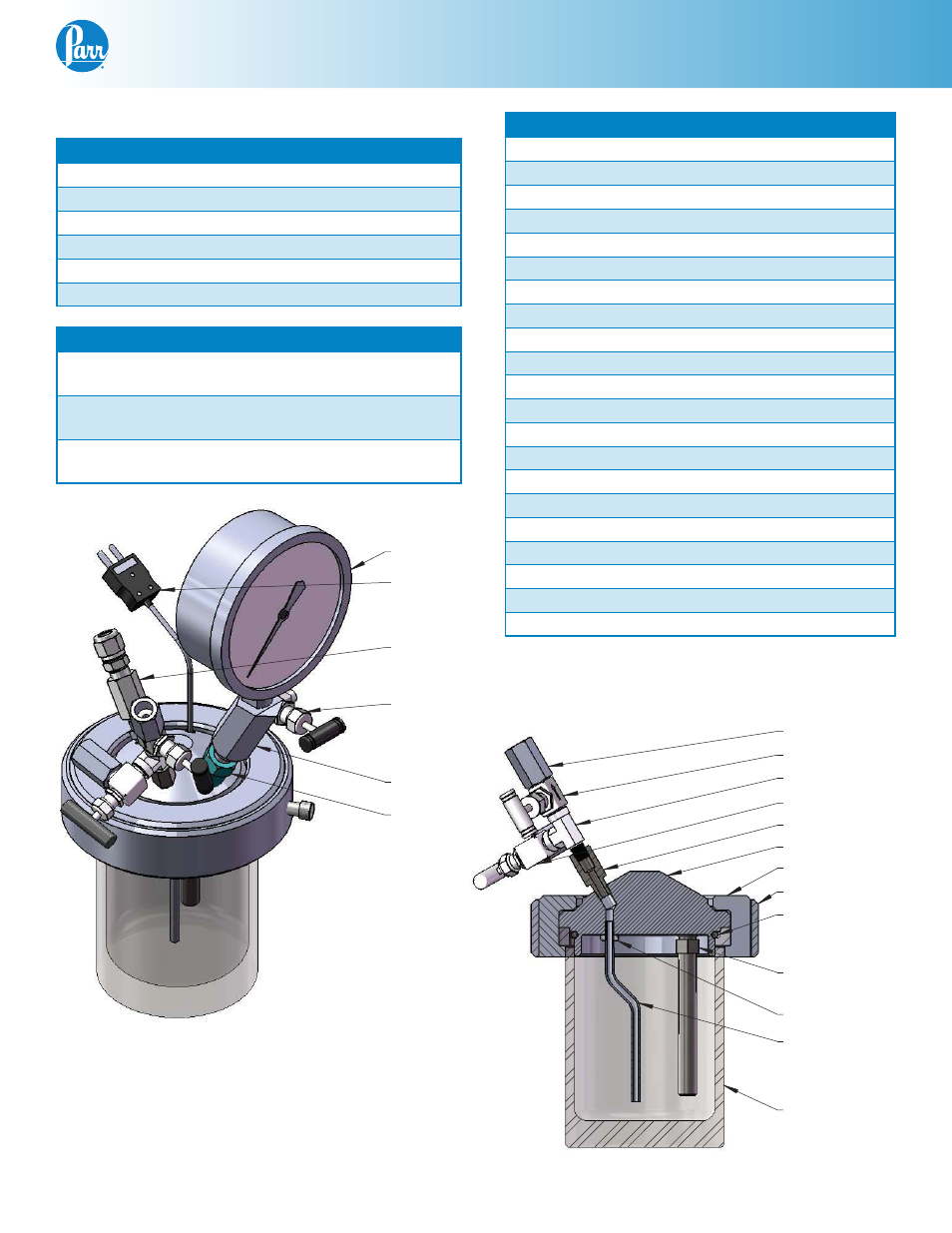

Parr Instrument 4700 - Manual (Page 23)

General Purpose Pressure Vessels
w w w . p a r r i n s t . c o m 23
A472E6
THERMOCOUPLE, 2L
288VBAD MALE CONNECTOR
208HC20
GAGE ADAPTER
A122VB
STRAIGHT VALVE
A472E2
THERMOCOUPLE, 1L
56HC SERIES
PRESSURE GAGE
A888HC2 R/D HOLDER ASSY
526HC/581HC STYLE R/D
366VBAA HEX COUPLING
209HC4
ADAPTER BUSHING
Series 4600Q-4620Q
Model Size Head Style
4601Q 1000 mL One opening, TBD
4602Q 2000 mL One opening, TBD
4611Q 1000 mL “B” Socket
4612Q 2000 mL “B” Socket
4621Q 1000 mL VGR, thermowell
4622Q 2000 mL VGR, thermowell
Working Limits
Maximum Working Pressure
(T316SS) 1900 psi (131 bar)
Maximum Working Temperature
with FKM O-ring 225 °C
Maximum Working Temperature
with FFKM O-ring 300 °C
Part No. Description O-ring Seal
2326HC2 Head, “B” Socket
2326HC3 Head, "B" Socket & thermowell
2740HC30 Head, VGR, thermowell
2742HC10 Cylinder, 1000 mL, 5.32" deep
2742HC20 Cylinder, 2000 mL, 10.44" deep
2245HC Split Ring, pair
A233HC Drop Band with Screw
233HCF Drop Band Screw
2741HCJV O-Ring FKM
2741HCJK O-Ring FFKM
265HC12 Thermowell for 2000 mL vessel
265HC7 Thermowell for 1000 mL vessel
48HC Thermowell Gasket, Silver
48HCFG Thermowell Gasket, Gold Plated
A472E2 Thermocouple, 9-1/2”, 1000mL
A472E6 Thermocouple, 15-1/2”, 2000mL
2584HC Head/Cylinder Service Fixture
398HC Pyrex Liner, 1000 mL
398HCHA PTFE Liner, 1000 mL
399HC Pyrex Liner, 2000 mL
399HCHA PTFE Liner, 2000 mL
(OPTIONAL)
914HC LOCK NUT
A146VB ANGLE VALVE
265HC7 THERMOWELL, 1L
260HC2 EXTENSION
2245HC SPLIT RING, QC
48HC GASKET
A233HC DROP BAND ASSY
2741HCJV O-RING
2740HC30 HEAD
257HC27 DIP TUBE, 2L
179VBAD STREET TEE
265HC12 THERMOWELL, 2L
A122VB STRAIGHT VALVE
2X 420HC ADAPTER
257HC26 DIP TUBE, 1L
(OPTIONAL)
2742HC10 CYLINDER, 1L
2742HC20 CYLINDER, 2L
*For special material vessels add material code
for head, cylinder or internal fittings per page 12.
(OPTIONAL)
914HC LOCK NUT
A146VB ANGLE VALVE
265HC7 THERMOWELL, 1L
260HC2 EXTENSION
2245HC SPLIT RING, QC
48HC GASKET
A233HC DROP BAND ASSY
2741HCJV O-RING
2740HC30 HEAD
257HC27 DIP TUBE, 2L
179VBAD STREET TEE
265HC12 THERMOWELL, 2L
A122VB STRAIGHT VALVE
2X 420HC ADAPTER
257HC26 DIP TUBE, 1L
(OPTIONAL)
2742HC10 CYLINDER, 1L
2742HC20 CYLINDER, 2L
