Parr Instrument 4700 - Manual (Page 21)

General Purpose Pressure Vessels
w w w . p a r r i n s t . c o m 21
*For special material vessels add material code for head, cylinder or internal fittings per page 12.
A833HC MALE CONNECTOR
A472E4 THERMOCOUPLE
A122VB STRAIGHT VALVE
420HC ADAPTER
Common Parts List for Series 4790
Part No. Description
195VBAD Tee, 1/8” NPT
836HC Gage Adapter
420HC Adapter, A socket x 1/8” NPT
A888HC2
Rupture Disc Assembly
(See Manual No. 231M)
526HCPD Rupture Disc, 1000 psi
526HCPF Rupture Disc, 2000 psi
526HCPG Rupture disc, 3000 psi
526HCPH Rupture disc, 5000 psi
593HCPD Pressure Gage, 0-1000 psi
593HCPF Pressure Gage, 0-2000 psi
593HCPG Pressure Gage, 0-3000 psi
593HCP50AD Pressure Gage, 0-5000 psi
A122VB Valve, Straight, 1/8” NPT (M)
Recommended Bolt Torque
PTFE or Flexible Graphite
15 ft - lbs max
Part No. Description
A146VB Valve, Angle, 1/8” NPT (M)
A472E4 Thermocouple, 5-1/2”
A472E Thermocouple, 7-1/2”
A833HC Connector for Thermocouple
1467HC Thermowell
A138CA Thermowell Connector
1443HC Dip Tube, 25 mL
1443HC2 Dip Tube, 50 mL
1443HC3 Dip Tube, 100 mL
2589HC Head/Cylinder Service Fixture
1431HC Pyrex Liner, 50 mL
1431HC2 Pyrex Liner, 100 mL
1431HCHA PTFE Liner, 50 mL
1431HC2HA PTFE Liner, 100 mL
454HC COMPRESSION RING
429HC2 GASKET
A456HC DROP BAND W/SCREW
1443HC DIP TUBE, 25mL
593HC SERIES PRESSURE GAGE
A146VB ANGLE VALVE
836HC GAGE ADAPTER
154VB 45 DEGREE ELBOW
260HC2 ADAPTER
288VBAD MALE CONNECTOR
2432HC3 HEAD
366VBAA MALE CONNECTOR
526HC SERIES R/D
A455HC SPLIT RING ASSY
A888HC2 R/D HOLDER ASSY
2430HC CYLINDER, 25mL

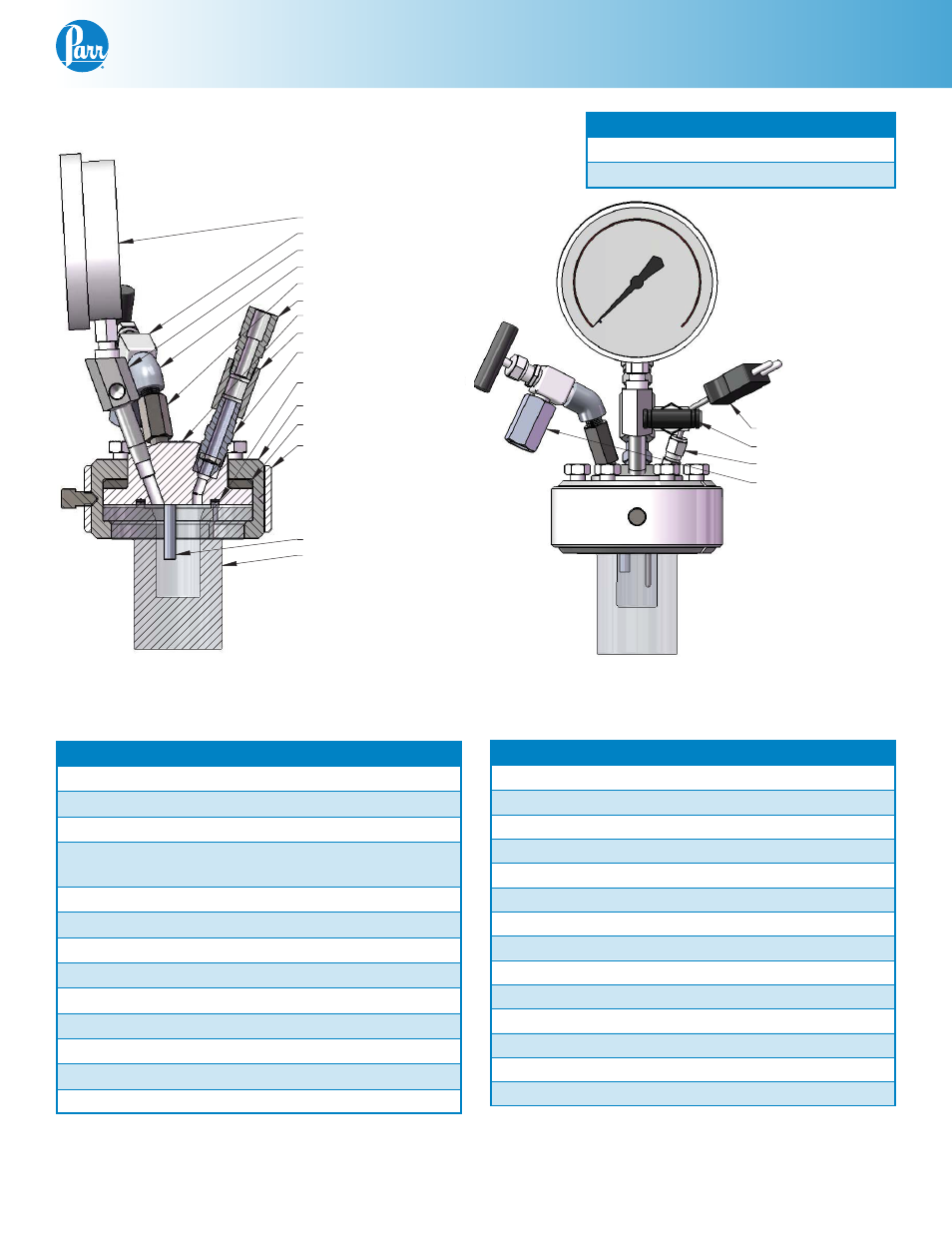

4790 General Purpose Vessel
Flat Gasket Seal and Split Ring
