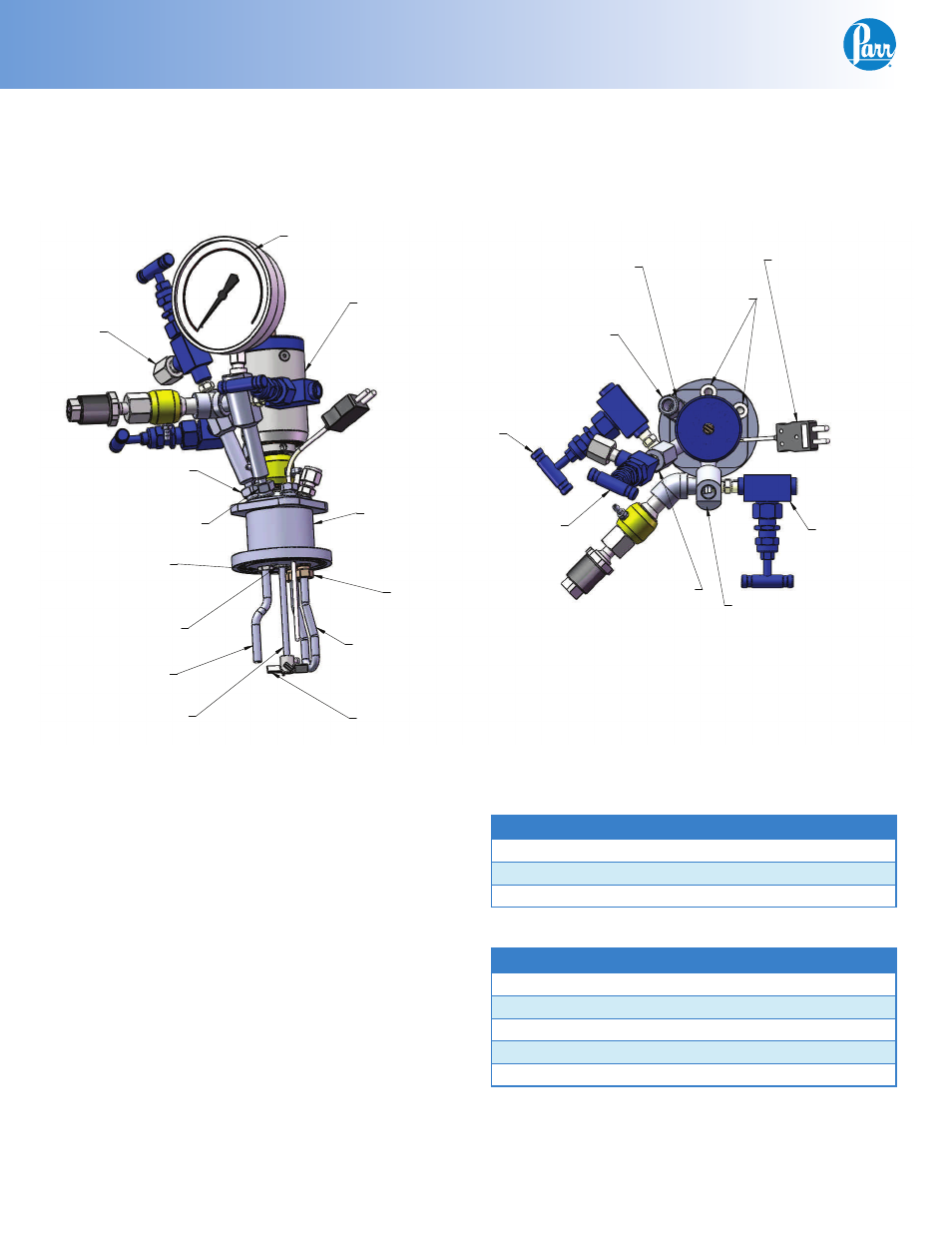

Vessel Closure and Standard Internal Parts
*Special Materials
4560 Series Reaction Vessel Parts List
High Temperature Vessel Fittings
(2000 psig/500°C)
A92HWAD
CONNECTOR
A544VBKL
VALVE
1452HC5
VALVE
A472E
THERMOCOUPLE
W/ 3366HC, 3367HC
280VB NIPPLE
280VB NIPPLE
(BELOW 302VBAD)
302VBAD
A888HC2
(GAGE HIDDEN FOR CLARITY)
GAGE ADAPTER
ADAPTER TEE
1452HC6
SAFTEY HEAD ASSY
CONNECTOR
CONNECTOR
A92HWAD
A544VBKL
A544VB2KL
ANGLE VALVE
3460HC
HEAD
832HC37
DIP TUBE
(OPTIONAL)
35HC
40HC
MAG DRIVE ASSY
A1120HC6
BUSHING
1261HCKL
REF
LOCKNUT
GAGE
593HC SERIES
SHAFT
822HC30
PROPELLER
A837HC
1446HC2
ADAPTER
COOLING LOOP
831HC24
1360HC FERRULE
1359HC NUT
914HC
35HC
40HC
Consult the itemized list for your reactor, provided
along with this manual. For purpose of reactor iden-
tifi cation the following abbreviation codes are used:
RV - Removable Vessel FH - Fixed Head
FG - Flat Gasket Seal SP - Special Alloy
SS - T316 only MD - Magnetic Drive
FMD - Footless Magnetic Drive
* For parts made from alternate materials use the
codes shown below as a suffi x to the standard part
number.
CM - Alloy 400 CC - Alloy 20Cb3
CT - Alloy 600 CA - Titanium G2 or G4
CG - Alloy b-2 CH - Alloy C-276
CX - Zirconium
Cylinders*
Part No. Description Code
452HC Cylinder, 300 mL FG
452HC2 Cylinder, 450 mL FG
452HC3 Cylinder, 600 mL FG
Heads*
Part No. Description
3619HC Head, for thermocouple RVMD
3619HC* Head, for thermowell RVMD
3460HC* Head, for thermocouple FHMD
3460HC2* Head, for thermowell FHMD
3460HC3 Head, for thermocouple FHFMD
* For Special Fittings
