Mini Bench Top Reactors
w w w . p a r r i n s t . c o m 17
4560 Series Reaction Vessel Parts List
Standard Vessel Fittings
(3000 psig/ 350°C)
Consult the itemized list for your reactor, provided
along with this manual. For purpose of reactor iden-
tifi cation the following abbreviation codes are used:
RV - Removable Vessel FH - Fixed Head
FG - Flat Gasket Seal OR - O-ring Seal
SS - T316 only SP - Special Alloy
MD - Magnetic Drive
FMD - Footless Magnetic Drive
* For parts made from alternate materials use the
codes shown below as a suffi x to the standard part
number.
CM - Alloy 400 CC - Alloy 20Cb3
CT - Alloy 600 CA - Titanium G2 or G4
CG - Alloy b-2 CH - Alloy C-276
CX - Zirconium

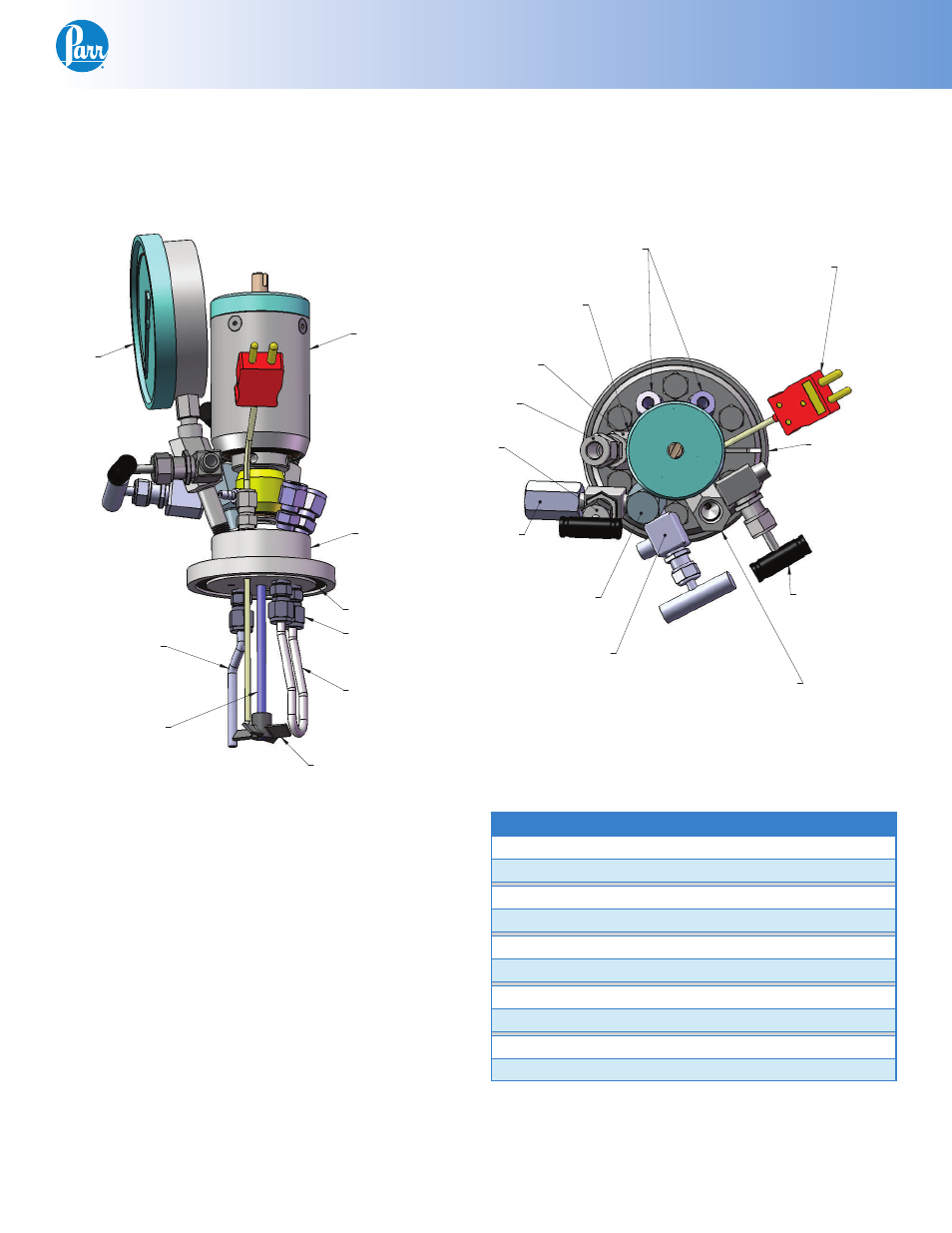

Vessel Closure and Standard Internal Parts
822HC15
A1120HC6
MAG DRIVE ASSY
593HC
SERIES
GAGE
457HC2 GASKET REF
831HC
COOLING LOOP
TYP (3) PLACES
MALE CONNECTOR
PROPELLER
A837HC
DIP TUBE
832HC
SHAFT
A834HC
818HC
HEAD
DO NOT SCALE DRAWING
03-13-08
211 53rd STREET
APPROVED
BY
BY
SCALE
DWG NO. DATE
DRAWN
DESCRIPTION
REVISIONS
DATE
HEAD ASSY, 300mL RH
MOLINE, ILLINOIS 61265
1:1 SIZE
PCW
FOR
OR BETTER
TOLERANCES
IN INCHES
UNLESS OTHERWISE SPECIFIED
1/X .... ±1/64
.00 .... ±.010
.000 .... ±.003
ANGULAR ... ±1/2°
UNMARKED RADII .03"
MACHINED SURFACES:
64 C
4560
COMPANY.
DRAWN IN 3rd ANGLE PROJECTION
PROPRIETARY
NEITHER THE DRAWING
NOR INFORMATION
CONTAINED HEREIN
MAY BE COPIED,
REPRODUCED, OR
OTHERWISE USED
WITHOUT WRITTEN
PERMISSION FROM
PARR INSTRUMENT
PARR INSTRUMENT CO.
SHEET 24
REFERENCE, STAINLESS VESSEL
A888HC2
SAFETY HEAD ASSY
(BELOW 366VB)
ADAPTER TEE
835HC
366VB
A92HWAD
COUPLING
CONNECTOR
W/ A833HC CONNECTOR
A472E THERMOCOUPLE
A122VB
CONNECTOR
STRAIGHT
VALVE
ADAPTER
420HC
STRAIGHT
VALVE
A122VB
ANGLE VALVE
A146VB
288VB
(GAGE HIDDEN FOR CLARITY)
GAGE ADAPTER
836HC
A455HC SPLIT
RING ASSY W/
A456HC DROP
BAND
REF
04-10-08
Cylinders*
Part No. Description Code
452HC8 Cylinder, 100 mL FG
2342HC4 Cylinder, 100 mL OR
452HC9 Cylinder, 160 mL FG
2342HC5 Cylinder, 160 mL OR
452HC Cylinder, 300 mL FG
2342HC Cylinder, 300 mL OR
452HC2 Cylinder, 450 mL FG
2342HC2 Cylinder, 450 mL OR
452HC3 Cylinder, 600 mL FG
2342HC3 Cylinder, 600 mL OR
* For Special Fittings
