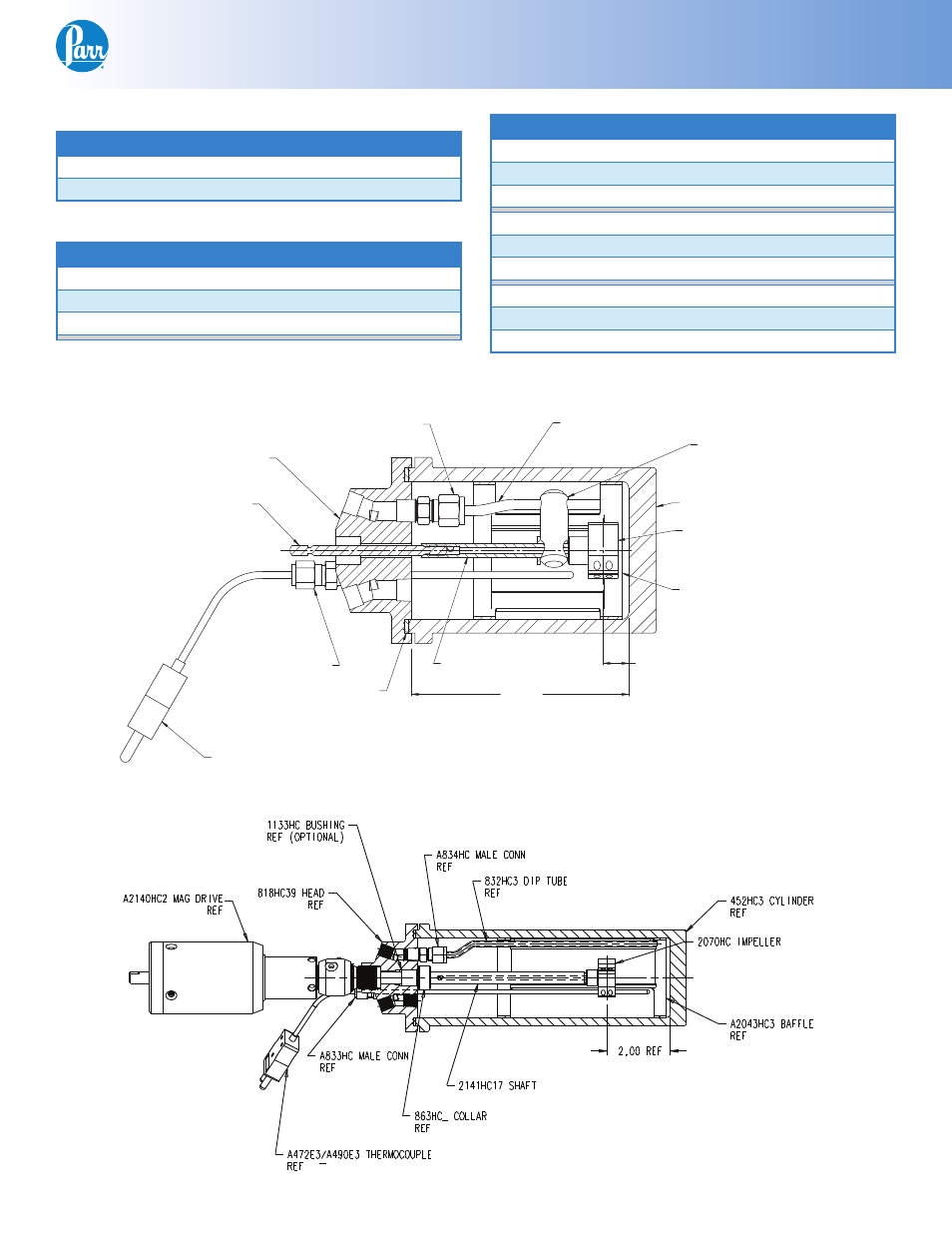

4563 Gas Entrainment Assembly
600mL Removable Vessel
NOTE:
TEMP DIP TUBES USE A1870HC
FOR 1/4" OD SPECIAL ALLOY AND HIGH
REF
1869HC OR 1869HC2KF
A1870HC2 STIRRER BRKT REF
BUSHING NOT FURNISHED
SEE NOTE
832HC DIP TUBE A834HC MALE CONN
REF
2027HC SHAFT
REF
REF
2028HC5 SHAFT
818HC HEAD
A833HC MALE CONN
2070HC IMPELLER
A472E/A490E THERMOCOUPLE
457HC2 GASKET
A2043HC BAFFLE
REF
REF
452HC CYLINDER
REF
REF 3.94
.46 REF
4561 Gas Entrainment Assembly
300mL Removable Vessel
Gas Entrainment Upper Shaft
Part No. Description Code
2027HC 2.83” Shaft, upper MV MD
2027HC3 3.94” Shaft, upper FH MD
Gas Entrainment Lower Shaft
Part No. Description Code
2028HC5 3.04” Shaft, 300 mL MD
2141HC1 8.16” Shaft, 300 mL FH FMD
2141HC15 7.11” Shaft, 300 mL MV FMD
Part No. Description Code
2028HC6 4.04” Shaft, 450 mL MD
2141HC12 9.72” Shaft, 450 mL FH FMD
2141HC16 8.61” Shaft, 450 mL MV FMD
2028HC7 5.54” Shaft, 600 mL MD
2141HC13 11.22” Shaft, 600 mL FH FMD
2141HC17 10.11” Shaft, 600 mL MV FMD
2028HC8 1.18” Shaft, 100/160 mL MD
2141HC14 6.85” Shaft, 100/160 mL FH FMD
2141HC18 5.73” Shaft, 100/160 mL MV FMD
