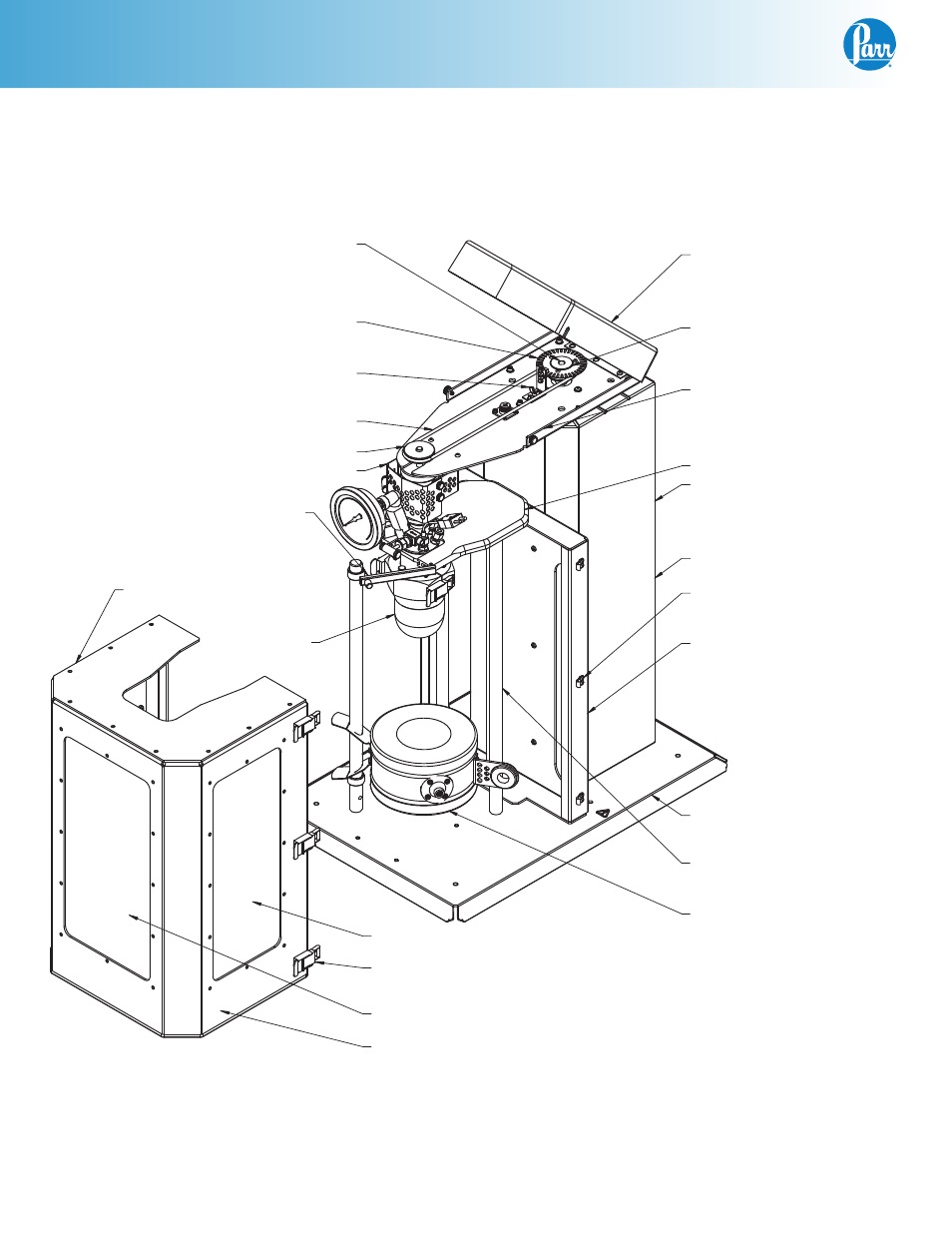

2656HC BELT GUARD
(3) SA1332RP04
2663HC HINGE, BELT GUARD
(4) SB1932BT06
(4) 2186HC
(8) SW19FT
SN1632WG
(3) SW16FT
847HC9 DRIVE BELT 2:1 DRIVE
(3) SA1632RP06
857HC4 DRIVEN PULLEY
(2) TN1140HL
(4) TW19NL
A1001E6 SENSOR ASSY
847HC10 DRIVE BELT 1:1 DRIVE
X2170A MAG DRIVE SHIELD
1355EES MOTOR 1/8 HP
1564HC OPTICAL WHEEL 1:1
1564HC2 OPTICAL WHEEL 2:1
(3) SA1332RP04
2206HC RETAINER
2207HC PANEL SCREW
1374HCJV O-RING
(5) TW19NL
2662HC PULLEY
(5) SB1932SC08
2655HC OVERARM PLATE
(2) 2446HC THUMB SCREWS
2-STAGE, HD DRIVE
2-STAGE, LD DRIVE
799DD BUSHING
(10) SA1632RP06
2659HC BACKPLATE, LOWER
TW50FT
(6) 2246HC STRIKERS
(12) SB1332BT06
(12) TN1332HL
2652HC2 GUARD, REAR
2661HC PULLEY
(12) TN1332HL
(5) SW19FT
2667HC SUPPORT, VESSEL
(REAR OF STAND ASSEMBLY)
2658HC BACKPLATE, UPPER
XC0240 STRIPPING
(8) TA1632PP06
A2651HC BASE ASSY W/FEET
(12) SB1332BT06
2664HC SUPPORT ROD
2668HC STIFFENER
(10) TN1932HL
(3) 2660HC SUPPORT RODS
(3) TW50FT
(24) TN1632HL
HEATER ASSY (REF)
(2) 2202HC COLLAR
(3) SN5013HX
(2) 2654HC3 SIDE GUARDS
2653HC2 FRAME, FRONT
XC0240 STRIPPING
SN5013HX
2208HC WASHER, SPLIT
SC1932SC08 SET SCREW
(12) TN1632HL
2666HC2 PLATE SHIELD TOP
(9) TN1632HC
(6) 2244HC LATCHES
2654HC2 FRONT GUARD
300mL GLASS
SHOWN (REF)
A2230HC SERIES
5100 OVERALL DIMENSIONS OF APPERATUS: 16.50" WIDE X 23.50" DEEP X 29.57" TALL
2657HC2 ENCASEMENT
(5) TN1332HL
Stand for 5100
160 - 600 mL Vessels
5100 OVERALL DIMENSIONS OF APPARATUS: 16.50" WIDE X 23.50" DEEP X 29.57" TALL
