5100 Low Pressure Reactors
19
Note: Liter Stands (larger) can be converted to accept Mini Vessel Assemblies. Mini Stands are for
Mini Vessel Assemblies only.
2221HC BEARING HSG
4X SA1632RP06
2226HC SNAP RING
4X SB3716HX16
.18KW ATEX MOTOR
2222HC5
4X SB1932BT06
3X SN5013HX
2064EKX
NOT SHOWN
A2651HC3
4X SW37FT
4X TA1632PP06
FRONT GUARD PARTS
2209HC3
2187HC BEARING
MIDPLATE
3452HC3
4X TW19NL
4X SW25NL
3X TW50FT
BASEPLATE ASS'Y
4X SN3716HX
FLEX COUPLING
3X 2198HC10 SUPT ROD
DRIVE SHAFT
2657HC4
ENCASEMENT
4X SB2528SC06
2658HC3 BACKPLATE
A A
DURING ASSEMBLY
TO SH3118XX12 GROUND STUD
NUT AND SW31FT FLAT WASHER
ADD 2X SN3118HL 5/16-18 KEPS
A-A SECTION

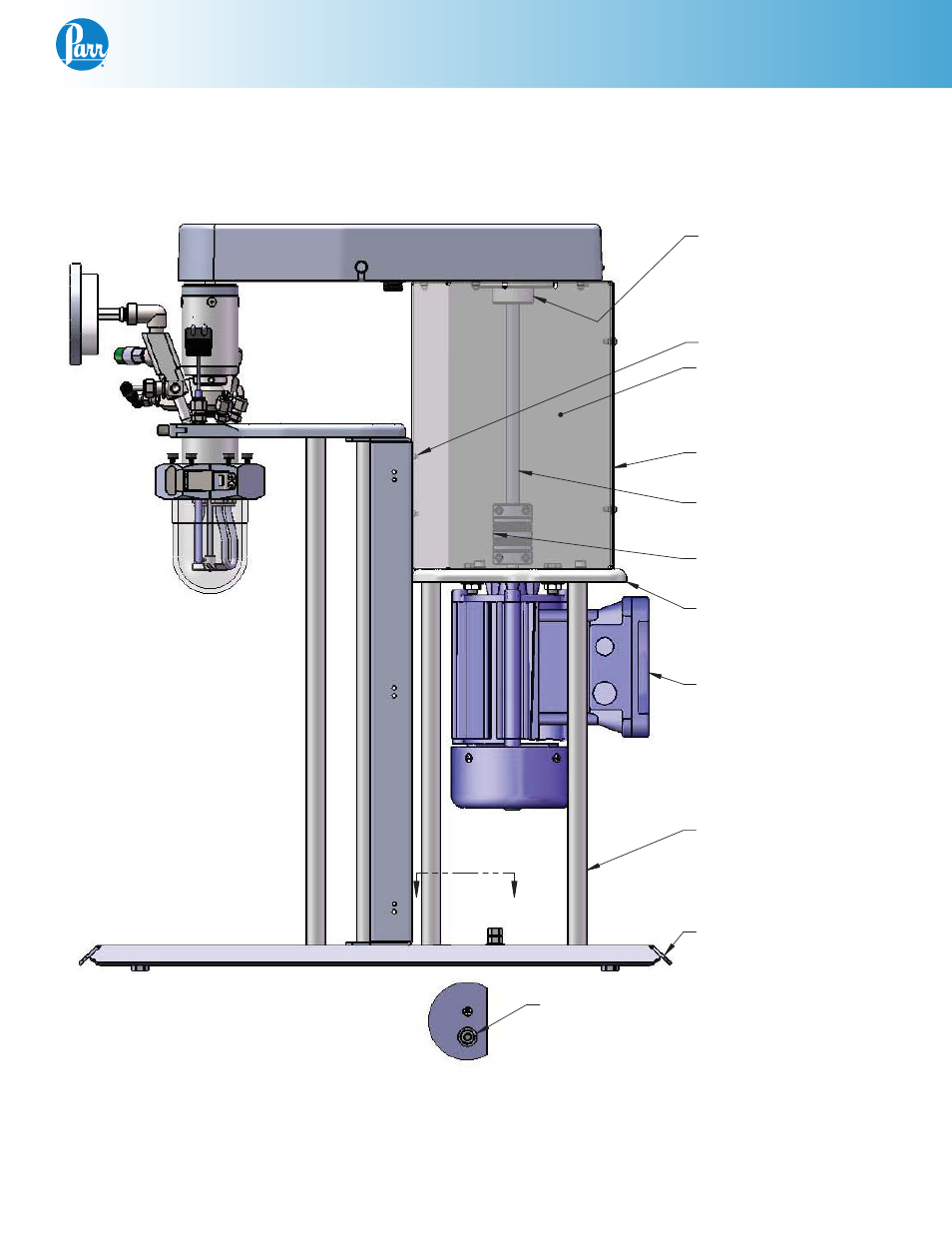

Product Features and Part Identification
5100 Stand
Mini Stand (160 mL - 600 mL)
