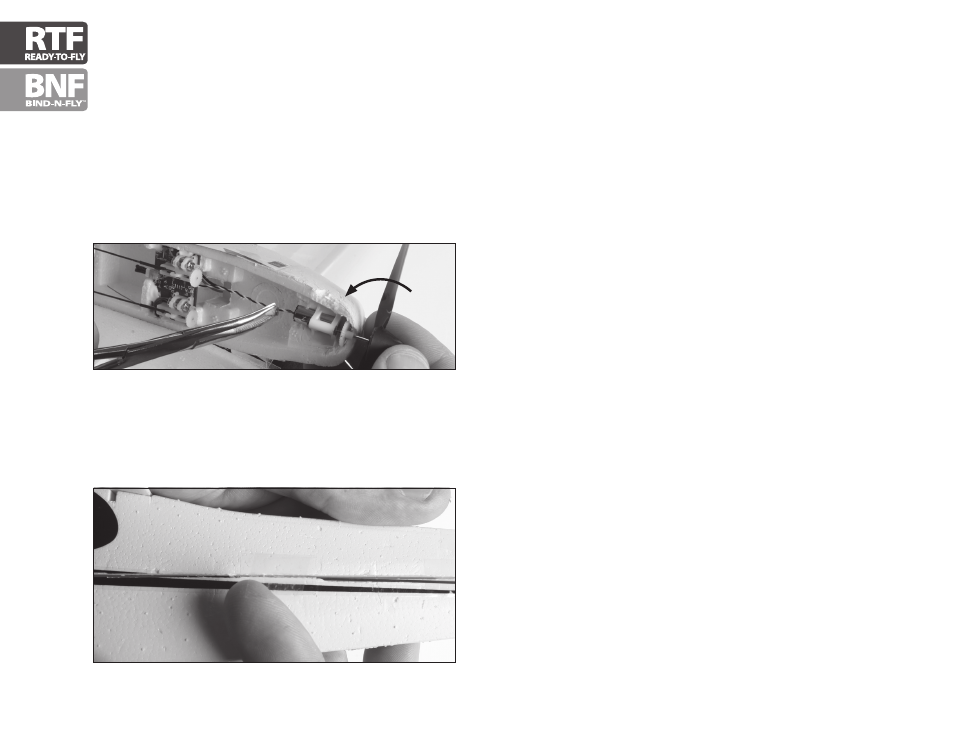

4. Gently pull on the spur gear and the prop shaft will slide
out of the gearbox. You may need to cut away a small
portion of foam to allow the spur gear to slide forward out
of the gearbox.
5. Thread the 100mm x 60mm prop and spinner on to the
new prop shaft by holding the spur gear and turning the
prop clockwise.
6. Slide the new prop shaft back into the gearbox.
7. Place the nylon nut on the back of the prop shaft. Spin the
prop and spur gear counterclockwise. The nylon nut will
thread onto the prop shaft.
counterclockwise
8. While holding the nylon nut in place, gently turn the spur
gear counterclockwise to ensure the nut is snug.
9. Tape the fuselage back together with clear tape. Use
foam-safe CA and reattach the dummy motors on each
side of the fuselage.
Replacement Parts
Optional Parts
PKZ1035 120mAh 1S 3.7V Li-Po Battery
PKZ3901 Prop with Spinner: 100 x 60mm
PKZ3903 Decal Sheet
PKZ3904 Prop Shaft with Nut
PKZ3906 Main Landing Gear Set
PKZ3907 Tail Gear Set
PKZ3916 6mm Motor
PKZ3920 Wing
PKZ3922 Pushrod Set
PKZ3924 Complete Tail
PKZ3928 Complete Gearbox
PKZ3967 Bare Fuselage
PKZ3968 Fuselage with Electronics
PKZ3351 Receiver/ESC Board
PKZ3341 2.4GHz DSM2 4-Channel Transmitter
EFLA209 E-flite Foam-Safe CA (medium)
EFLA208 E-flite Foam-Safe Activator
EFLC1004AC E-flite Celectra 4-Port Charger with AC Adapter
SPMR5500
Spektrum DX5e Transmitter (Mode 2)
SPMR6600 Spektrum DX6i Transmitter (Mode 2)
Note: For minor repairs use foam-safe CA (EFLA209) or clear tape.
