21 22
Replacing the Prop Shaft
PKZ1035 3.7V 120mAh Li-Po Battery
PKZ3507 Tail Wheel: P-51D Mustang
PKZ3527 Gearbox without Motor: P-51D Mustang
PKZ3528 Prop Shaft: P-51D Mustang
PKZ3601 130mm x 70mm Prop with Spinner: P-51D Mustang
PKZ3602 Decal Sheet: P-51D Mustang
PKZ3603 Landing Gear: P-51D Mustang
PKZ3616 Motor: P-51D Mustang
PKZ3620 Wing with Ailerons: P-51D Mustang
PKZ3622 Aileron Pushrod and Linkages: P-51D Mustang
PKZ3623 Aileron Bellcrank: P-51D Mustang
PKZ3624 Motor and Gear Box: P-51D Mustang
PKZ3625 Complete Tail with Accessories: P-51D Mustang
PKZ3626 Elevator and Rudder Pushrod Set: P-51D Mustang
PKZ3667 Bare Fuselage with Exhaust: P-51D Mustang
SPMAR6400 DSM2 6-Channel Ultra Micro Receiver with ESC and Servos
SPMAS2000 1.5 g Linear Servo
PKZ3052 Battery Connector with Wire
EFLB1101S 3.7V 110mAh Li-Po Battery
EFLC1004
E-flite Celectra 4-Port Charger
EFLC1005 6V 1.5A AC Power Supply
SPM6825 Linear Servo Reverser
Note: For minor repairs use foam safe CA (EFLA208) or clear tape.
Replacement Parts
Optional Parts
The propeller is threaded onto the shaft of the gearbox.
1. To remove propeller, open the
fuselage by cutting through the
decal on one side of the fuselage.
2. Hold the spur gear with your
finger and spin the propeller off
the shaft.
3. Thread new 130mm x 70mm
prop and spinner onto the
gearbox shaft and tape the
fuslage back together with clear tape.
You may find that you need to replace the prop shaft in the gearbox
should it become damaged. To replace the prop shaft:

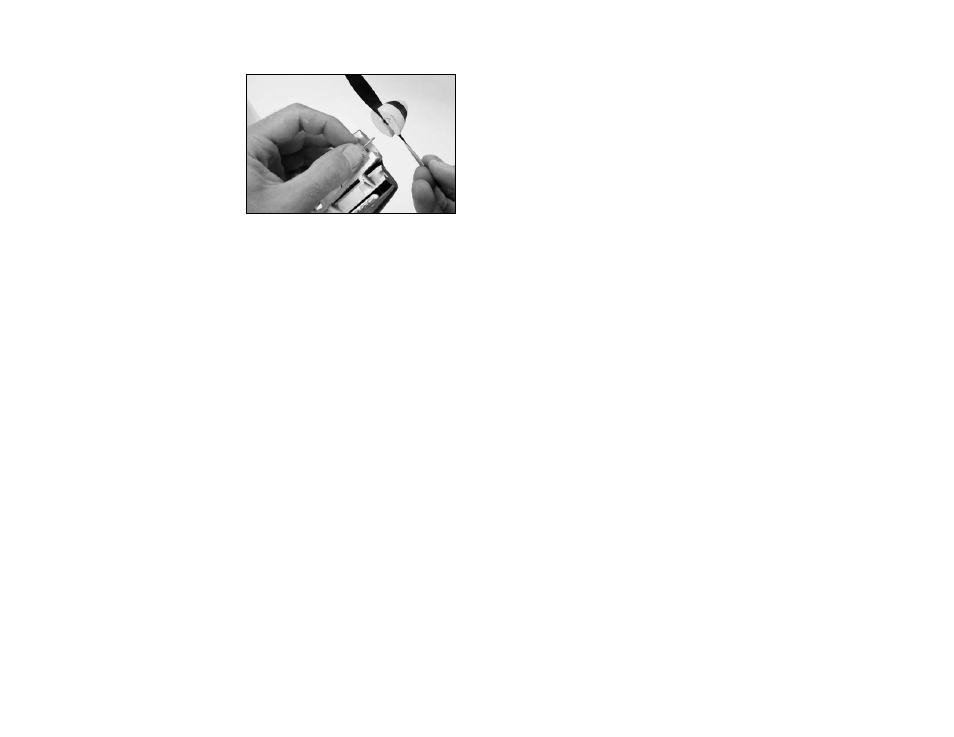

1. Gently grasp the white nylon nut located at the back of the prop shaft
to prevent it from turning.
2. While holding the nylon nut, rotate the spur gear in a clockwise
direction. The prop shaft will thread out of the nut.
3. Gently pull on the spur gear and prop shaft will slide out of the
gear box.
4. Thread the 130mm x 70mm prop and spinner on to the new prop shaft
by holding the spur gear and turning the prop in a clockwise direction.
5. Slide the new prop shaft back into the gear box.
6. Place the nylon nut on the back of the prop shaft. Spin the prop and
spur gear in a counterclockwise direction. The nylon nut will thread onto
the prop shaft.
7. While holding the nylon nut in place, gently turn the spur gear
counterclockwise to ensure the nut is snug.
Replacing the Propeller
