Tilt A

ngle

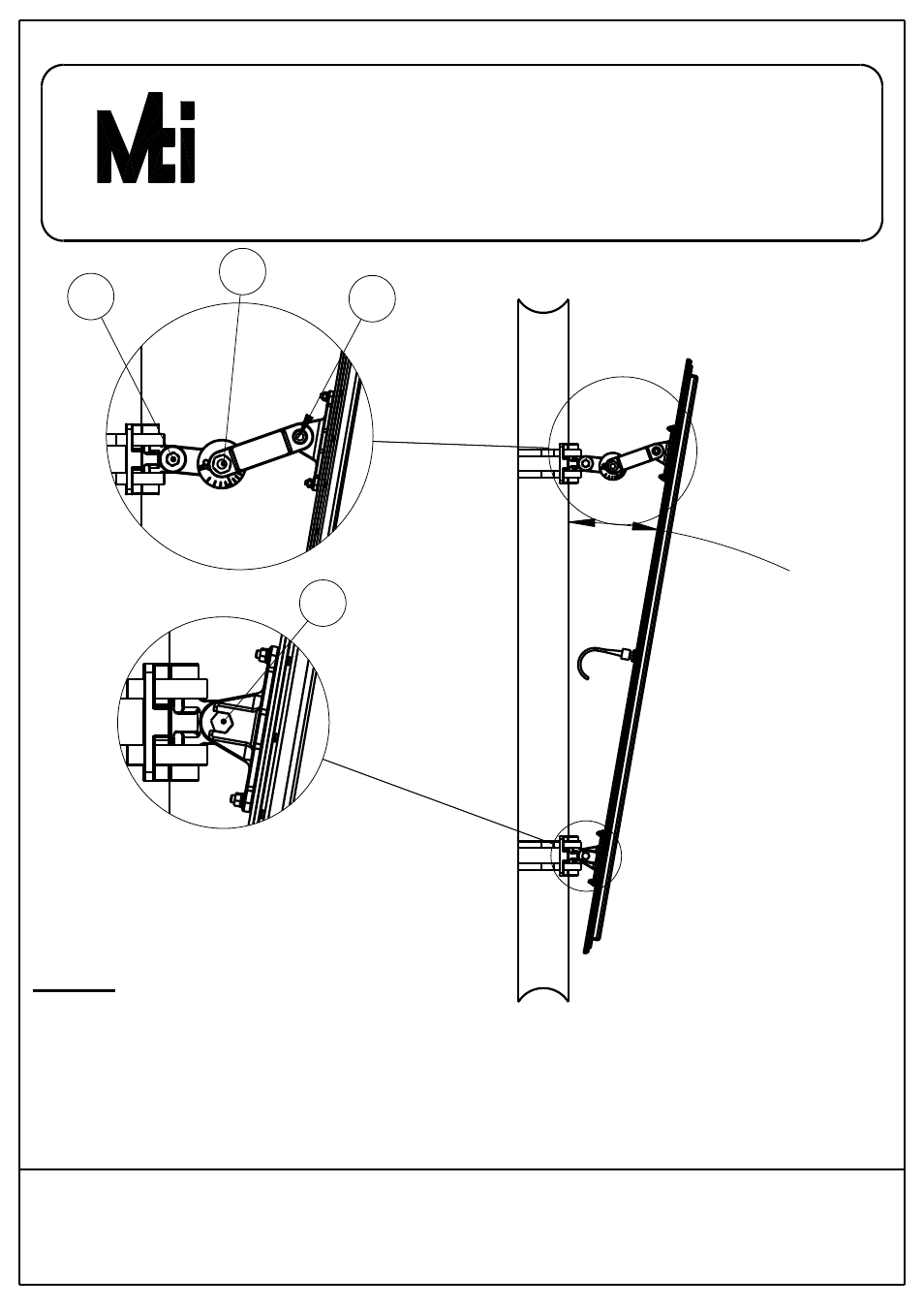

STEP 6

Align the antenna tilt by stretching the top
mount and reading the angle on the "dial", item 17 .
Tighten bolts item 7 with torque of 24Nm,
bolt item 11 with torque of 50Nm .

WIRELESS EDGE

SHEET 6 OF 6

RD41425500C/REV-A
