Page 5

POLE

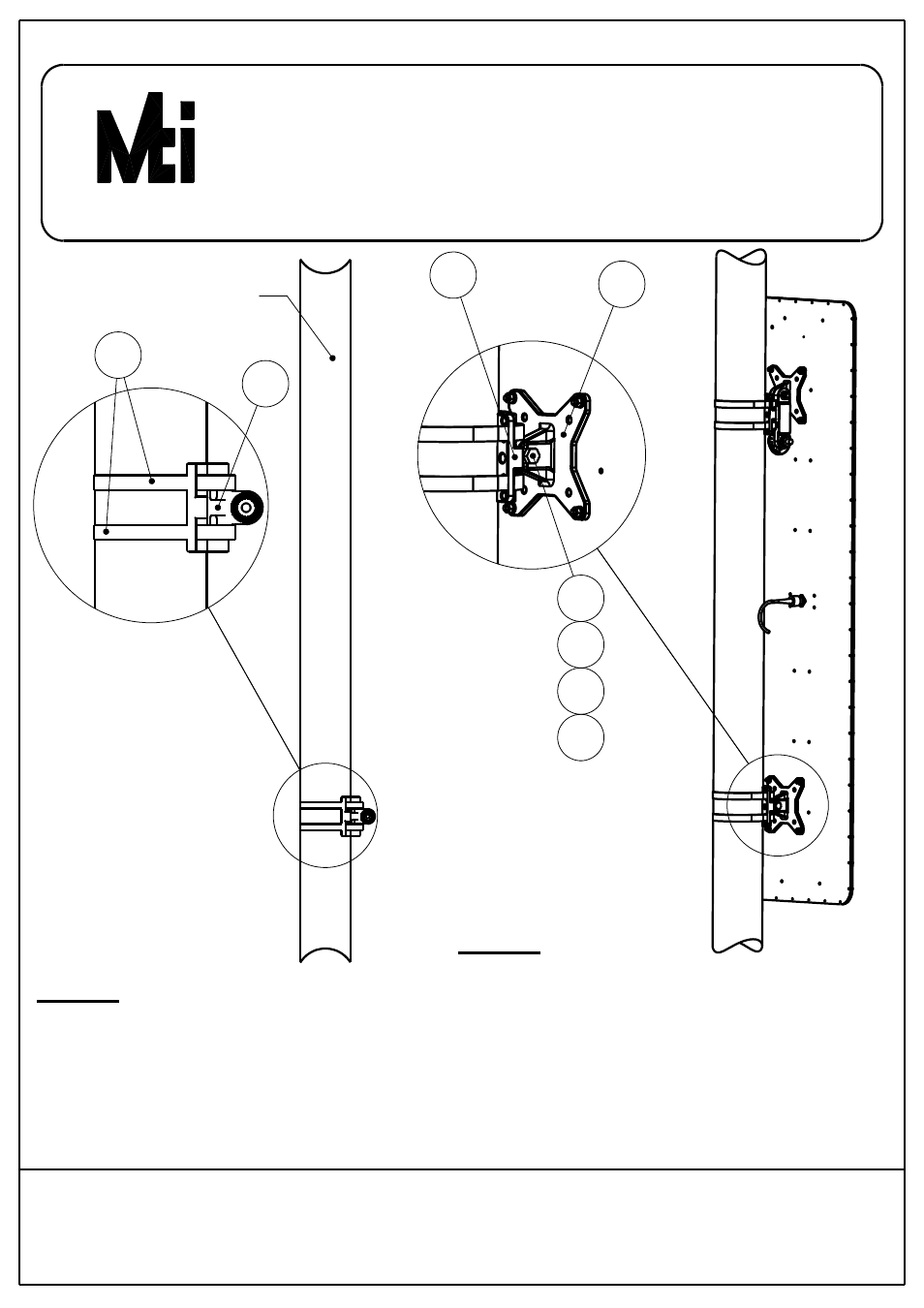

STEP 4
Connect bracket item 1
to pole using bands item 2.
Use tightening torque of 7Nm.
STEP 5
1
2
Connect bottom bracket item 3
on antenna to bracket 1 on pole
using hardware items 7, 8, 9 and 10.
Do not tighten the nut.
Connect the top part of antenna
to pole by tightening the two bands
items 2 around the pole.
Use tightening torque of 7Nm
1
3
7
8
9
10
WIRELESS EDGE
WIRELESS EDGE
WIRELESS EDGE
WIRELESS EDGE
SHEET 5 OF 6
RD41425500C/REV-A
