Installation Instructions for MT-900007
Rev V0, Oct 18 th 2004
1. Assemble your electronics inside the MT-900007. If you are using an adapting plate,
assemble the electronics on the adapting plate and install it inside the enclosure.
2. Make sure the RJ45 jack is on the side facing the M20 threaded hole as shown in Fig-1.
3. Attach the antenna and the mounting kit to the MT-900007 following the relevant assembly
instructions provided with the MT-900007 and the mounting kit MT-120018/A.
4. Seal the Seal-Test Hole and screw the GND terminal following the relevant assembly
instructions provided with the MT-900007.

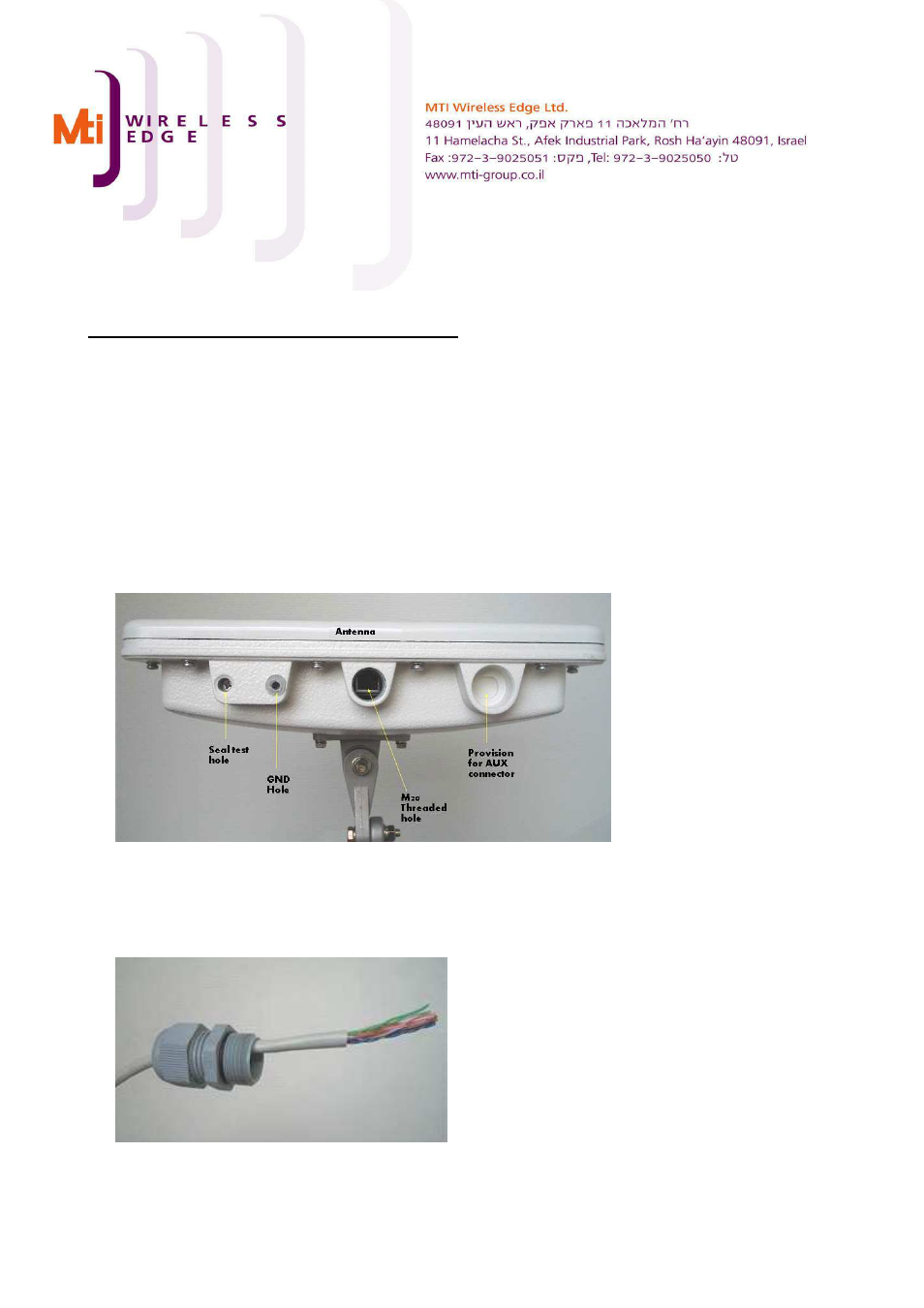

Figure 1: View on the M20 Threaded Hole and the RJ45 Jack Inside
5. Insert the CAT5 cable through the M20 water-tight gland provided with the MT-900007 kit
as shown in Fig-2
Figure 2: CAT5 Cable & M20 Water Tight Gland
