ASSEMBLY

REINSTALLING THE BOLT

Assemble the bolt assembly onto the bolt action slide. Assemble the bolt action slide
onto the magazine tube. Slowly push the bolt action slide into the receiver (see Figure
11a). Looking through the ejection port, align the notch in the slide with the notch in
the bolt (see Figure 13). Align the operating handle raised protrusion with the notch
in the bolt. Push the operating handle into the bolt assembly (see Figure 11b).

BARREL RE-ASSEMBLY

Assemble the barrel to the receiver as described in “UNPACKING AND
ASSEMBLING SHOTGUN” under the section “MOUNTING THE BARREL TO
THE RECEIVER”.

TRIGGER HOUSING ASSEMBLY RE-ASSEMBLY

1. Insert the trigger housing assembly by pressing the bolt release button

while pushing the trigger housing assembly up and rearward (Figure 14).

2. Push in the trigger housing pin until it is flush with the sides of the receiver.

FOREARM RE-ASSEMBLY

Assemble the forearm to the receiver as described in “UNPACKING AND
ASSEMBLING SHOTGUN” under the section “MOUNTING THE FOREARM.”

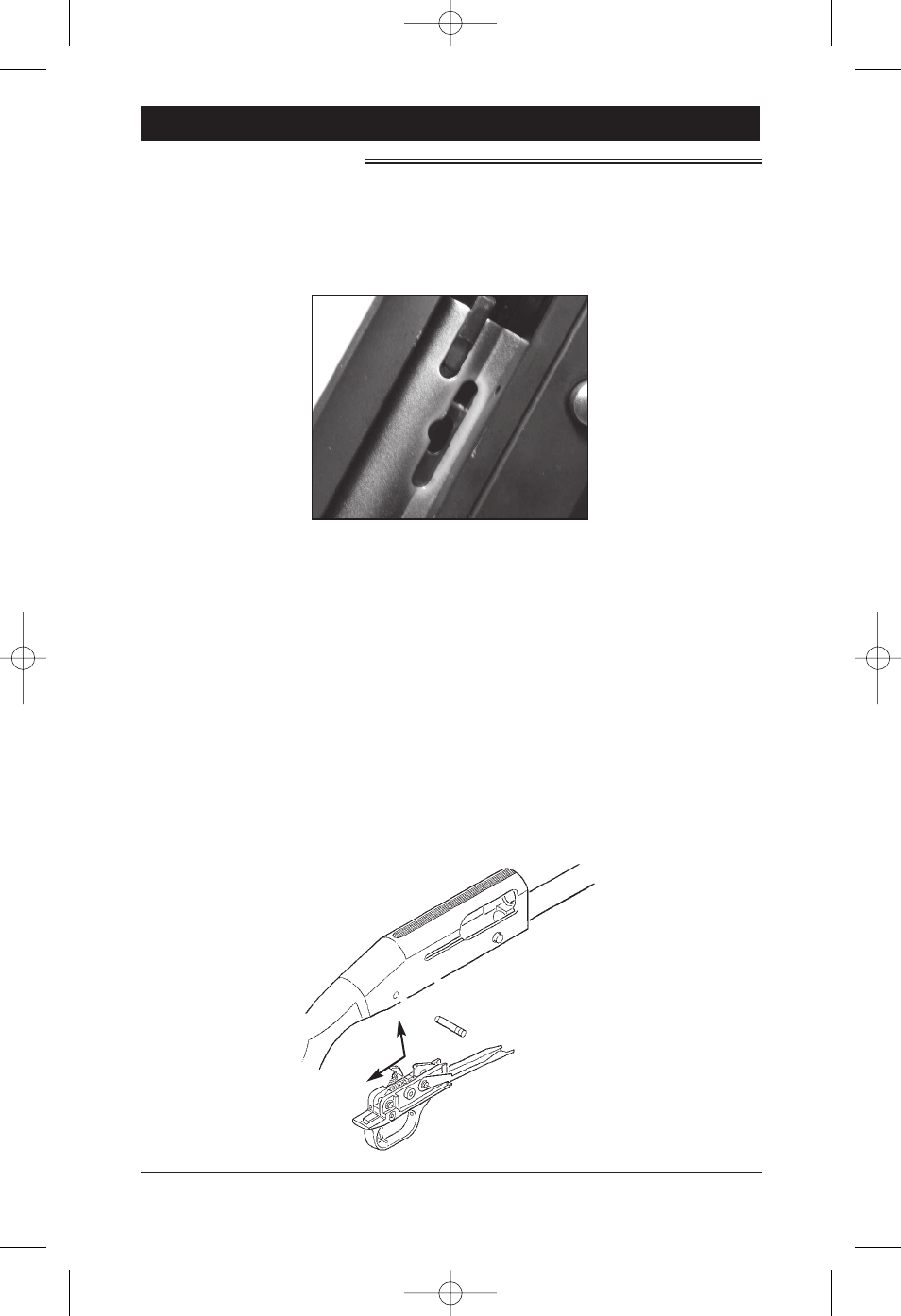

Figure 14
