REMOVING THE BOLT
Slowly push the action (bolt action slide and bolt assembly) back until the notch
in the bolt lines up with the raised protrusion on the operating handle (See
Figures 11a and 11b). Pull the operating handle straight out. Slowly allow the
action, (bolt action slide and bolt assembly) to travel fully forward. Remove the
bolt action slide and bolt assembly from the receiver through the barrel hole. Lift
the bolt assembly from the bolt action slide.
REMOVING THE TRIGGER HOUSING ASSEMBLY
1. Push out the trigger housing retaining pin using a blunt object no larger than
1/8" diameter (See Figure 12). The pin can be pushed out from either direction.
2. Remove the trigger housing assembly by pushing the bolt release button
and sliding the trigger housing assembly forward and down.
The trigger housing assembly is a complex assembly and must not be
disassembled. Disassembly should only be performed at an authorized Product
Service Center or by a qualified gunsmith.
Do not pull the trigger and allow the hammer to fall when the trigger
housing assembly is removed from the receiver. To do so may result in
personal injury or damage to the assembly.
Field disassembly is now complete. The shotgun should not be
disassembled any further for routine cleaning or maintenance. Further
disassembly should only be performed at an authorized Product
Service Center or by a qualified gunsmith.

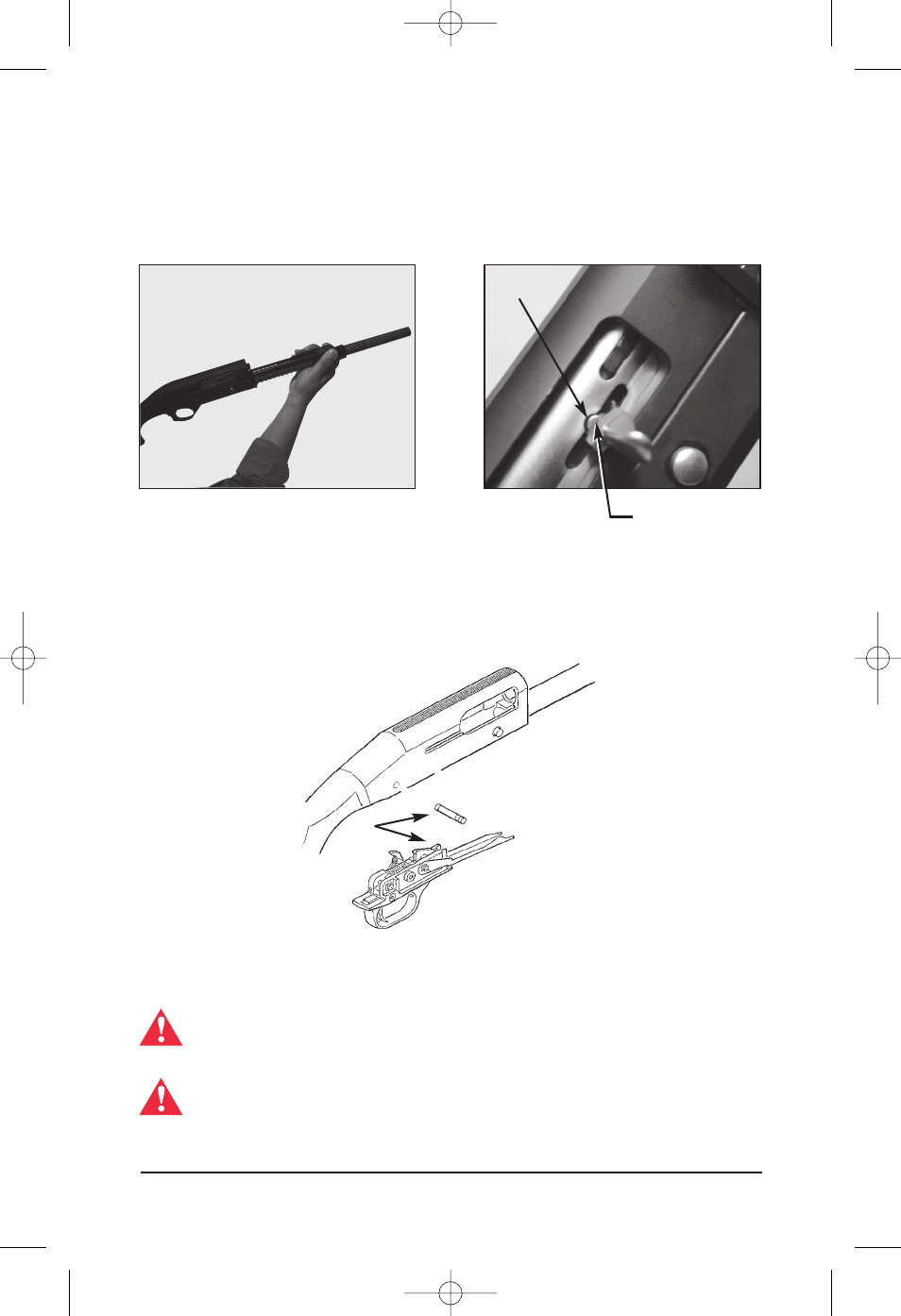

Figure 11b Figure 11a
