20
Step 22

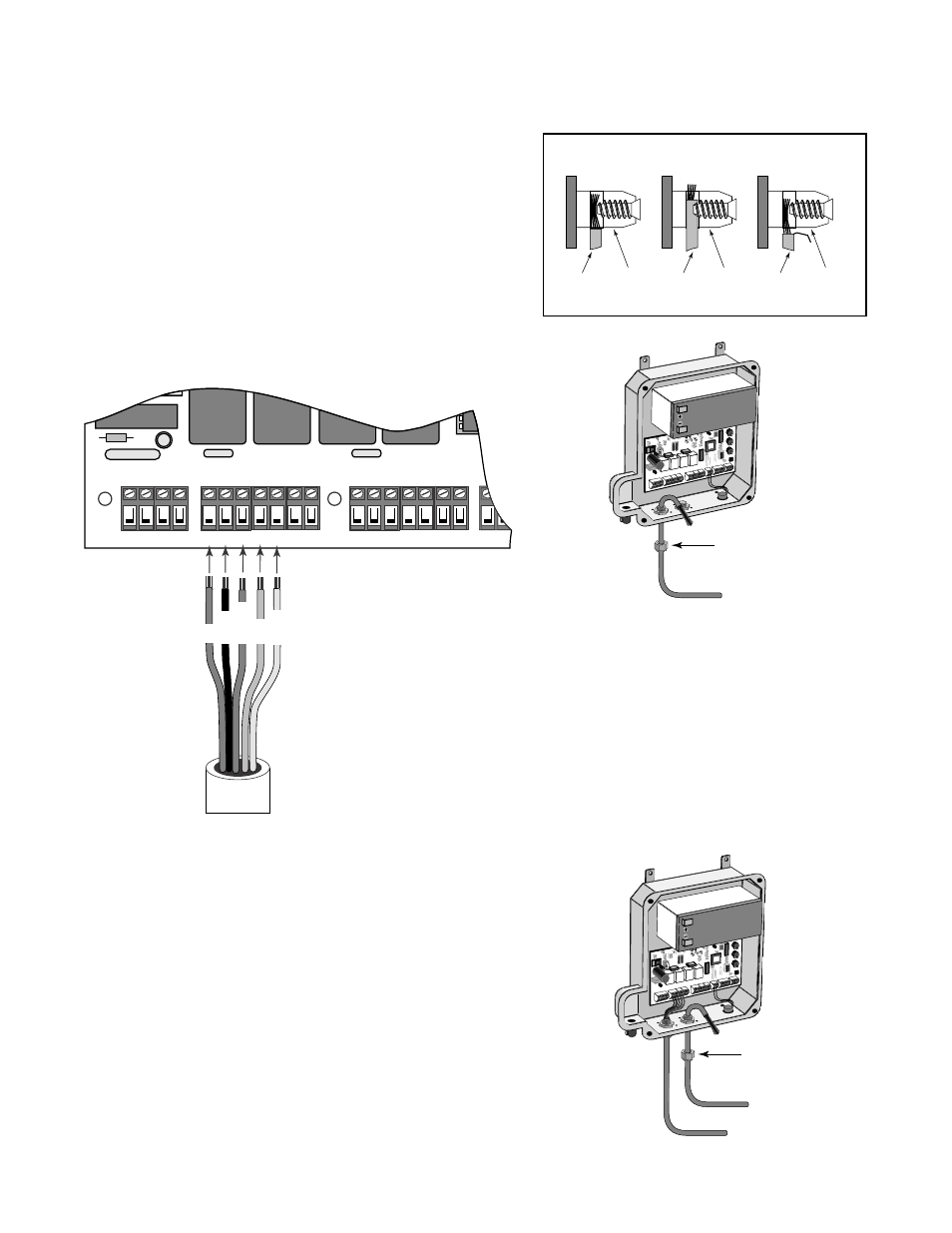

Insert the stripped wires of the 4 1 / 2 foot power cable into the appropriate
terminals on the FIRST OPERATOR terminal block. The green wire should be
inserted into the GRN terminal, the blue wire into BLU, the orange wire into
ORG, black wire into BLK, and the red wire into the RED terminal.
Tighten the set screws against the end of the wires. A dab of petroleum jelly on
each terminal will help prevent corrosion.
Step 23
Review the Installation Overview illustration on page 11 before
proceeding.
Cut a slot into the driveway to accommodate PVC conduit (not provided).
The buried conduit will protect the 40 foot power cable from automobile
tires, lawn mower blades, weed eaters, and grazing animals. Pull the 40
foot second operner power cable through the conduit and lay them into the
slot in the driveway.
Correct Wrong Wrong
Wire
Terminal
Block
Terminal
Block
Terminal
Block Wire Wire
SECOND OPERATOR FIRST OPERATOR POWER IN ALAR
18VAC SOLAR
~ ~ – +
RED BLK ORG BLU GRN CLS EDG OPN EDG RED BLK ORG BLU GRN CLS EDG OPN EDG
Power Cable
from First Opener
RED ORANGE BLA
CK
BLUE GREEN
Step 21
Strip approximately 3/16" of insulation from each wire of the 4 1/2
foot power cable. Twist each exposed wire tightly (there are five
[5] wires inside the power cable sheath). Loosen the sealing nut on
the left strain relief and insert the power cable into control box
through this strain relief. Thread approximately 4" of the power
cable into control box. Retighten strain relief (on the black sheath
of the power cable) until the power cable locks into place.
Connecting Opener Power Cables
First Opener
Second Opener
First Opener Power Cable
Second Opener Power Cable
