SL-2000B Instruction Manual 04.26.12
21
DIP Switches
The Control Board DIP switches must be set to accommodate your particular type of installation. Since the
SNGL / DUAL, SEQ1, and SEQ2 DIP switches are used by dual gate operator systems, they will be discussed
in the following steps.
Step 4
Make sure the control box power switch is OFF.
Step 5
Unscrew and remove the control box cover. Use a small
screwdriver to move the SNGL / DUAL DIP switch to DUAL
(see illustration)
.

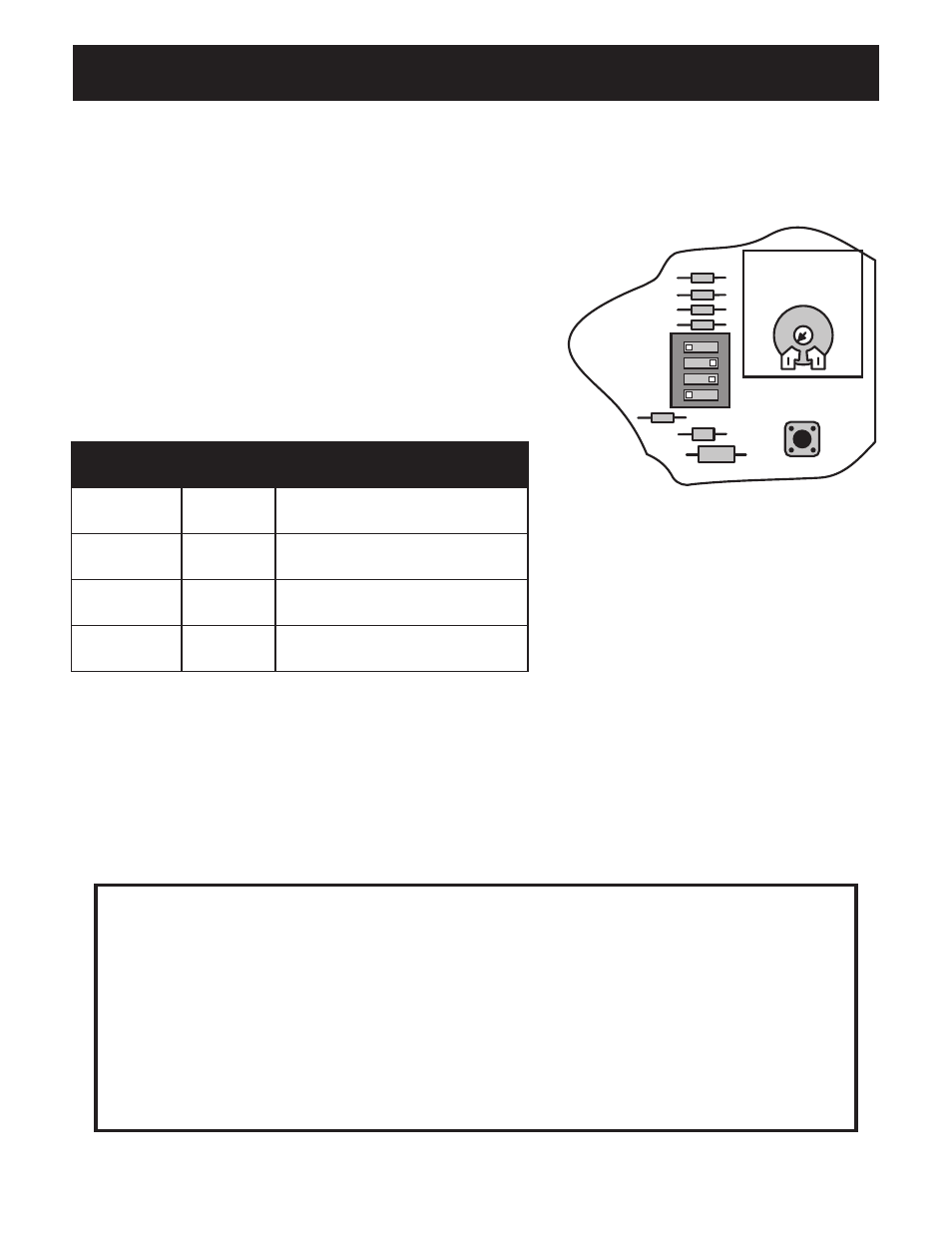

CONTROL BOARD SETTINGS FOR DUAL INSTALL
SEQ1
SEQ2
ON
OFF
Open & Close Simultaneously
ALWAYS USE THIS FOR SLIDE GATE
OFF
ON
N/A
NOT APPLICABLE
ON
ON
N/A
NOT APPLICABLE
OFF
OFF
N/A
NOT APPLICABLE
1234
ON
OBSTRUCT
SENS.
PULL/PUSH
SEQ1
SNGL/DUAL
SEQ2
MIN
MAX
LEARN
VOLTAGE READINGS
18 Vac Transformer
18.0 to 22.0 Vac
10 W Solar panel (single)
18.0 to 22.0 Vdc
In FULL SUN — measure voltage with the Solar Panel Disconnected.
12 V, 7 amp hour Battery
12.5 to 13.5 Vdc
Measure voltage at battery terminals with battery disconnected
Charging circuit
12.0 to 14.8 Vdc
Measure voltage at battery terminals with battery connected
