CAUTION AUTOMATIC GATE STAND CLEAR 1-800-543-GATE
®
Separate PVC Conduits
for power and control wiring.
Roller Guard
Roller Guard
Conduit through the concrete pad.
Separate PVC
Conduits for power
and control wiring.
Roller Guard
Roller Guard
Roller Guard
Conduit around the concrete pad.
CAUTION AUTOMATIC GATE STAND CLEAR 1-800-543-GATE
®
Operator
Operator
Roller Guard
Run the low voltage wire and receiver wire through PVC conduit into the slider unit to protect it from
damage. PVC conduit should be used for accessory wires such as loop detectors, key pads, card readers
or any other entry device.
WARNING
WARNING
3/8"-16x3" Carriage Bolts
3/8" Lock Washers
& Nuts
48" x 2" sq. Legs
Step 1
Mount the legs on the slide gate
operator using the 3/8” x 3” Carriage
Bolts, 3/8” Flat Washers, 3/8” Lock
Washers, and 3/8” Nuts.
See Illustration A.

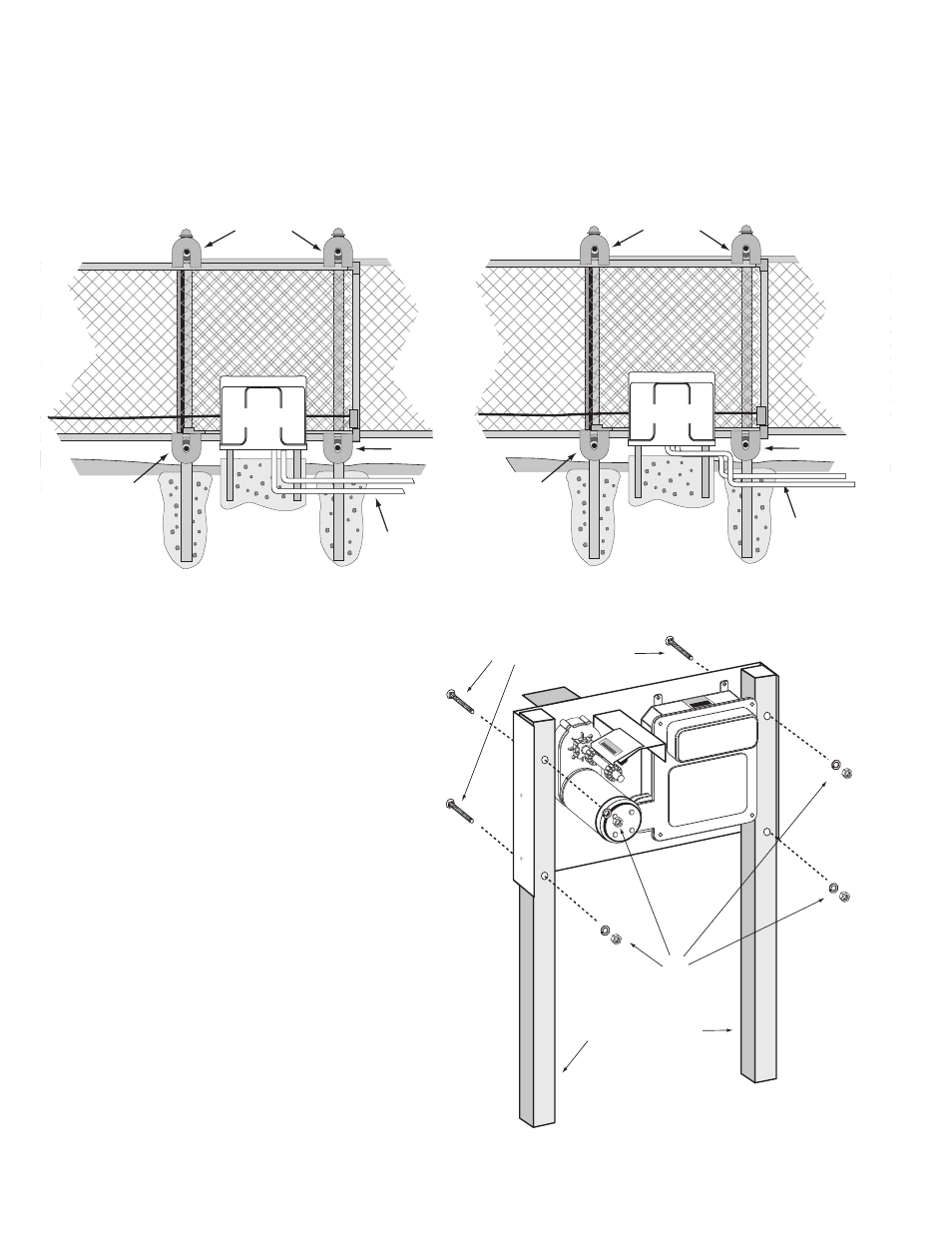

Illustration A
Recommended Wiring and Use of Conduit
Mounting the Legs on
the Gate Operato r
