CONTROL BOARD SETTINGS
1234 ON
OBSTRUCT
SENS.
PULL/PUSH
SEQ1
SNGL/DUAL
SEQ2
LEARN
DIP switches
MIN MAX
RED
BLK
ORG
BL
U
GRN
CLS EDG
OPN EDG
RED
GRN
ORG BL
U
WHT
BLK
ORG
BL
U
GRN
CLS EDG
OPN EDG
LEARN
AUTOCL
OSE
INERTIA
STATUS
PULL/PUSH
SNGL/DU
AL
SEQ1
SEQ2
MIN
MAX
MIN
MAX
OFF
60
120
BATT +
–
OBSTRUCT
SENS.
RCVR
R B G
ALARM
SECOND OPERA
TOR
FIRST OPERA
TOR
POWER IN
18VAC SOLAR
~ ~ – +
ACCES
SORY
PWR. SW
.
DIP Switches

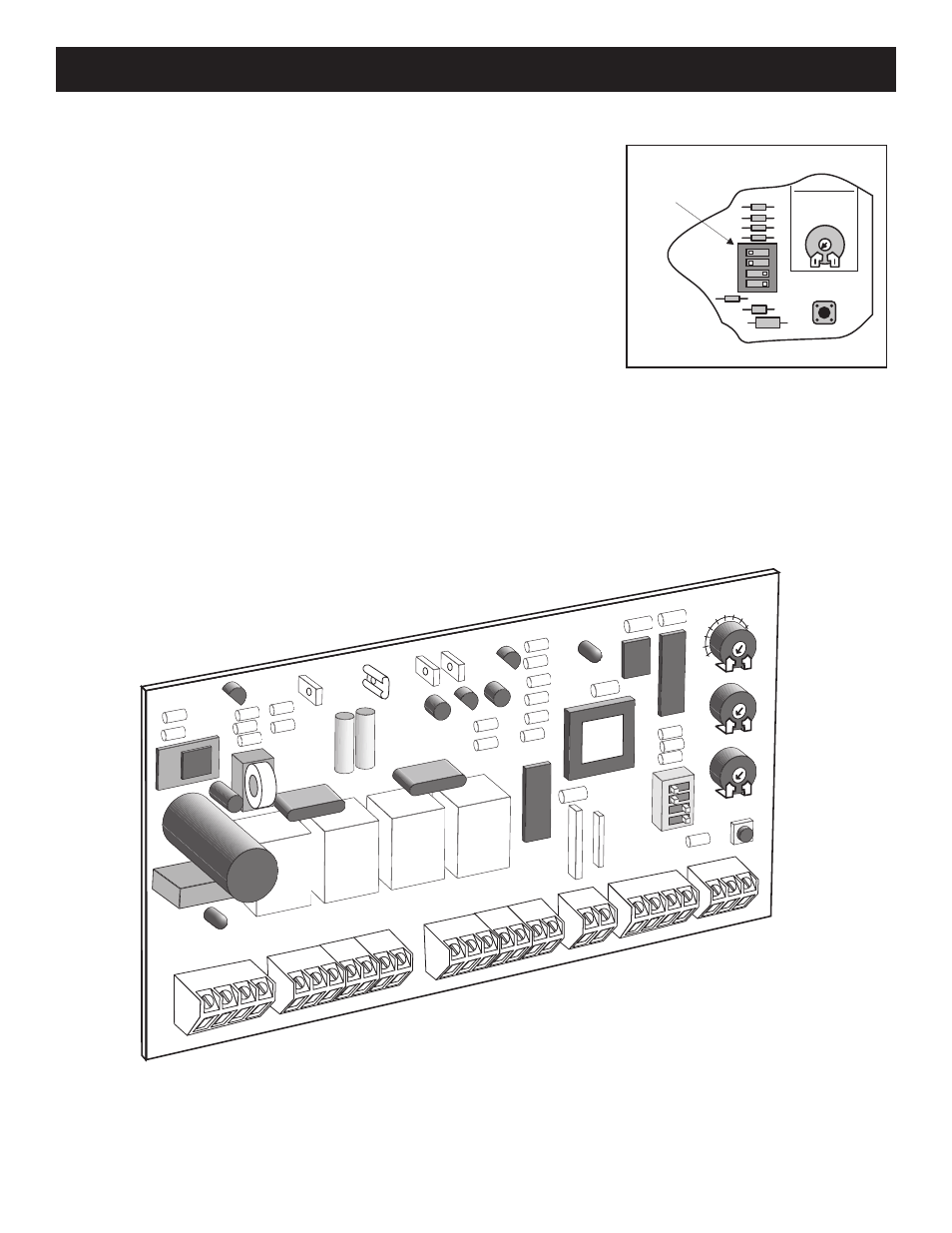

The four DIP switches on the control board match the operator with
the type of gate on which it is mounted. For example, gates may
open right to left or left to right. Prior to packaging, the SL-2000B
series control board was configured for a single slide gate that
opens right to left as viewed from inside of the property. If your
gate type matches this configuration, you DO NOT need to adjust
the DIP switches. Proceed to the Potentiometers section on the
next page.
NOTE: To change the DIP switch settings, you must turn the con-
trol box power switch OFF; move the switch; then turn the power
back ON. Use a small screwdriver to move the switches.
PULL/PUSH: Set to PULL for slide gates that open RIGHT to LEFT
[factory setting]; PUSH for slide gates that open LEFT to RIGHT.
SNGL/DUAL: Set to SNGL for a single gate leaf [factory setting];
DUAL for dual gate leaves.
