18
SL-2000B Instruction Manual 04.26.12
DUAL GATE SYSTEM INSTALLATION
(4) 3/8”-16 x 2” diameter U-Bolts
and (8) 3/8” Serrated Nuts (RB210)
(2) Quick Release Pins (211IH)
(2) Chain Master Links
(RB208)
(4) 1/4”-20 x 1/2” Screws
(RB226)
(2) Chain Brackets
(204IH)
Operator Housing
(A207)
32’ Drive Chain
(RB207)
Battery Cable
60’ Power Cable
w/Strain Relief
Second Gate Operator
Battery
(2) 2” square x 48” long legs (206IH)
(4) 3/8” -16 x 3”
Carriage Bolts (RB659)
(4) 3/8”
Nuts
(RB668)
(4) 3/8”
Lock Washers
(RB641)
The SL-2200B comes with
a battery and control box.
Install the second gate operator in the same manner as the Single gate operator starting on page 14 of
this manual. The second gate preparation and wiring of the second (auxiliary) operator follow on the next
two pages. Once the second gate operator is installed, Set the DIP switches for DUAL gates and the order
in which the gates open (“sequencing”). Setting the Control Board for Dual Gate Installations begins
on page 18.

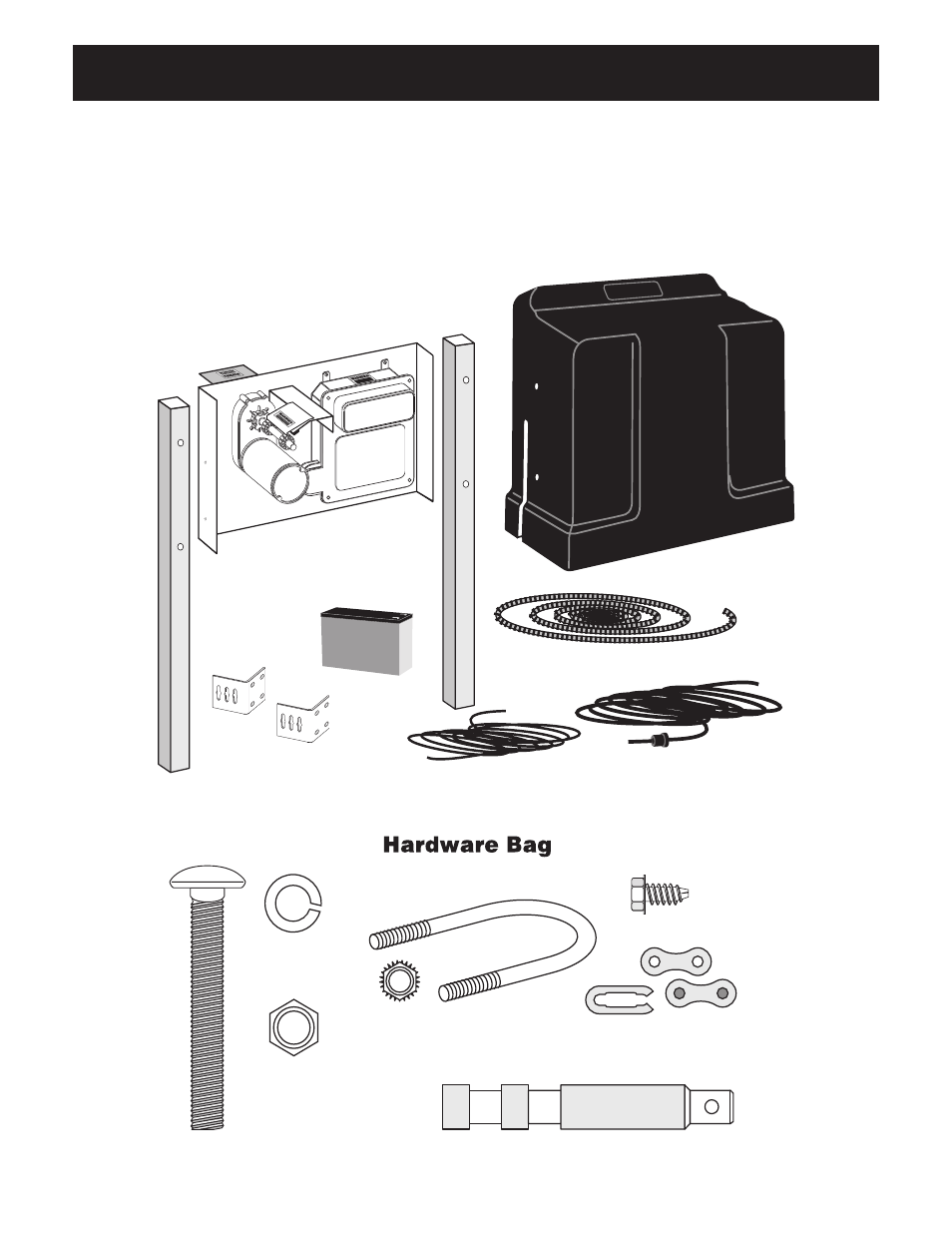

Second Gate (Auxiliary) Operator Parts & Hardware
(2) 2” square x 48” long legs
