Freeze-dryer EPSILON 2-6 LSCplus
2 Layout and mode of operation
Version 10/2012, Rev. 1.6 of 16/12/2014 • sb
15
Translation of the original operating manual
29 Cooling water connection
(see detailed view)

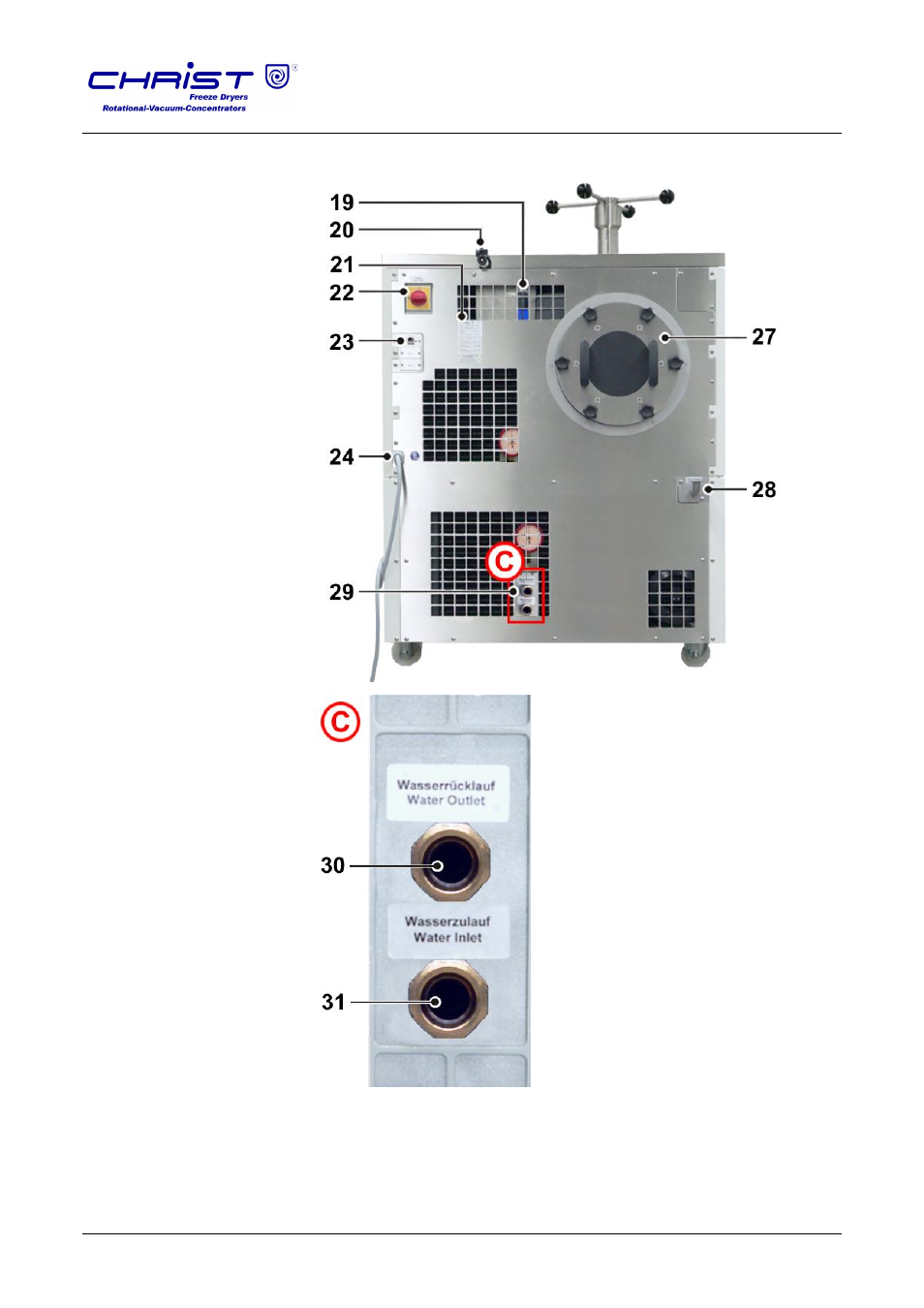

Fig. 7:
Rear view of a water-cooled
freeze-dryer
Water-cooled freeze-dryer:
30 Connector for the cooling
water outlet
31 Connector for the cooling
water inlet
Fig. 8:
Detailed view C -
cooling water connections
