Camaro 160086
Xa Coilovers

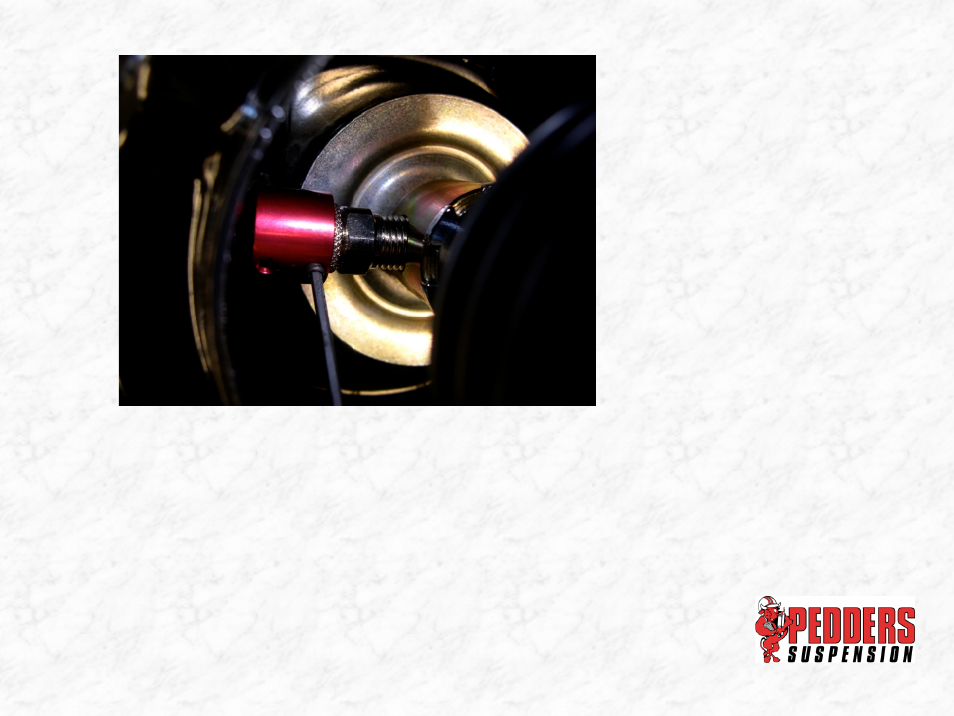

Place the OEM upper perch and insulator in place. Slide the cable
without the sheath into the adjuster knob and lock down the set
screw. Slide the sheath in place and lock down the external knob.
Add the gold washer and tighten down the strut nut.
If you have good
light and patience
you can install the
cable adjuster with
the coilover loosely
assembled. With the
coil sitting in place,
set the adjuster cap
to the coilover side
adjuster.
