Camaro 160086
Xa Coilovers
6.

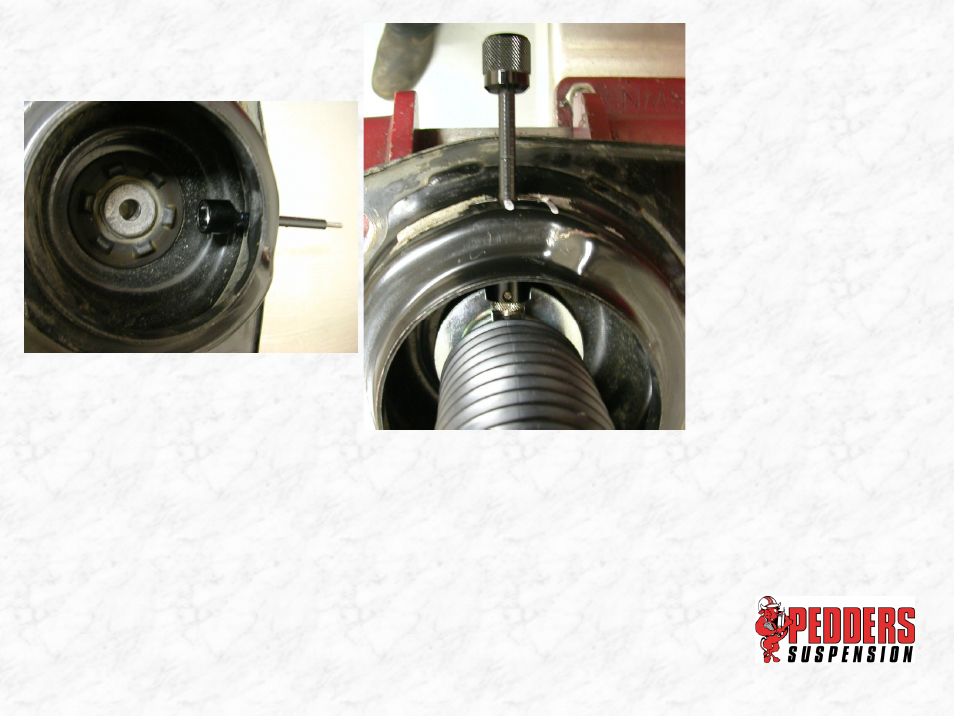

With a center punch, make a starting mark so the drill bit will
not wonder. Use a 8.5mm drill (3/8 inch) and drill the hole. You
may need to drill a 1/8” starter hole if your drill bit is not
perfectly sharp.
7.
Using the Allen key provided in the kit, loosen the adjusting
knob on the end of each flexible extension, them remove it
from the cable
8.
Place the cable thru the hole , then secure the outer red knob
with the Allen key provided.
Don’t forget to
LocTite the set
screws.
THEY ALL NEED
TO BE TIGHT!
