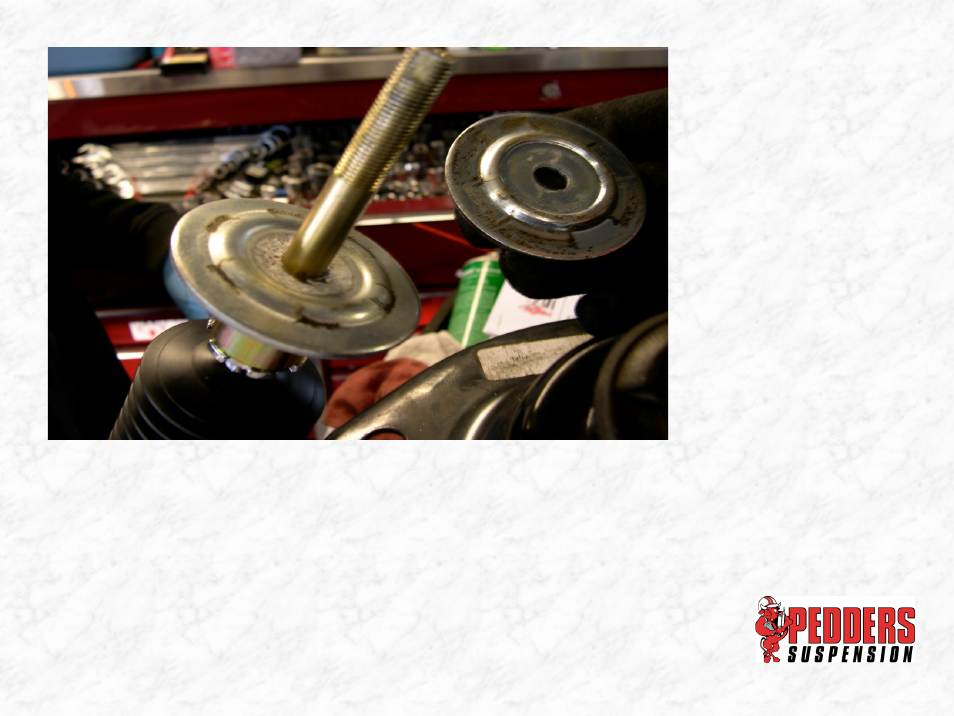

5. The picture shows the lower washer that must be transferred to the Xa
assembly. Note there is a top and bottom to this washer as well as the
washers on top of the rear strut assembly. Make sure you put them back
in the correct order, and direction! Silver on the bottom and gold on the
top. NOTE: THE WASHERS ARE DIFFERENT AND THERE IS AN UP AND
DOWN. YOU WILL BE ABLE TO IDENTIFY THE POSITIONING OF THE
WASHERS BY THE WITNESS MARKS ON THEM FROM THE STRUT BUSHING
Disassemble the OEM Rear Strut
1. With the rear upper struts
labeled left rear and right
rear, we have to transfer the
upper mounts, and drill a
hole for the adjusting
damper cable.
2. Mark the upper strut mount
washers
3. Use a spring compressor to
compress the coil, then
disassemble the OEM strut
assembly.
4. The “ Aussie” is a little
different. Stand 90 degrees
from the strut. Have nothing
in front of or behind the
strut. Place one of your feet
on top of the coil. With an
impact gun, with small
bursts, remove the nut until
the strut assembly comes
apart. PLEASE NOTE THE
STRUT ASSEMBLY MAY
TRAVEL 2 FEET FROM THE
SPRING.
