Page 17 of 26

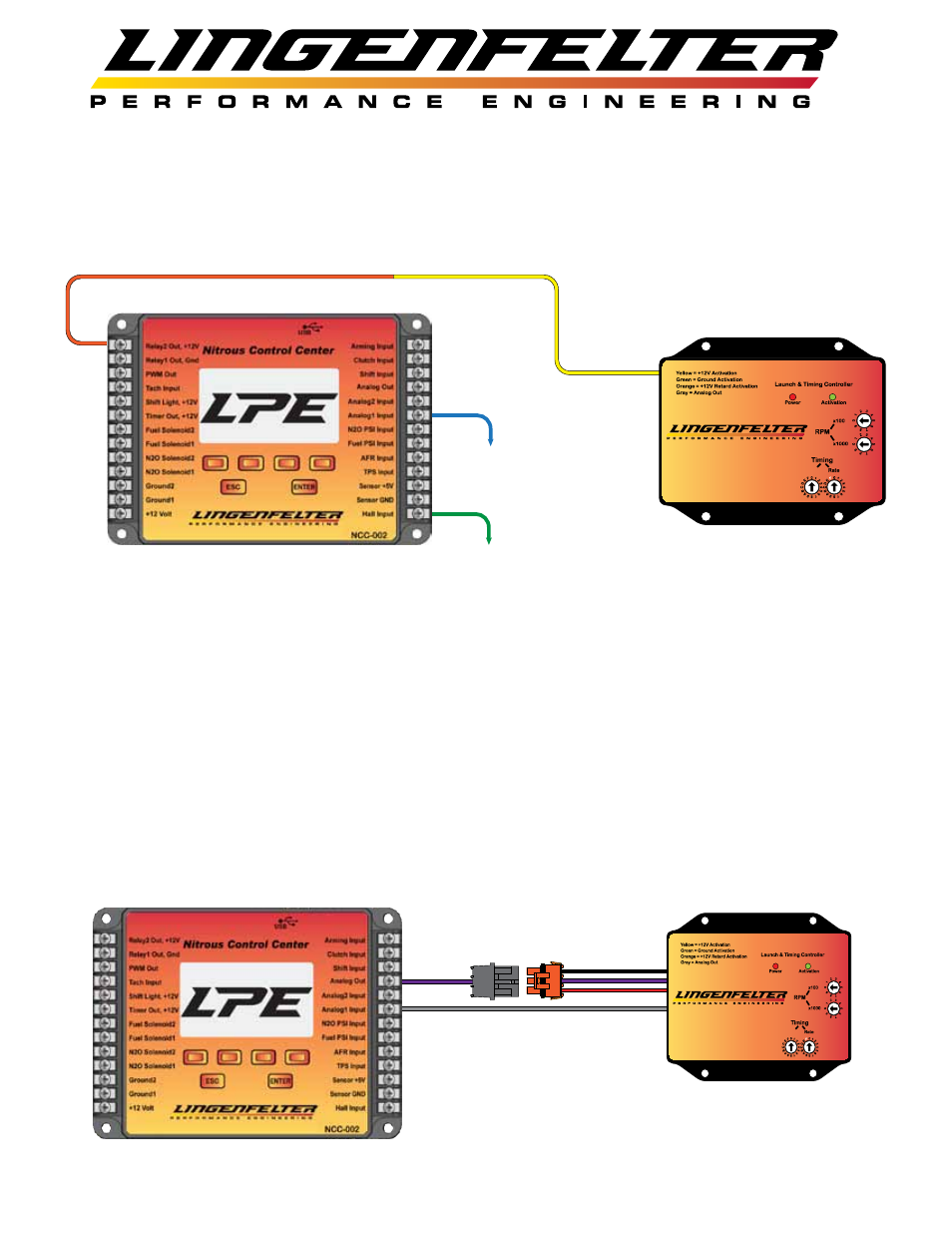

Lingenfelter NCC-002 Nitrous Control Center Connected to the

LNC-2001 Launch Control Module for Progressive Timing Retard

A
B
C

A
B
C

LNC-2001

Red = MAP +5V
Black = MAP/Linear Ground
Purple = MAP/Linear Signal

F

= Linear Mode

.2 Volt = 0*
4.8 Volt = 15*

Max Retard

Log spark retard data from LNC-2001 to

Analog1 Input (optional)

NCC-002 Analog

Output (Purple)

PN: L480320000

LNC-2001 MAP/Linear

Input Harness

LNC-2001 Receiving +12V Activation Input from the

Lingenfelter NCC-001 or NCC-002 Nitrous Control Center

+12V LNC-2001 Activation Input (Yellow)

Hall MPH

Input

Use this configuration to allow the NCC-001 or NCC-002 to activate or deactivate

the LNC-2001’s 2-step feature based on the vehicle speed and/or clutch.

LNC-2001

Red = MAP +5V
Black = MAP/Linear Ground
Purple = MAP/Linear Signal

F

= Linear Mode

.2 Volt = 0*
4.8 Volt = 15*

Max Retard

Clutch Position

Sensor Input

To allow a nitrous or other controller to control the amount of timing retard:

• Set the LNC-2001 to Linear Mode (F on the Rate dial)

• Set the maximum desired timing retard with the Max Retard Setting on the LNC-2001

• Connect the analog output from your controller to the LNC MAP/Linear Input harness connector

(using the universal WeatherPak connector kit, PN L480320000)

• This allows the nitrous or other external controller to control the amount of timing retard while

still allowing the LNC-2001 to limit the timing retard to the user set Max Retard setting.

Progressive Nitrous Timing Retard
