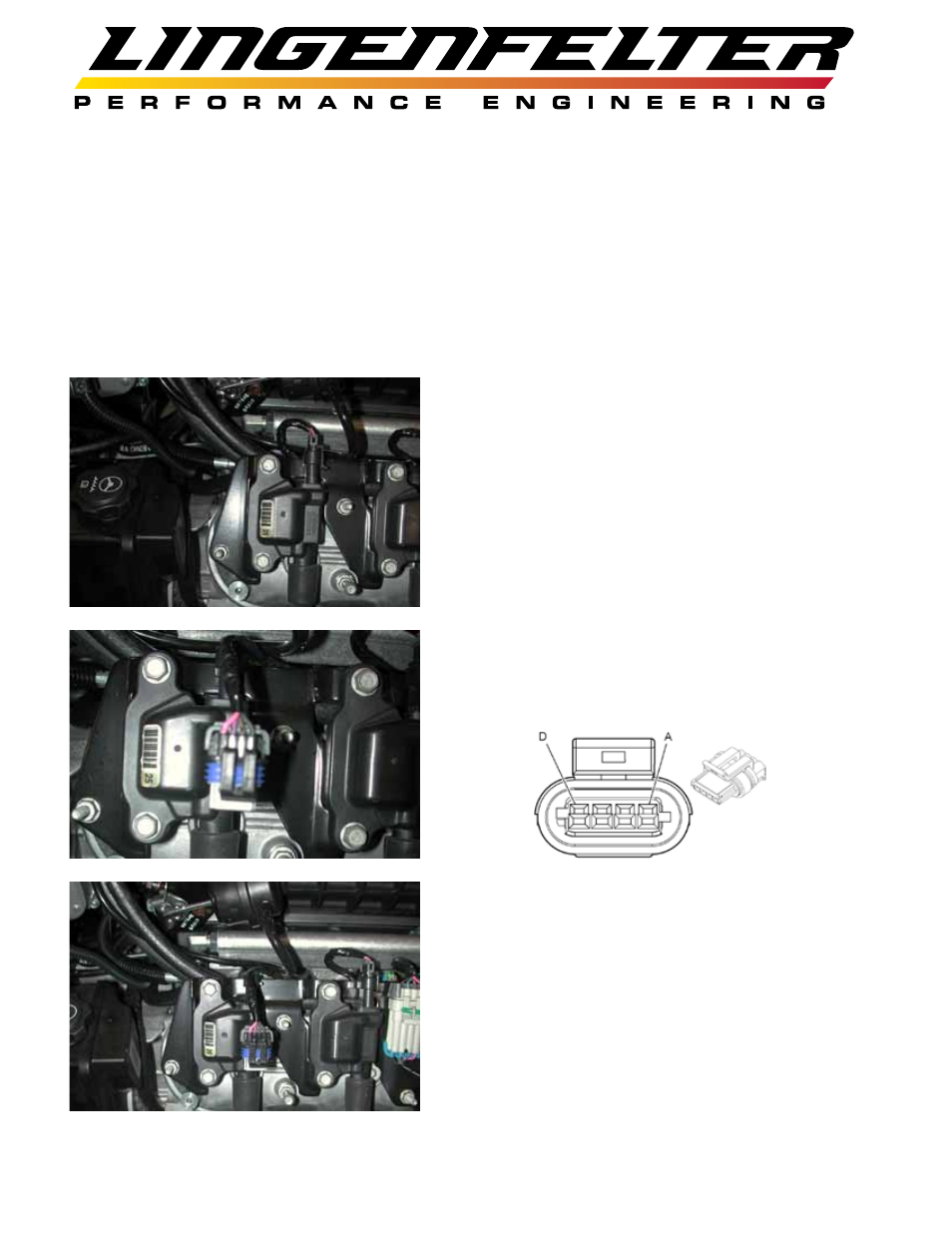

1. Locate coil pack one (1) on the driver side front

of the engine. The ECM on 2010 and newer

Camaros (and 2007-2012 C/K Truck) does not

contain the signal wire that is needed for the

LPE RPM-003 activation switch.

2. Remove the coil electrical connector. The

purple wire in pin C of this electrical connector

is the wire that must be used for input signal to

the RPM switch.

3. Connect to this wire using a 2-1 butt connector

or equivalent. Make sure to heat shrink the

wires.

2010-2013 Camaro and

2007-2013 C/K Truck Instructions

(If connecting to coil pack wire instead of ECM)
